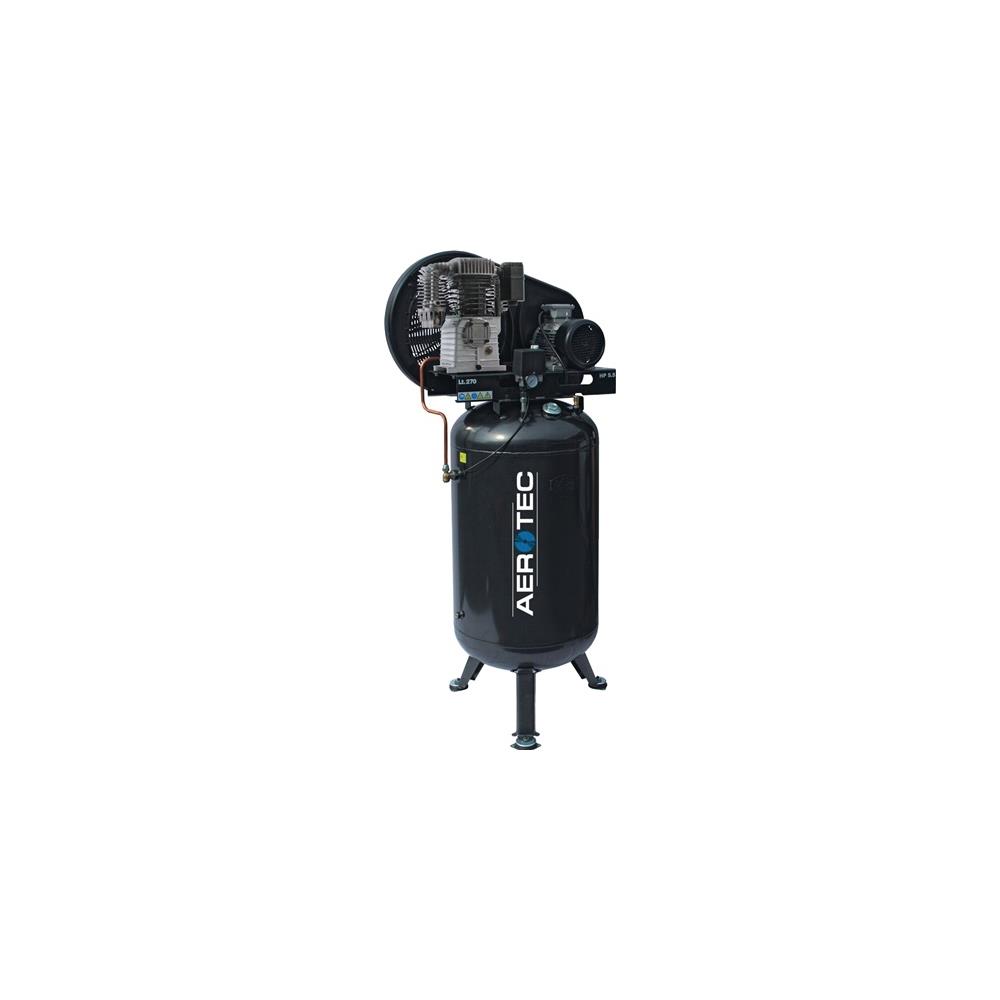

AEROTEC Compressor Aerotec N59-270 PRO 690 l/min 10 bar 4.0 kW 400 V 50 Hz 270 l
Sale ends in:
Compressor Aerotec N59-270 PRO 690 l/min 10 bar 4.0 kW 400 V 50 Hz 270 l
Compressor Aerotec N59-270 PRO 690 l/min 10 bar
PRODUCT DESCRIPTION
Compressor with space-saving, free-standing compressed air tank
– Low-speed 2-cylinder in-line assembly, highly effective, oil-lubricated, 2-stage
– Condensate drain via ball valve
– Subject to inspection by an AIA
– Sound pressure level 97 LWA/78 dB Further technical information:
– Length: 800mm
– Subject to audit: Yes Supply includes vibration damper set to ensure vibration-free operation
Suction capacity: 690 l/min
Delivery quantity: 520 l/min
Volume of container: 270 l
Operating pressure: 10 bar
Nominal input power: 4.0 kW
Mains voltage: 400 V / 50 Hz
Weight: 140 kg
Width: 595 mm
Co
Scope of delivery:
1,00 ST Compressor Aerotec N59-270 PRO 690 l/min 10 bar 4.0 kW 400 V 50 Hz 270 l
Delivery quantity: 520 l/min
Volume of container: 270 l
Operating pressure: 10 bar
Nominal input power: 4.0 kW
Mains voltage: 400 V / 50 Hz
Weight: 140 kg
Width: 595 mm
Co
Scope of delivery:
1,00 ST Compressor Aerotec N59-270 PRO 690 l/min 10 bar 4.0 kW 400 V 50 Hz 270 l
