AIR HYDRAULIC JACK WITH EXTREMELY HIGH LIFTING CAPACITY

Login to see prices

Minimum height of 425 mm
Maximum height of 725 mm and up to 1025 mm with the included extensions
Designed for heavy-duty, intensive commercial use
Hard chromium plated ram for long life

SAFETY
Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
ERGONOMICS
Ergonomic handle with push buttons
EXTEND LIFTING HEIGHT
Extend maximum lifting height with 2 extensions (100 / 200 mm) – up to 1025 mm

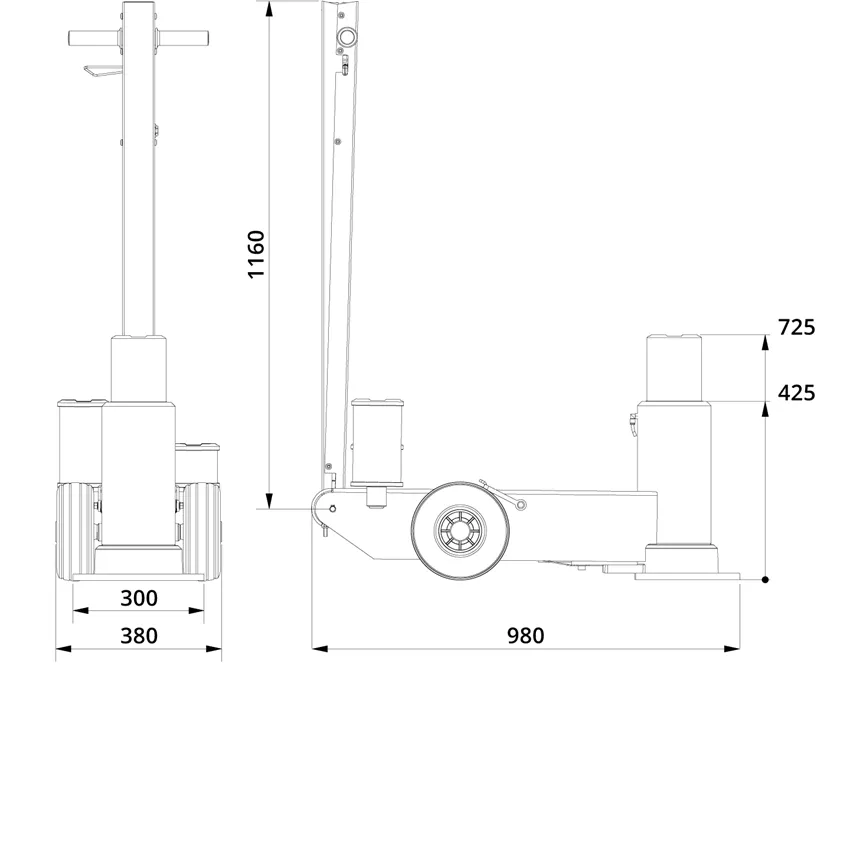

Capacity: 65 t
Min height:425 mm
Max height:725 mm
Frame length:980 mm
Handle length:1160 mm
Width:300 mm
Width with wheels:380 mm
Air supply: 9 – 10 bar
Air consumption: 350 – l/min
Weight: 138 kg
Item number: 4525000
