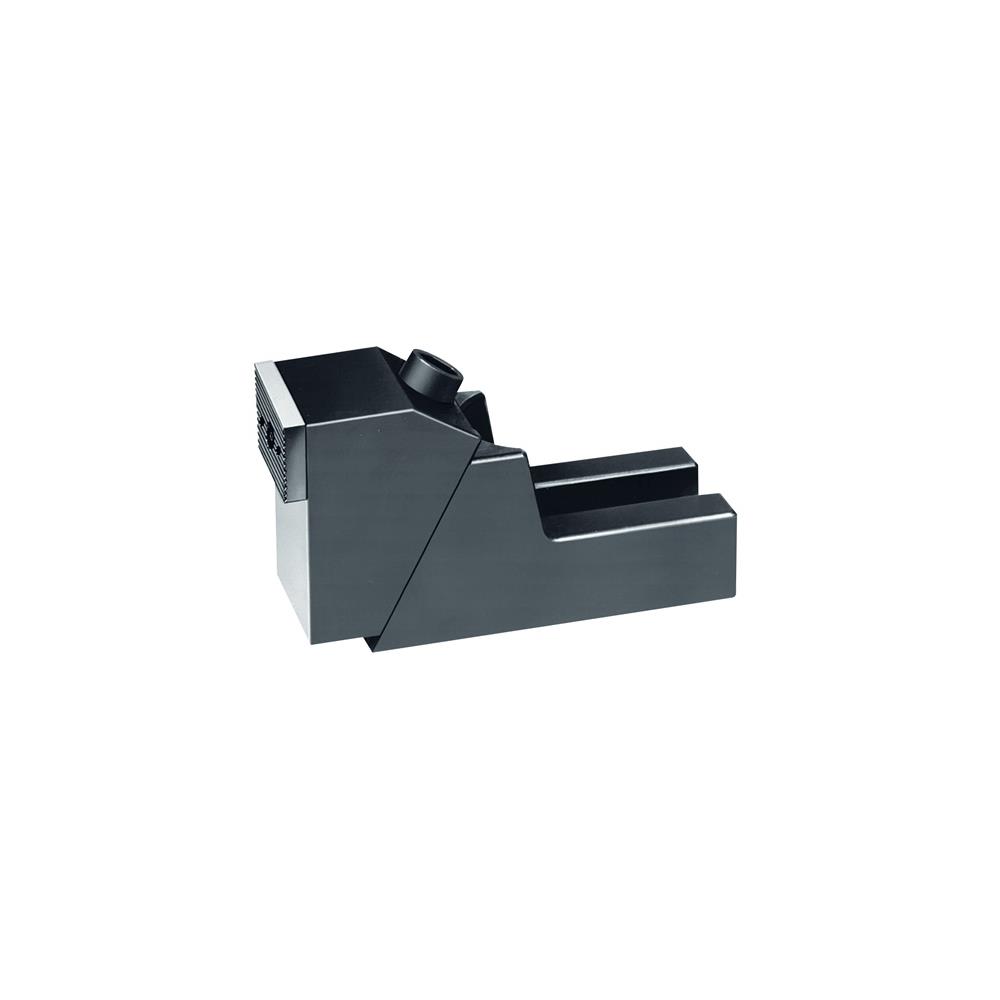

AMF Extra strong clamping jaw no. 6497 12/14/16/18 mm

Login to see prices

SKU:4020772073213

Reversible clamping jaws
– High design with precise prism guide
– Base unit made of malleable cast iron
– Clamping jaws, hardened steel, case-hardened
– With smooth side for machined work pieces and corrugated side for raw clamping surfaces
– Application: Thanks to the large clamping area, these sturdy clamping jaws are suitable for the lateral clamping of high work pieces. The use of two clamping bolts is recommended for attachment of the stabiliser jaw to the machine table. Depending on the groove width, screws for T-slots (DIN 787) – two pc. per clamping jaws – must be ordered separately as mounting screws. Further technical information:
– H max.: 99mm
– b1: 19mm
– h1: 38mm
– l: 179mm Supply without mounting screws
