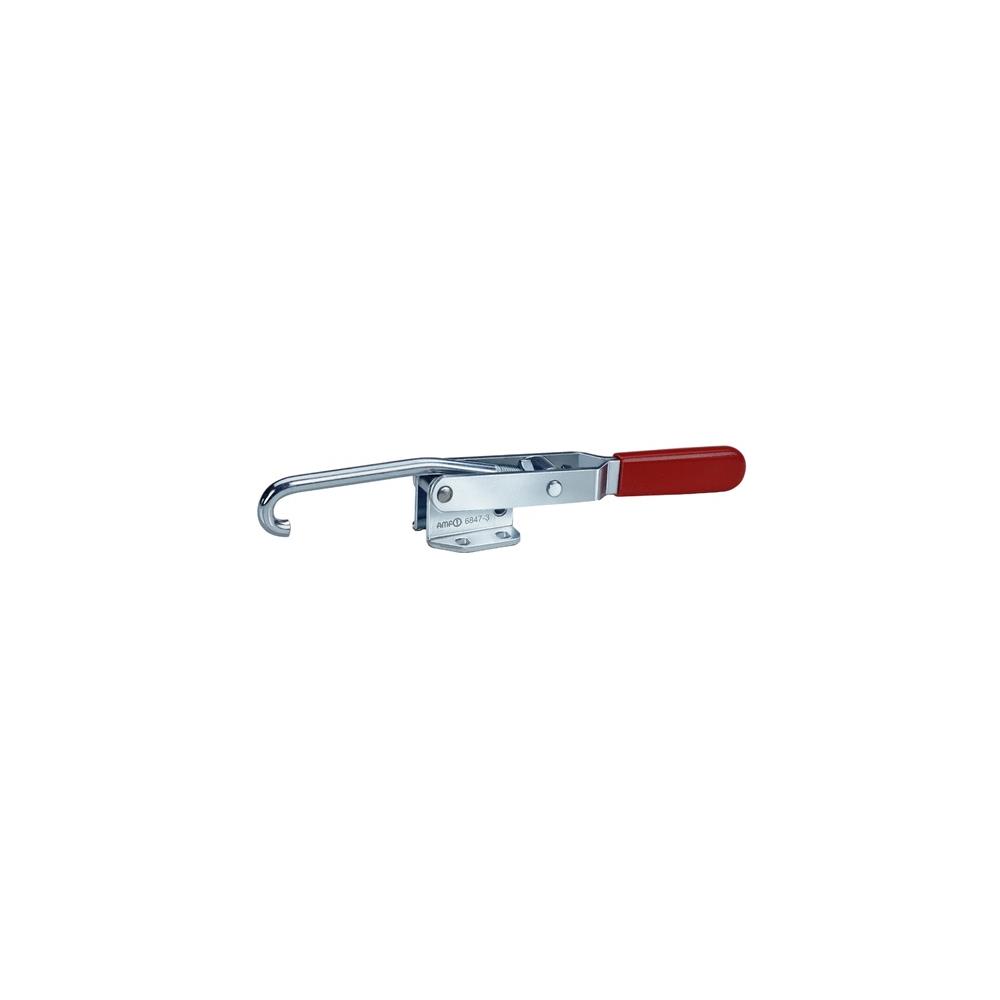

AMF Hook type toggle clamp no. 6847 size 3 horizontal

SKU:4020772094546
Sale ends in:

Hook type toggle clamp no. 6847 size 3 horizontal

PRODUCT HIGHLIGHT
Hook type toggle clamp no. 6847 size 3

PRODUCT DESCRIPTION

Galvanised

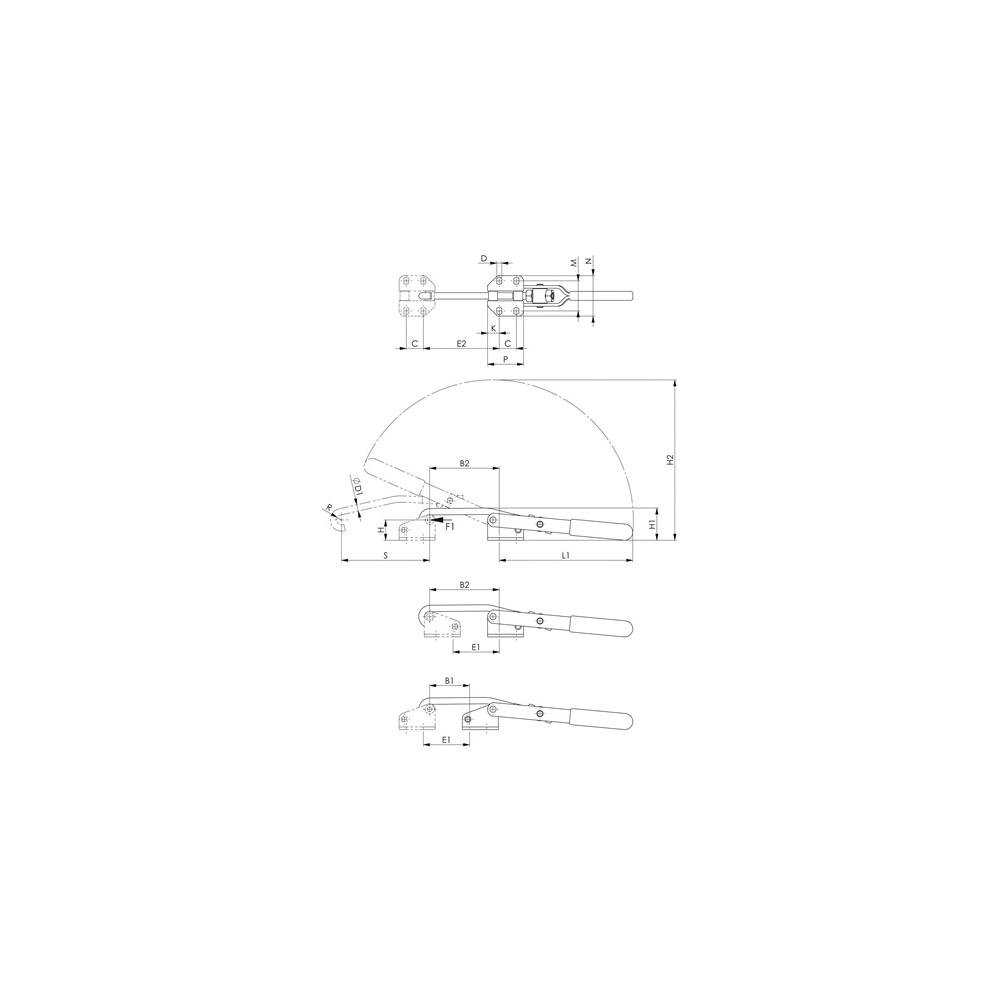

– Passivated Further technical information:
– S: 98mm
– B1: 32-44mm
– C: 19mm
– B2: 65-77mm
– E2: 72-84mm
– D: 7.1mm
– E1: 39-51mm
– G: 5.5mm
– L1: 123.5mm
– H1: 36mm
– H2: 181mm
– Length of arm: 123.5 mm
– L: 40mm
– Bore Ø: 5.5mm
– K: 13mm
– R: 5,5mm
– M: 31.5-35.5mm
– H: 22.7mm
– N: 45mm

ADDITIONAL INFORMATION
Size: 3
Traction: 3 kN
Adjustment track: 12 mm
Internal drilling distance: 39-51 / 72-84 mm
Height tensioned: 36 mm
Height opened: 181 mm
Counter catch height: 22.7 mm
Brand: AMF
Material: Galva
Datasheet
Datasheet

Scope of delivery:
1,00 ST Hook type toggle clamp no. 6847 size 3 horizontal
