AMF Hook type toggle clamp no. 6848H size 4 horizontal
Sale ends in:
Hook type toggle clamp no. 6848H size 4 horizontal
Hook type toggle clamp no. 6848H size 4
PRODUCT DESCRIPTION

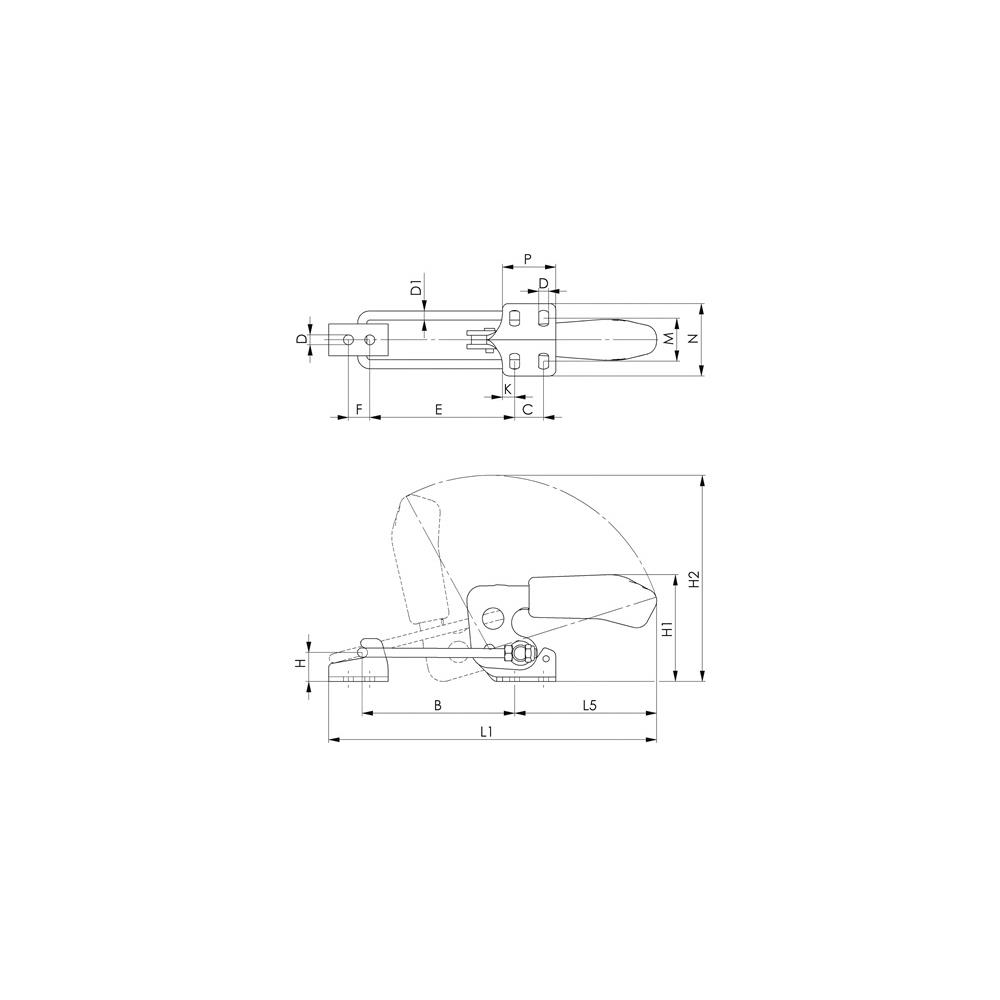

Horizontal Further technical information:
– L5: 111mm
– C: 32mm
– D: 8.5mm
– E max.: 123mm
– L1: 209-273mm
– E min.: 59mm
– H1: 94,5mm
– H2: 171,5mm
– Length of arm: 111mm
– B max.: 130mm
– Bore Ø: 8.5mm
– F: 19mm
– B min.: 66mm
– P: 53,5mm
– K: 9.5mm
– M: 35.0-46.0mm
– H: 26mm
– N: 64.3mm
– D1: 8mm Supplied with counter catch
