Hook type toggle clamp no. 6848V size 3 vertical
Hook type toggle clamp no. 6848V size 3
PRODUCT DESCRIPTION

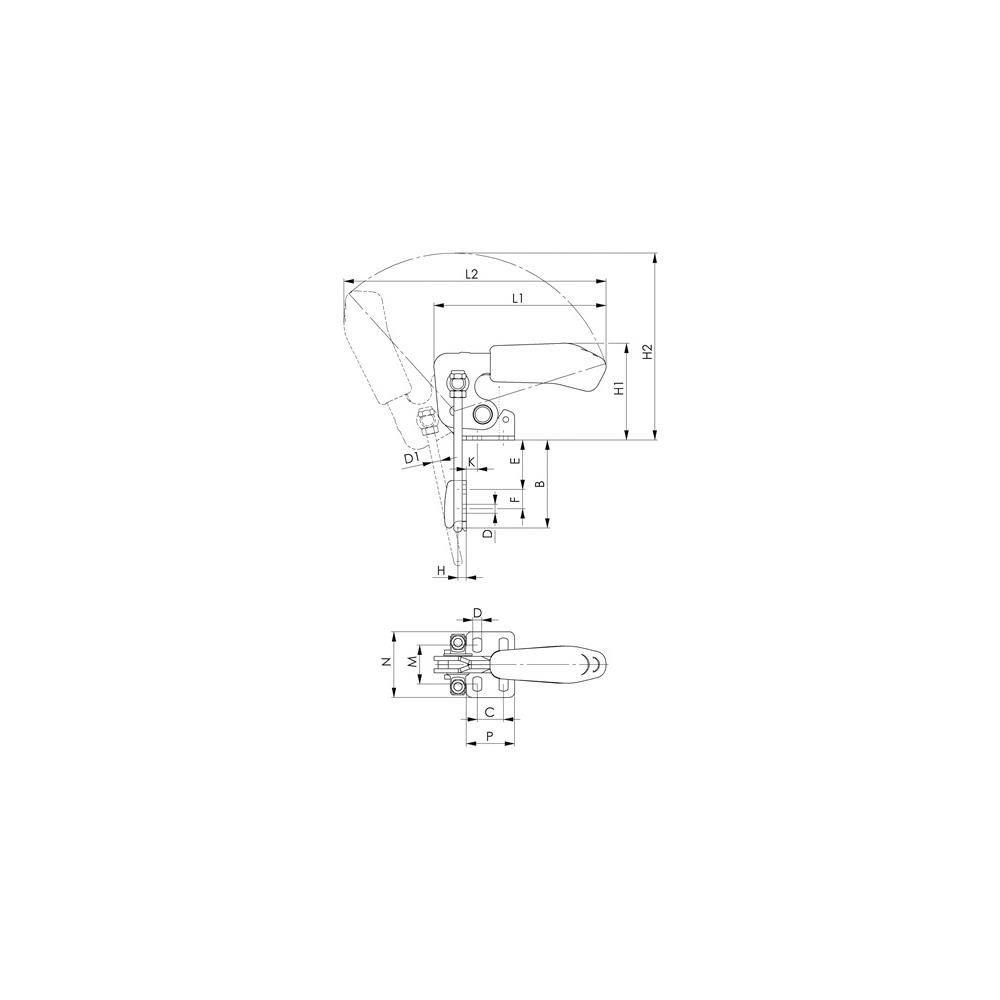

Vertical Further technical information:
– C: 19mm
– D: 6.5mm
– E max.: 36mm
– G: 25mm
– L1: 125mm
– E min.: 7mm
– H1: 70mm
– H2: 136mm
– Length of arm: 125 mm
– B max.: 64mm
– Bore Ø: 6.5mm
– F: 14mm
– B min.: 34,5mm
– P: 35mm
– K: 8mm
– M: 24.5-32.0mm
– H: 6mm
– N: 48mm
– D1: 6mm Supplied with counter catch
