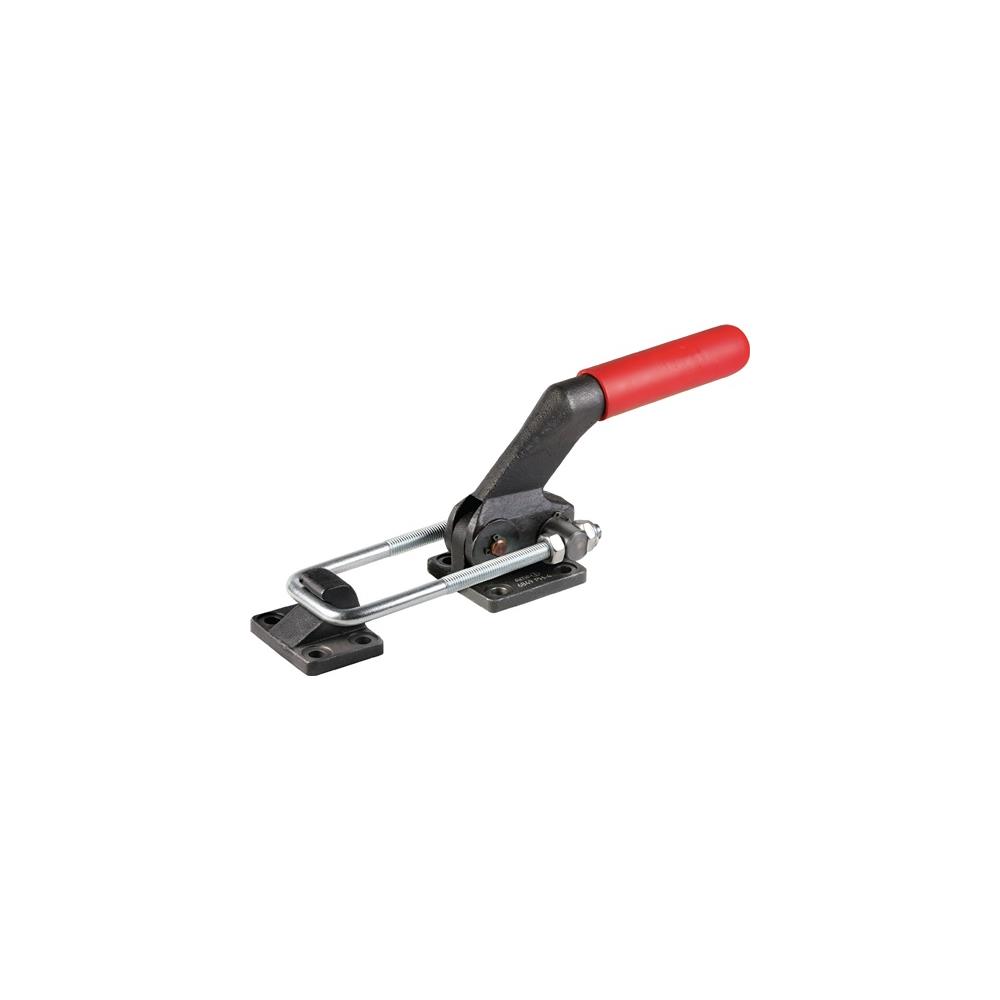

AMF Hook type toggle clamp no. 6849PH size 4 horizontal heavy-duty

Login to see prices

SKU:4020772093846

Heavy-duty
– For high holding forces
– Bolts hardened and ground, permanently greased, fitted with retaining rings in bearing bushes
– The clamping bolt is positioned centrally with circlip rings
– The foot, lever arm, and counter catch are made of burnished cast steel
– Clamping brackets, clamping bolts, and nuts are tempered and galvanised Further technical information:
– S: 44mm
– C: 45mm
– D: 10mm
– G: 8.5mm
– L1: 130mm
– H1: 122mm
– Length of arm: 130 mm
– L: 68mm
– Bore Ø: 8.5mm
– F: 28mm
– B: 42-107mm
– Property: Heavy-duty
– K: 12mm
– E: 24-90mm
– M: 45mm
– H: 26mm
– N: 64mm Supplied with counter catch
