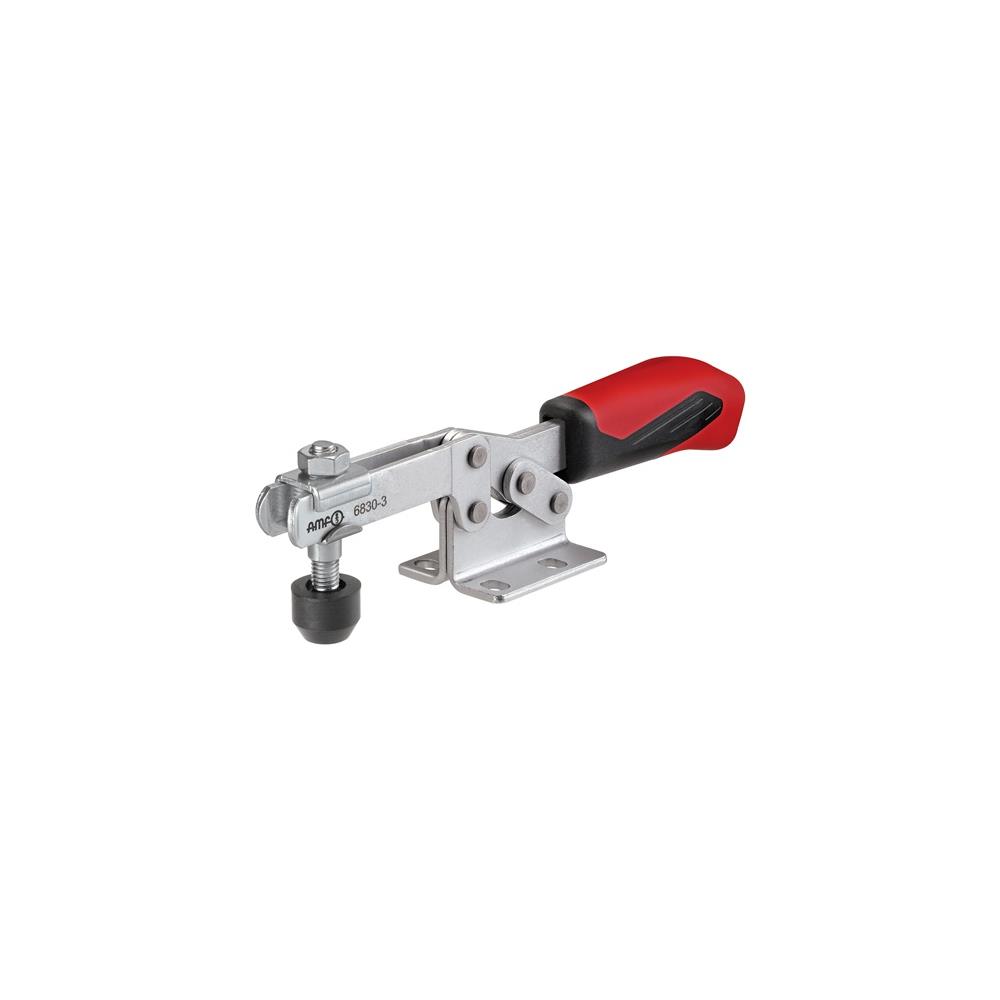

AMF Horizontal clamp no. 6830 size 3 horizontal base

Login to see prices

SKU:4020772093037

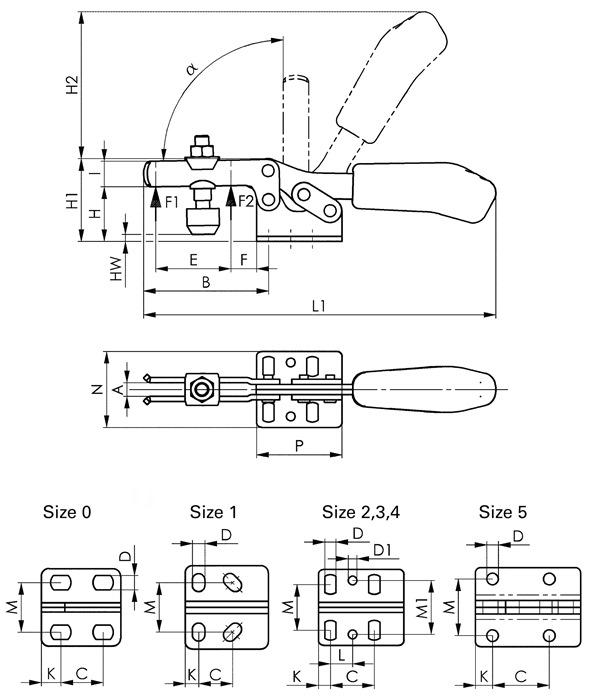

With horizontal foot Further technical information:
– C: 25.7mm
– D: 6.5mm
– Clamping screw: M8 x 45
– HW min.: -2mm
– L1: 206mm
– F1: 1.8kN
– Overall height: 48mm
– L: 13mm
– a*: 90°
– Design: Horizontal foot
– F: 14mm
– P: 50mm
– K: 7mm
– A: 8mm
– HW max.: 9mm
– H1: 48,5mm
– H2: 86mm
– M1: 31.6mm
– I: 15mm
– F2: 2,5kN
– B: 73mm
– E: 38mm
– M: 22-31.8mm
– H: 32mm
– N: 45.5mm
– Overall length: 206mm
– D1: 5,1mm
