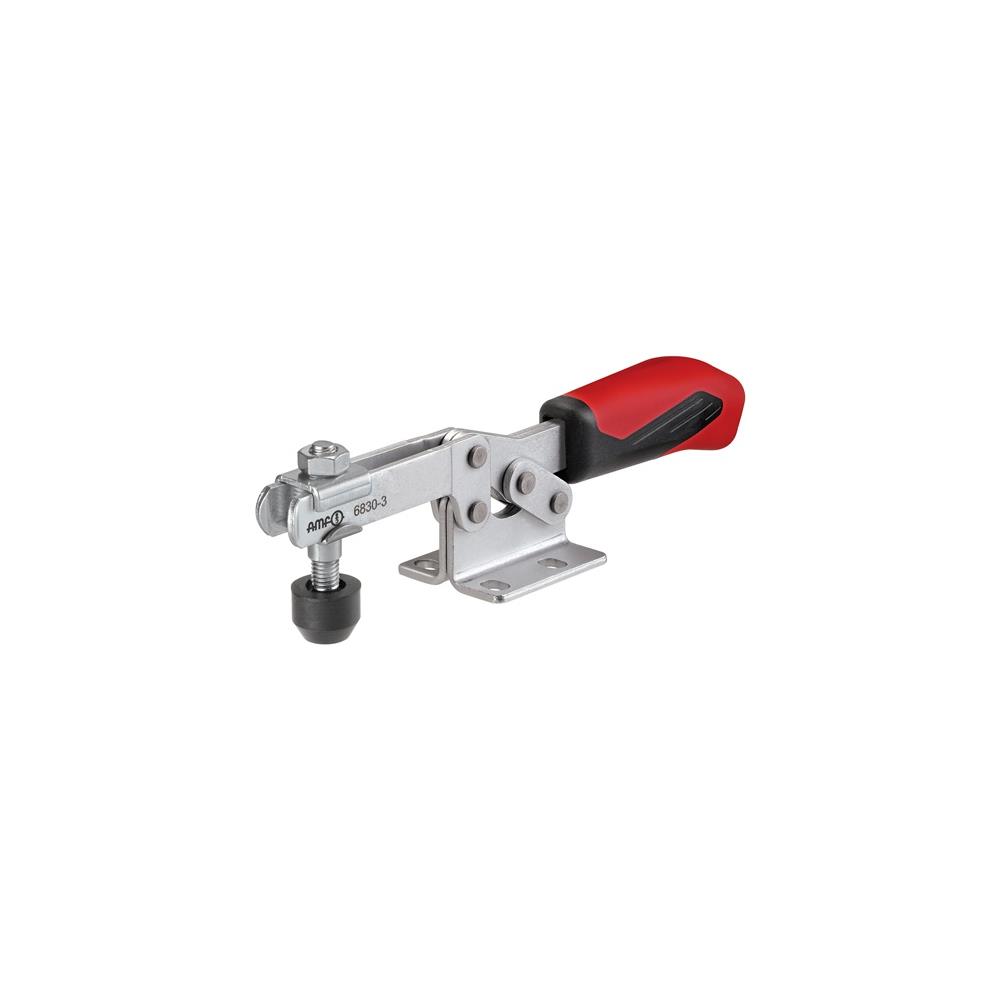

Horizontal clamp no. 6830 size 5 horizontal base
Horizontal clamp no. 6830 size 5 horizontal base
PRODUCT DESCRIPTION

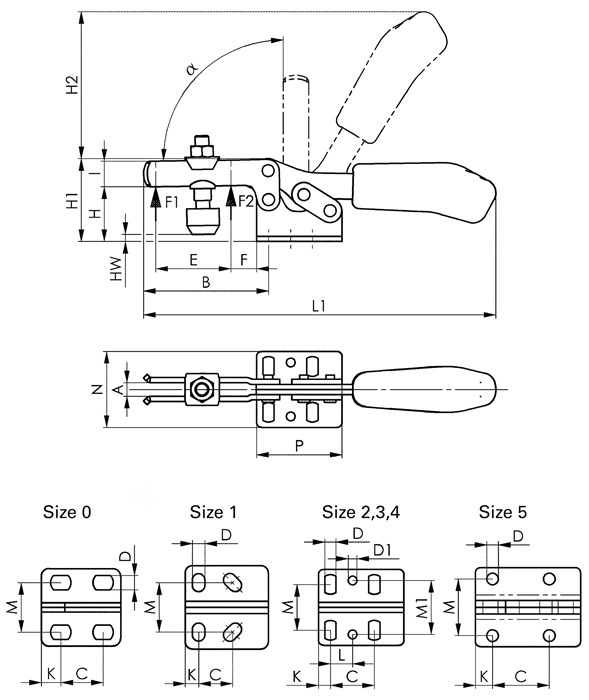

With horizontal foot Further technical information:
– A: 10mm
– C: 41.5mm
– D: 8.5mm
– Clamping screw: M8 x 65
– HW min.: +1,7mm
– L1: 321mm
– HW max.: 25mm
– H1: 73mm
– F1: 3kN
– H2: 128mm
– Overall height: 73mm
– a*: 90°
– Design: Horizontal foot
– I: 25mm
– F2: 5kN
– F: 16mm
– B: 123mm
– P: 77mm
– K: 12.5mm
– E: 78mm
– M: 41.5mm
– H: 46mm
– N: 58mm
– Overall length: 321mm
