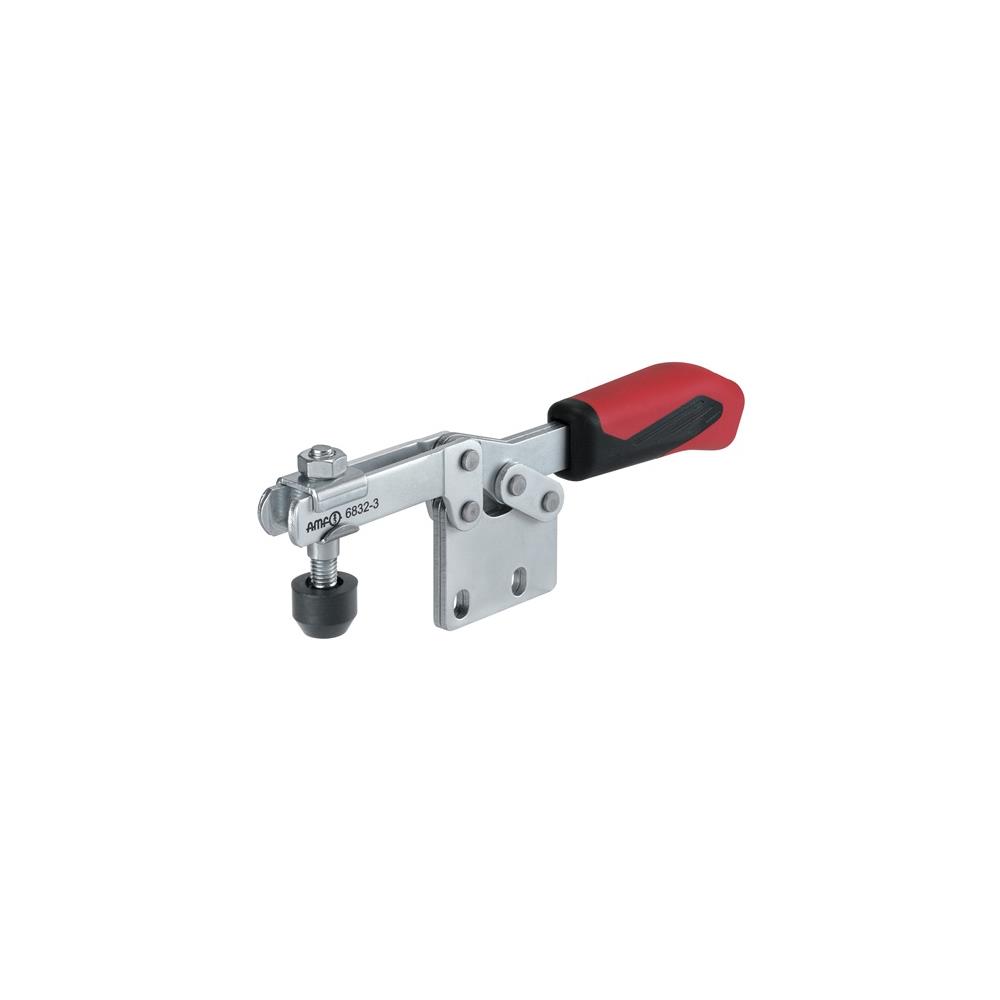

AMF Horizontal clamp no. 6832 size 1 vertical foot

Login to see prices

SKU:4020772093211

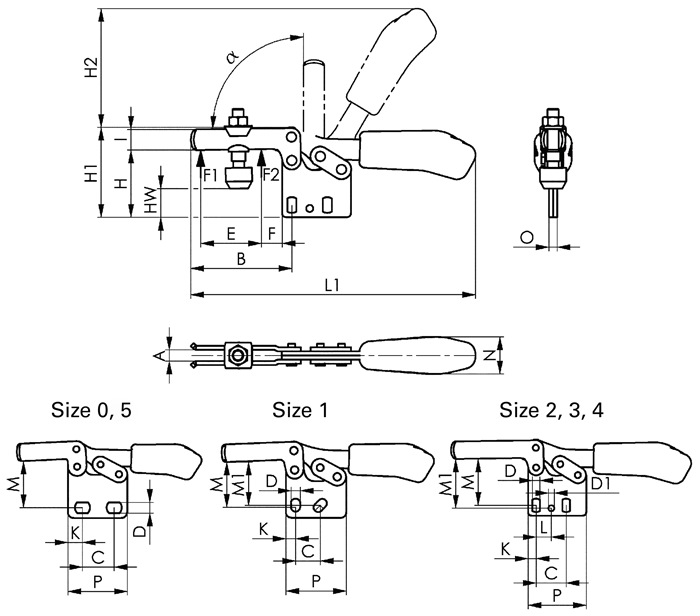

With vertical foot Further technical information:
– C: 13-14.5mm
– D: 5.2mm
– Clamping screw: M5 x 30
– HW min.: 8mm
– L1: 120mm
– F1: 0.8kN
– Overall height: 42mm
– L: -mm
– O: 5mm
– a*: 90°
– Design: Vertical foot
– F: 8mm
– P: 34mm
– K: 5.5mm
– A: 5mm
– HW max.: 15mm
– H1: 43mm
– H2: 49mm
– M1: 24.5mm
– I: 10mm
– F2: 1,1kN
– B: 42mm
– E: 18.5mm
– M: 23.5-25.5mm
– H: 31.5mm
– N: 18mm
– Overall length: 119mm
– D1: -mm
