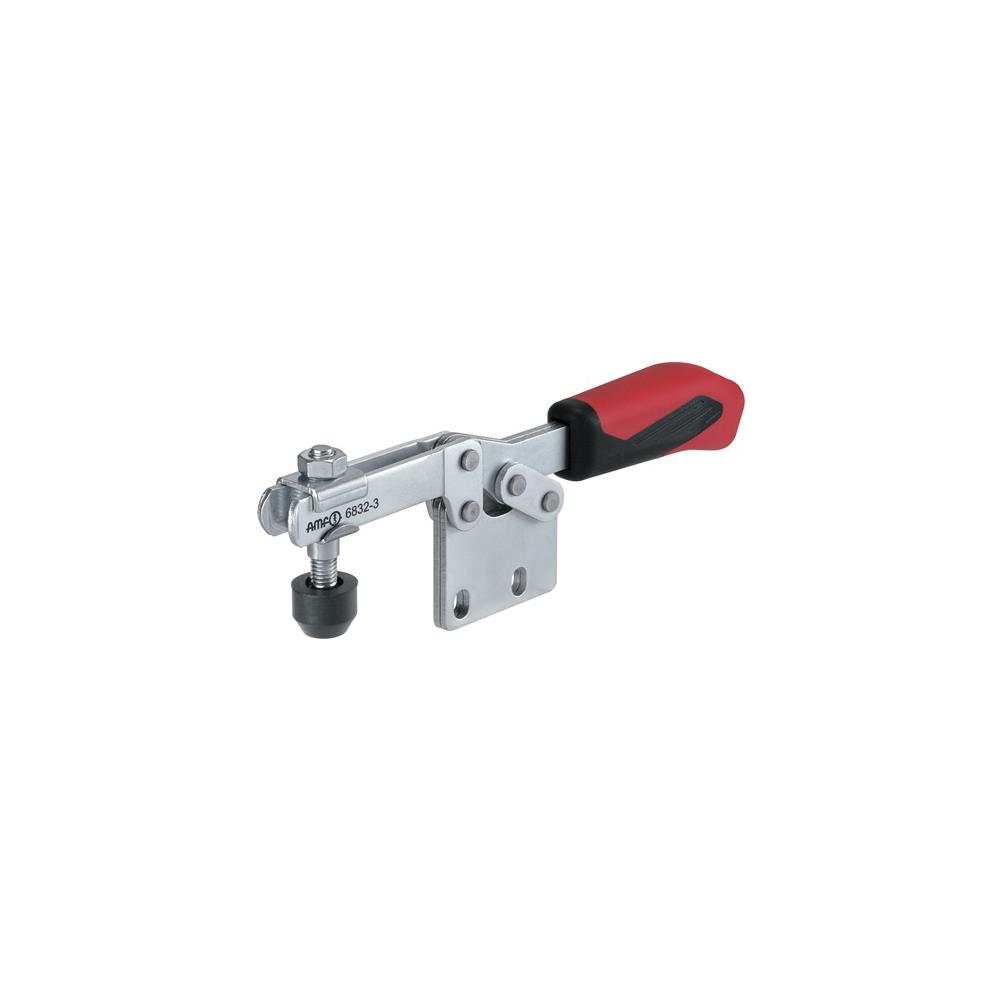

AMF Horizontal clamp no. 6832 size 4 vertical foot

Login to see prices

SKU:4020772093242

With vertical foot Further technical information:
– C: 41mm
– D: 8.5mm
– Clamping screw: M8 x 65
– HW min.: 17,5mm
– L1: 287mm
– F1: 2kN
– Overall height: 96mm
– L: 20,5mm
– O: 8mm
– a*: 90°
– Design: Vertical foot
– F: 27mm
– P: 57mm
– K: 8mm
– A: 10mm
– HW max.: 46mm
– H1: 97mm
– H2: 115mm
– M1: 59mm
– I: 20mm
– F2: 3kN
– B: 113mm
– E: 63mm
– M: 52-59mm
– H: 66.5mm
– N: 34mm
– Overall length: 281mm
– D1: 8,5mm
