AMF Horizontal clamp no. 6871 size 20 angled base

Login to see prices

SKU:4020772003654

Variable
– With open clamping arm and angled base
– With stepless compensating leg for workpieces with different clamping heights
– Galvanised and passivated
– Ergonomic, oil-resistant handle with large grip surface and soft components
– Retainer for the clamping screw at the end of the clamping arm

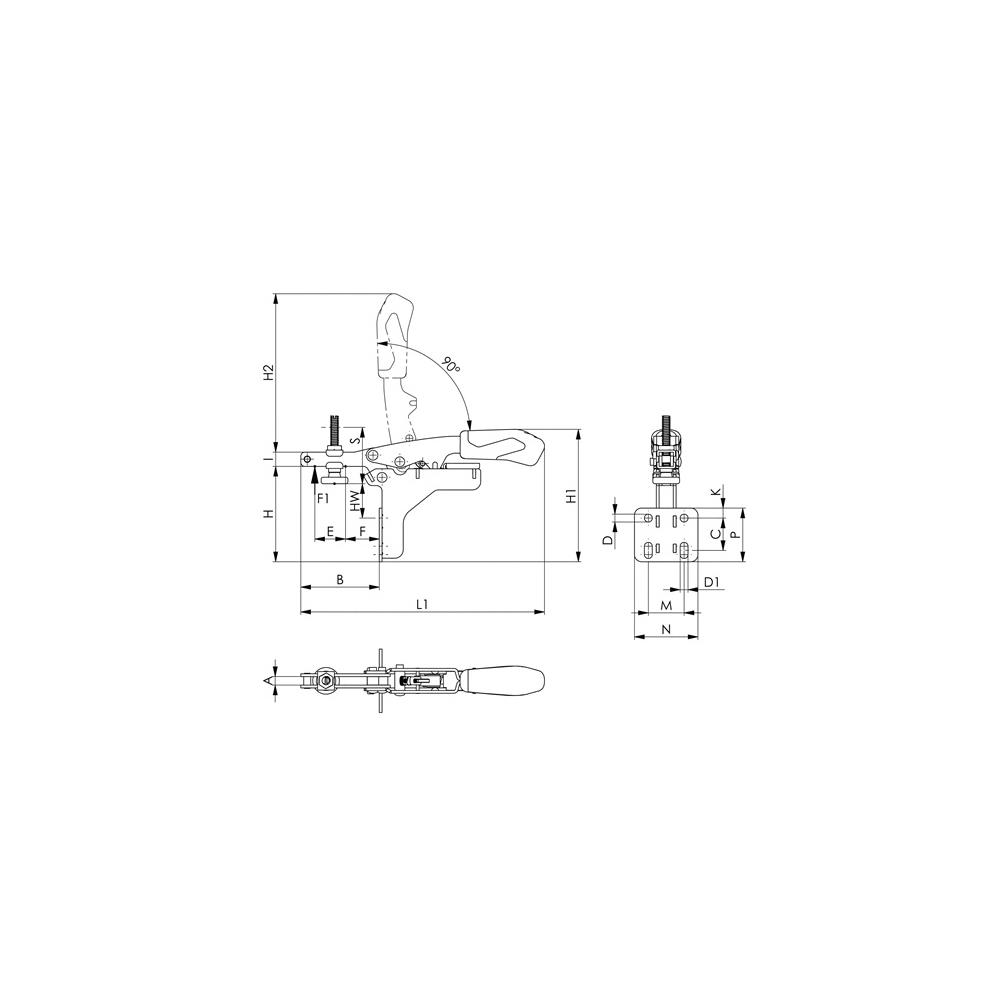

– Automatic height compensation S: Size 20 = 20 mm Size 50 = 35 mm Maximum height compensation: Size 20 = 35 mm Size 50 = 40 mm Further technical information:
– A: 6mm
– C: 20-26mm
– D: 5.6mm
– Clamping screw: M6 x 40
– HW min.: -3mm
– L1: 173mm
– HW max.: 24mm
– H1: 94mm
– F1: 2kN
– H2: 113mm
– Design: Angled base
– I: 10mm
– F: 24mm
– B: 56mm
– P: 38mm
– K: 7.1mm
– E: 22mm
– M: 25.4mm
– H: 68mm
– N: 45mm
– D1: 5,6mm Supply with galvanised clamping screw
