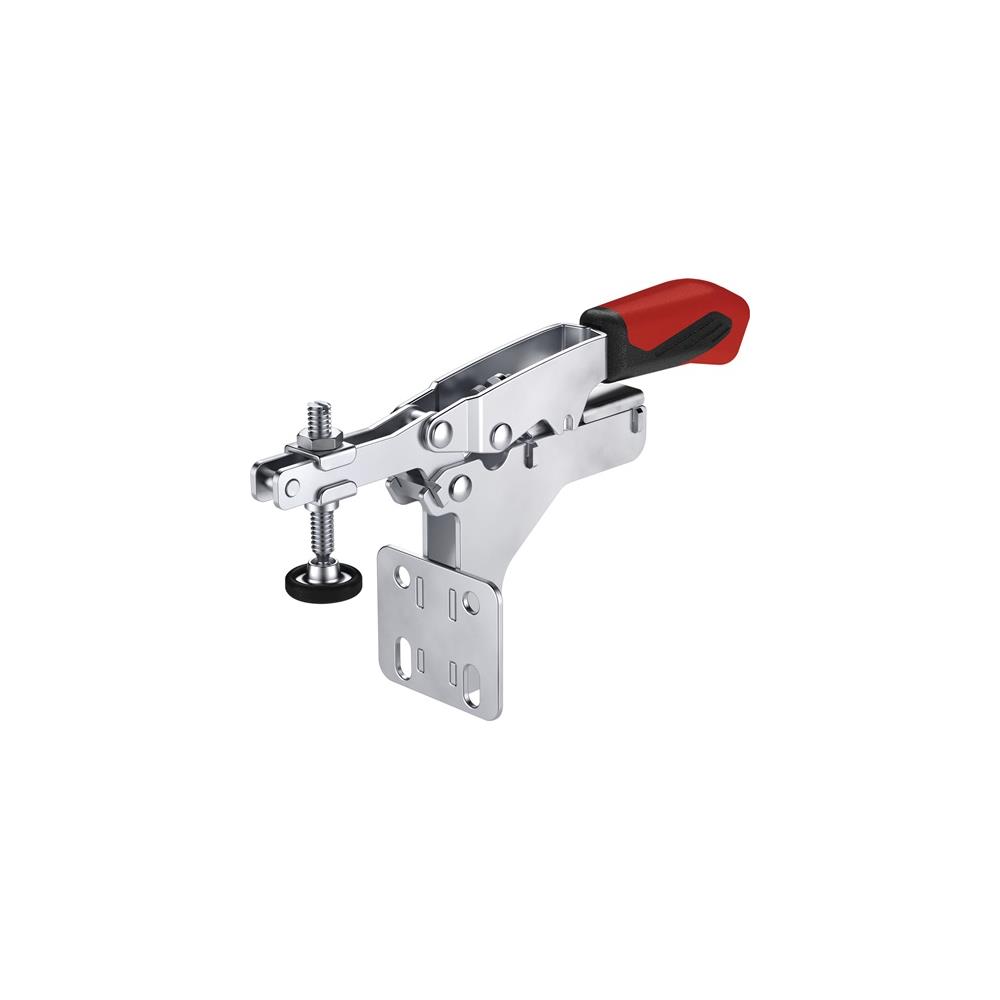

AMF Horizontal clamp no. 6871 size 50 angled base

Login to see prices

SKU:4020772003661

Variable
– With open clamping arm and angled base
– With stepless compensating leg for workpieces with different clamping heights
– Galvanised and passivated
– Ergonomic, oil-resistant handle with large grip surface and soft components
– Retainer for the clamping screw at the end of the clamping arm

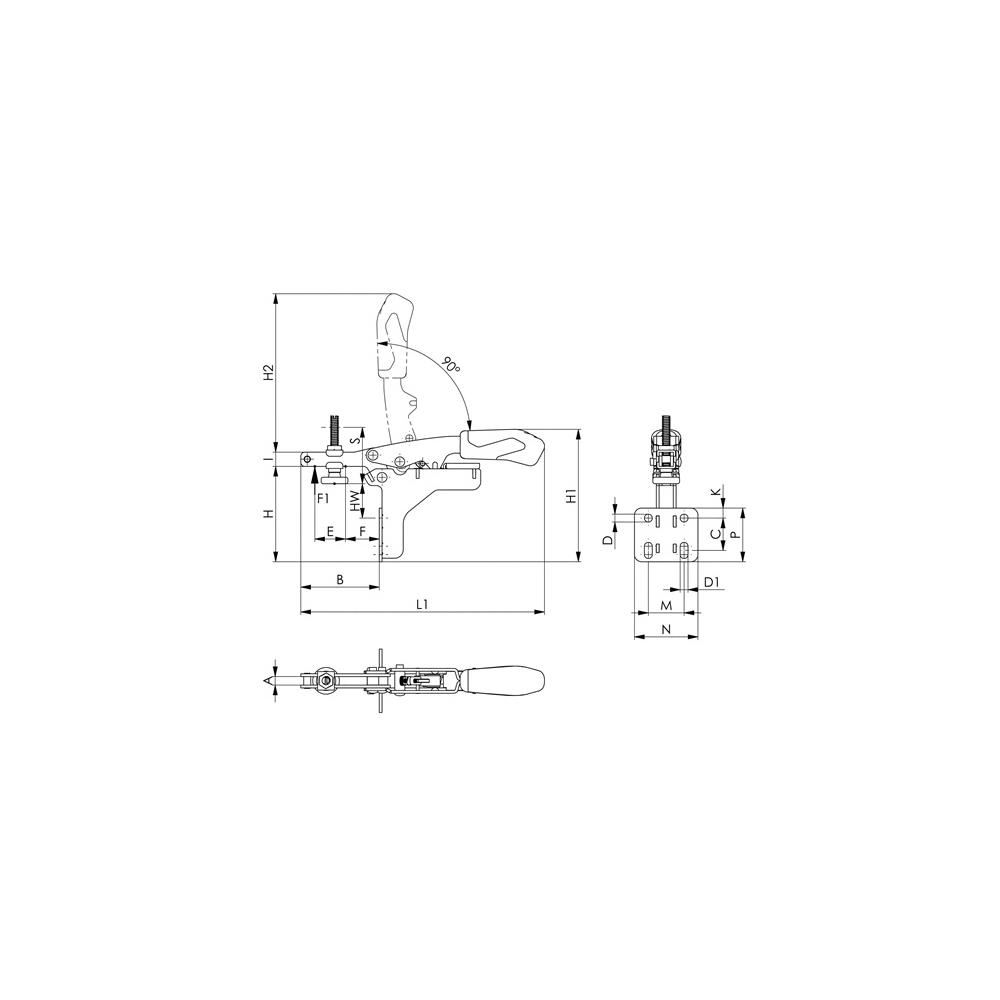

– Automatic height compensation S: Size 20 = 20 mm Size 50 = 35 mm Maximum height compensation: Size 20 = 35 mm Size 50 = 40 mm Further technical information:
– A: 8.4mm
– C: 22-32mm
– D: 6.5mm
– Clamping screw: M8 x 55
– HW min.: 1mm
– L1: 244mm
– HW max.: 31mm
– H1: 124mm
– F1: 3kN
– H2: 158mm
– Design: Angled base
– I: 13mm
– F: 37mm
– B: 85mm
– P: 51mm
– K: 10.6mm
– E: 35mm
– M: 38.1mm
– H: 88mm
– N: 57mm
– D1: 6,5mm Supply with galvanised clamping screw
