AMF Parallel support set no. 6344SP contents 8 pairs, size 25-39 corrugated length 110 mm

Login to see prices

SKU:4020772372835

Corrugated

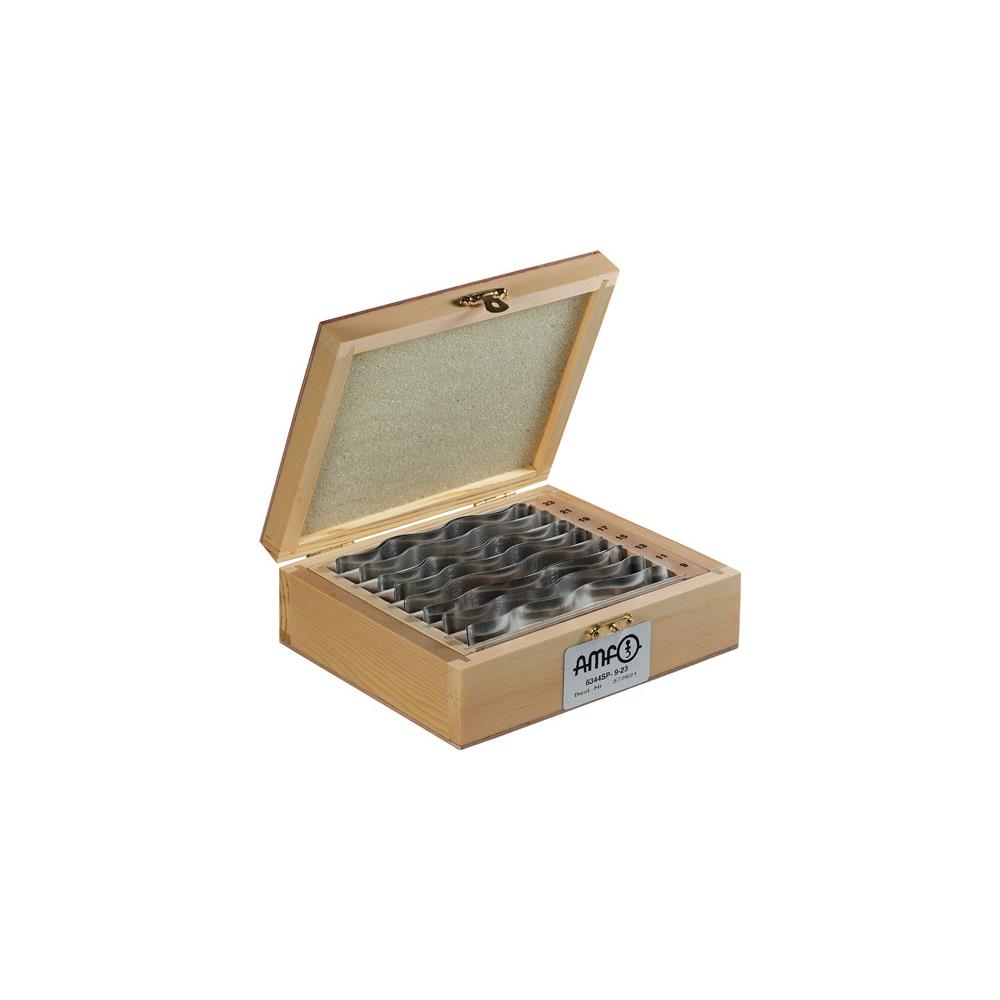

– In wooden box
– Material thickness 0.3 mm
– Precision ground
– Spring steel, hardened and tempered
– Height grading 2 mm
– Pair tolerance tp in the height IT 5
– Nominal size tolerance in the height +/-0.004 mm
– Remaining dimensions according to DIN ISO 2768m
– Advantage:
– No shavings remain on the contact surface
– Parallelism of the clamped work piece is not impaired

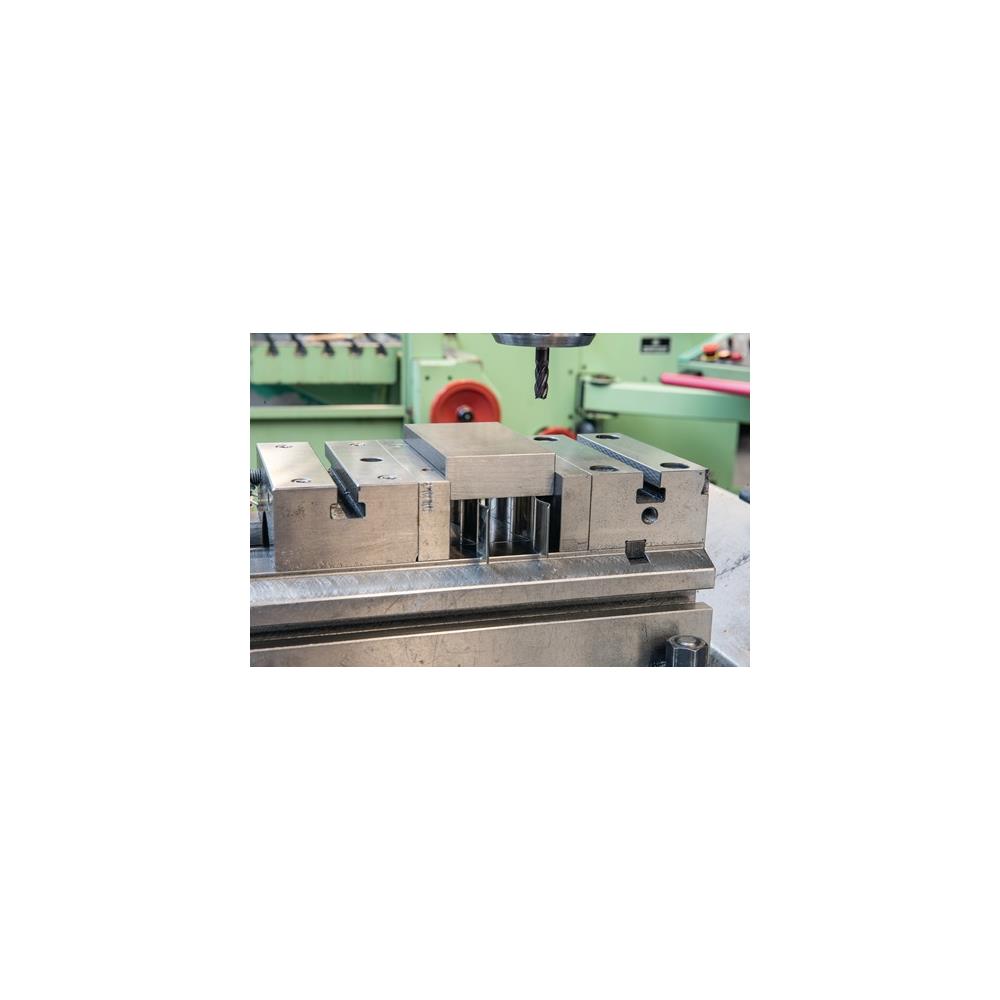

– Several flat or individual thin work pieces can be easily clamped Further technical information:
– Contents: 8 pairs Sizes 9-23, 1 contents each pair: 0.3×9 / 0.3×11 / 0.3×13 / 0.3×15 / 0.3×17 / 0.3×19 / 0.3×21 / 0.3×23 mm (WxH) Sizes 25-39, contents each pair: 0.3×25 / 0.3×27 / 0.3×29 / 0.3×31 / 0.3×33 / 0.3×35 / 0.3×37 / 0.3×39 mm (WxH)
