AMF Push-pull type toggle clamp no. 6840 size 1

Login to see prices

SKU:4020772093914

Without angled base
– Pressure and tension clamp
– (Push rod and hand lever synchronous)

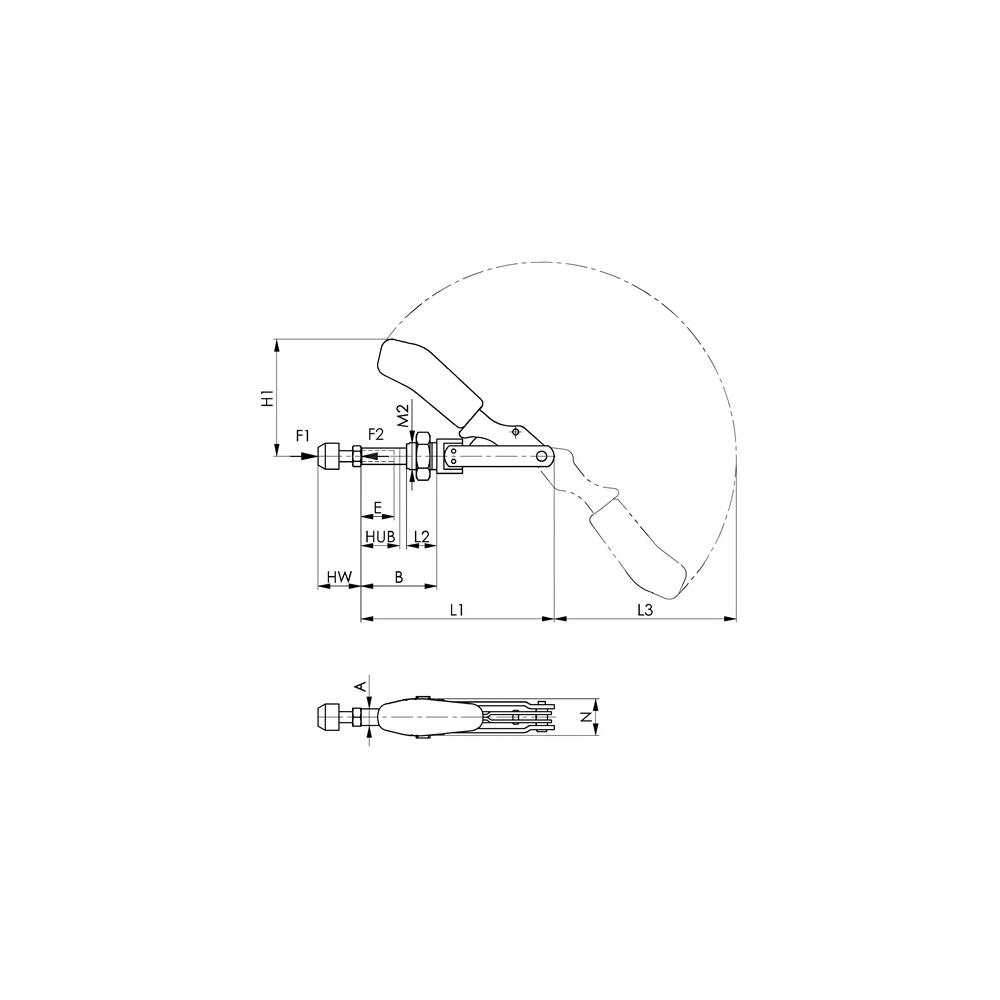

– Long push-pull type toggle guide with fastening thread and nut Further technical information:
– A: 8mm
– L2: 16mm
– M2: M12x1.5mm
– HW min.: 12mm
– L1: 91mm
– HW max.: 20mm
– H1: 45,5mm
– F1: 1kN
– B max.: 37,5mm
– F2: 1kN
– B min.: 17,5mm
– L3: 74mm
– E: 20mm
– N: 18mm Supply includes tempered, galvanised tightening screw no. 6880
