AMF Push-pull type toggle clamp no. 6840 size 3

Login to see prices

SKU:4020772093938

Without angled base
– Pressure and tension clamp
– (Push rod and hand lever synchronous)

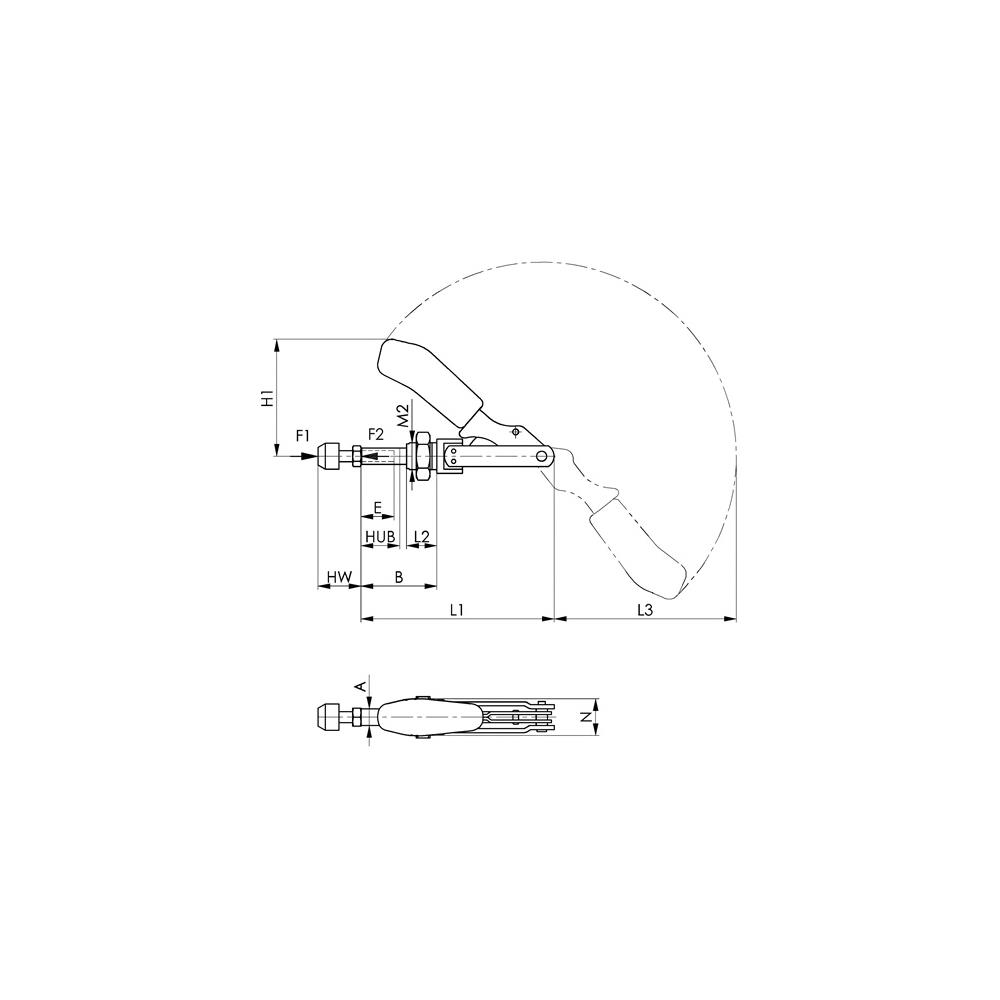

– Long push-pull type toggle guide with fastening thread and nut Further technical information:
– A: 12mm
– L2: 22mm
– M2: M20x1.5mm
– HW min.: 22mm
– L1: 140mm
– HW max.: 35mm
– H1: 82,5mm
– F1: 2.5kN
– B max.: 56mm
– F2: 2,5kN
– B min.: 24mm
– L3: 127mm
– E: 30mm
– N: 27mm Supply includes tempered, galvanised tightening screw no. 6880
