AMF Screw jack no. 6400 size 70 with flat support height 50-70 mm

Login to see prices

SKU:4020772072407

With flat support
– Spindle: Trapezoidal thread self-locking, with end protection
– Tempered steel, painted
– Because of the robust design, the screw jacks with infinite adjustability are accurate and secure even at very high loads Further technical information:

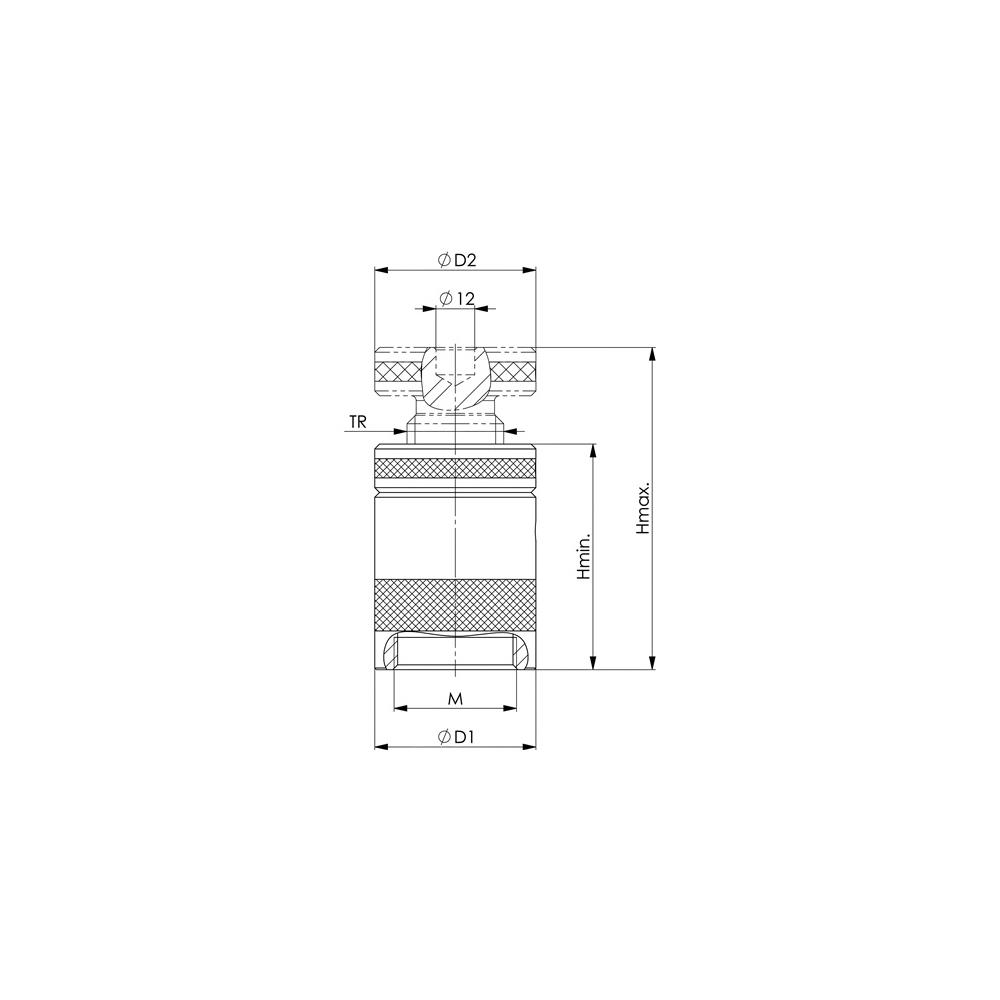

– Max. load-bearing capacity: 100kN
– Centre hole Ø: 12mm
– H max.: 70mm
– D2: 50mm
– TR: 30 x 4mm
– H min.: 50mm
– D1: 50mm
