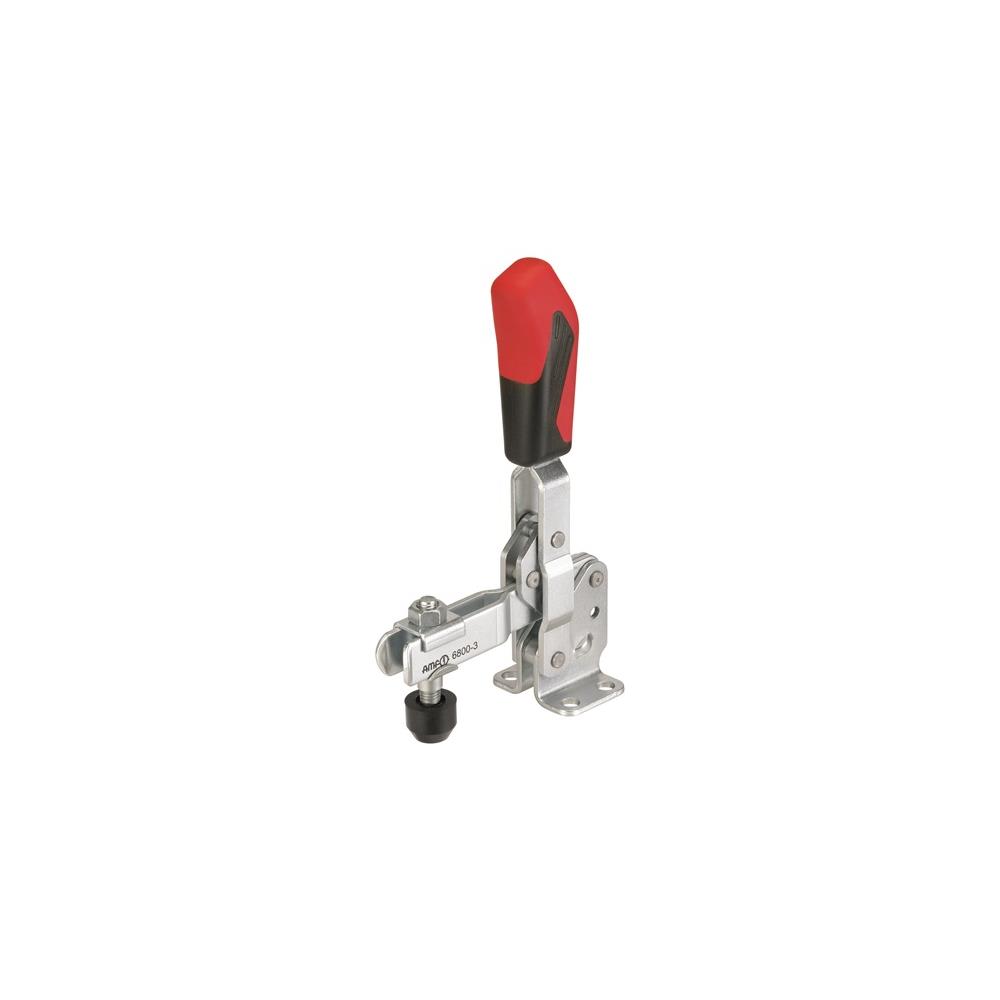

Vertical clamp no. 6800 size 5 horizontal base
Vertical clamp no. 6800 size 5 horizontal base
PRODUCT DESCRIPTION

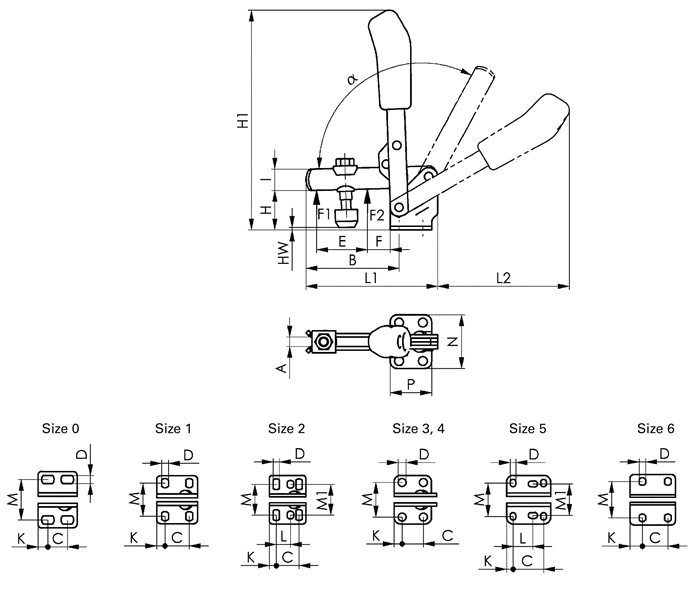

With horizontal foot Further technical information:
– A: 14mm
– C: 45mm
– D: 8.5mm
– a: 115°
– L2: 185mm
– HW min.: -3mm
– L1: 195mm
– HW max.: 27,5mm
– H1: 281mm
– F1: 3kN
– L: 26,5-31,5mm
– M1: 45mm
– Bore Ø: 8.5 mm
– a*: 60°
– I: 25mm
– F2: 5kN
– F: 34mm
– B: 140mm
– P: 65mm
– K: 9.5mm
– E: 73mm
– M: 45-50mm
– H: 55.8mm
– N: 70mm
– Clamping width: 73 mm
