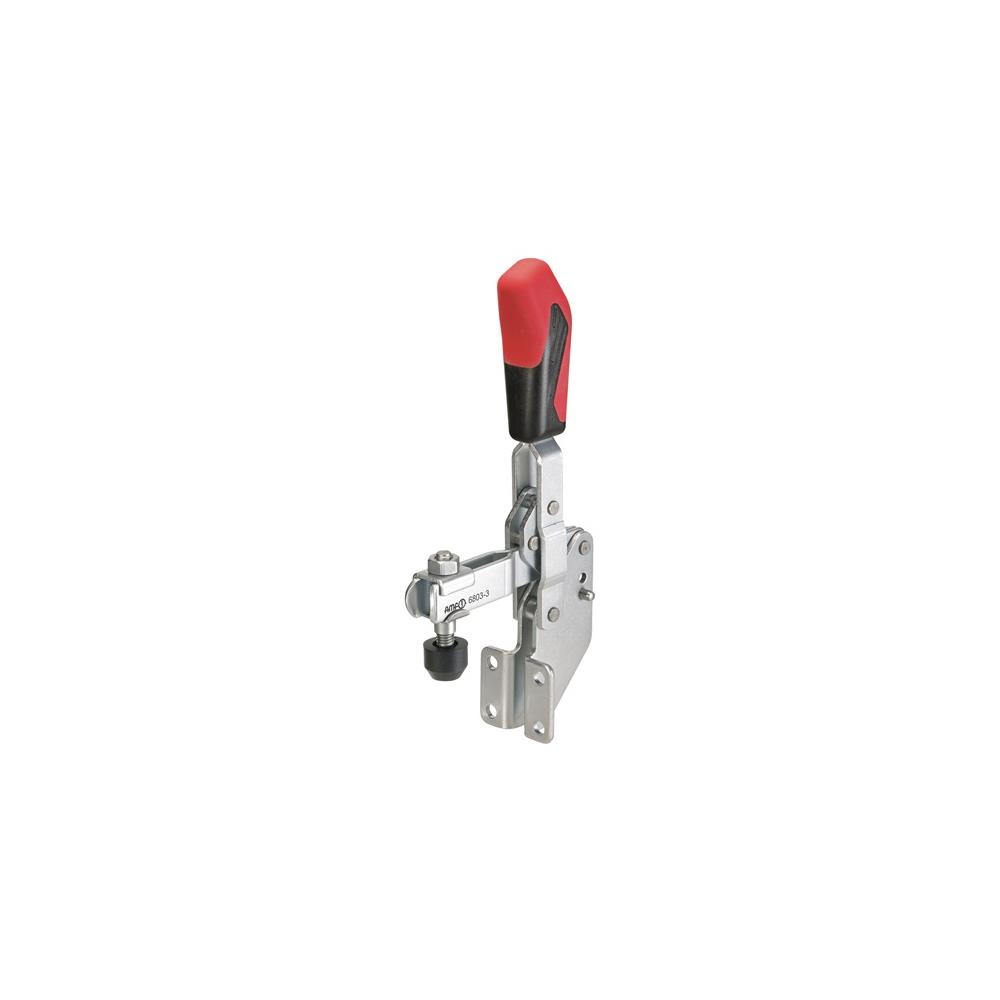

Vertical clamp no. 6803 size 3 angled base
Vertical clamp no. 6803 size 3 angled base
PRODUCT DESCRIPTION

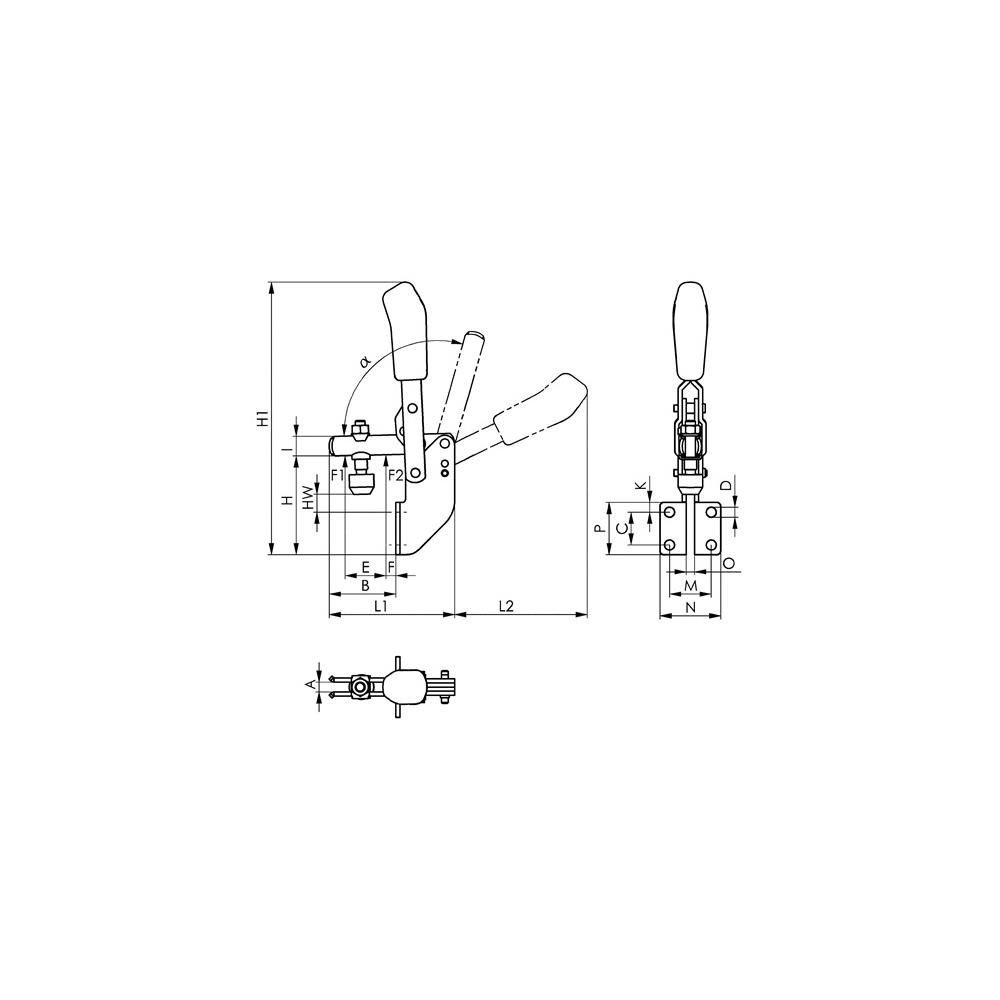

With angled base Further technical information:
– A: 8mm
– C: 24mm
– D: 6.5mm
– a: 105°
– L1: 111mm
– H1: 223mm
– F1: 1.4kN
– O: 6mm
– Bore Ø: 6.5 mm
– a*: 60°
– I: 18mm
– F2: 2,5kN
– F: 11mm
– B: 63mm
– P: 38mm
– K: 7mm
– E: 37mm
– M: 28.5mm
– H: 71mm
– N: 42.5mm
– Clamping width: 37 mm
