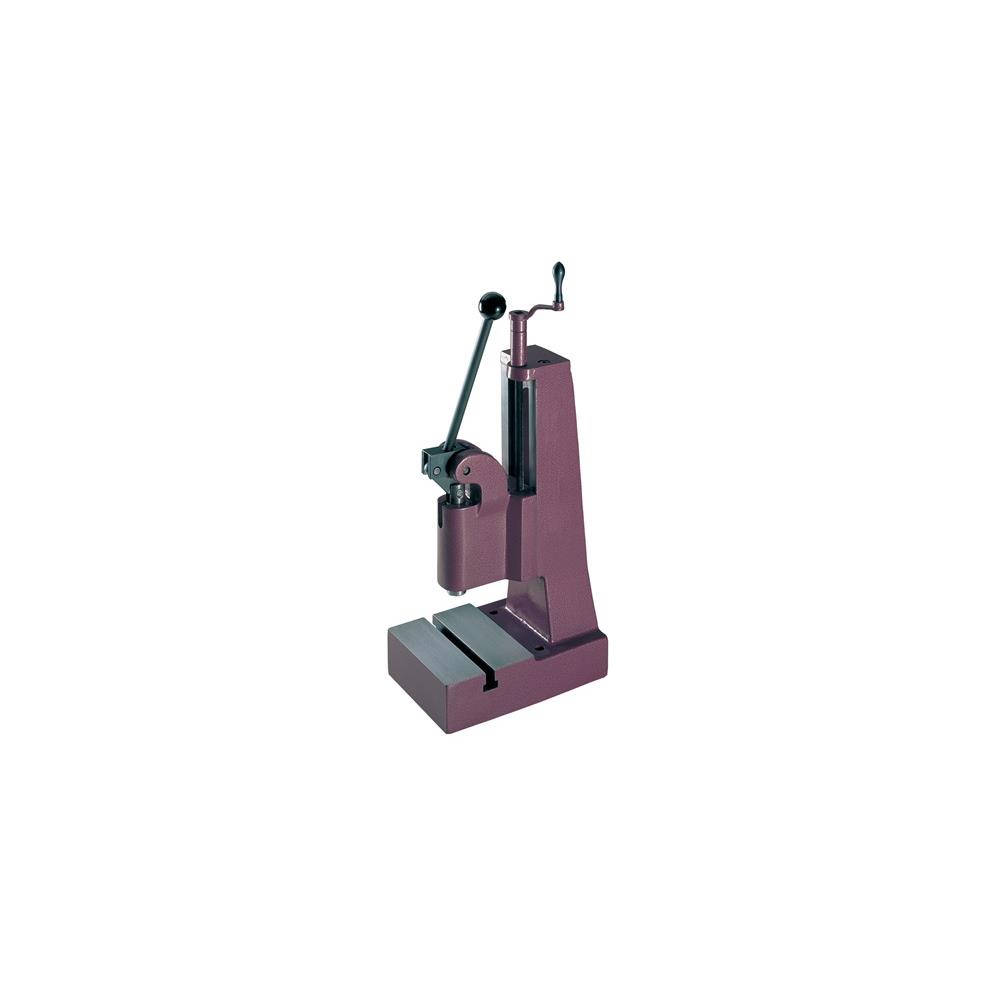

BERG & SCHMID Toggle lever hand press HK 800 pressure force 8 kN stroke 40 mm working height 50-200 mm

Login to see prices

SKU:4399901300453

Force transfer through toggle leverage
– Spindle hardened and ground
– Long spindle guide for optimal pressure performance
– Working height adjustable through simple loosening of the clamping bolts on the stand
– Hand lever return-guide over spring
– With bench drilling 15 mm Ø in the T-slot
– Special product benefits: This toggle lever press comes with fine adjustment of working height. The press knob can therefore be adjusted to the required working height with millimetre accuracy. Fine adjustment in both directions by means of a threaded spindle. Important! With toggle lever force transfer, the maximum pressure is reached when the articulated lever is straight, i.e. just before the end of the stroke. Further technical information:
– Width: 230mm
– Length: 160mm
– Length of table: 120mm
– Spindle hole: 10 H 7mm
– Weight: 22kg
– Width of footprint: 230mm
– Radius: 90mm
– Length of footprint: 160mm
– Spindle guide: 75mm
– Height of stand: 410mm
– Width of table: 160mm
– Width of groove: (DIN 650) 12mm
