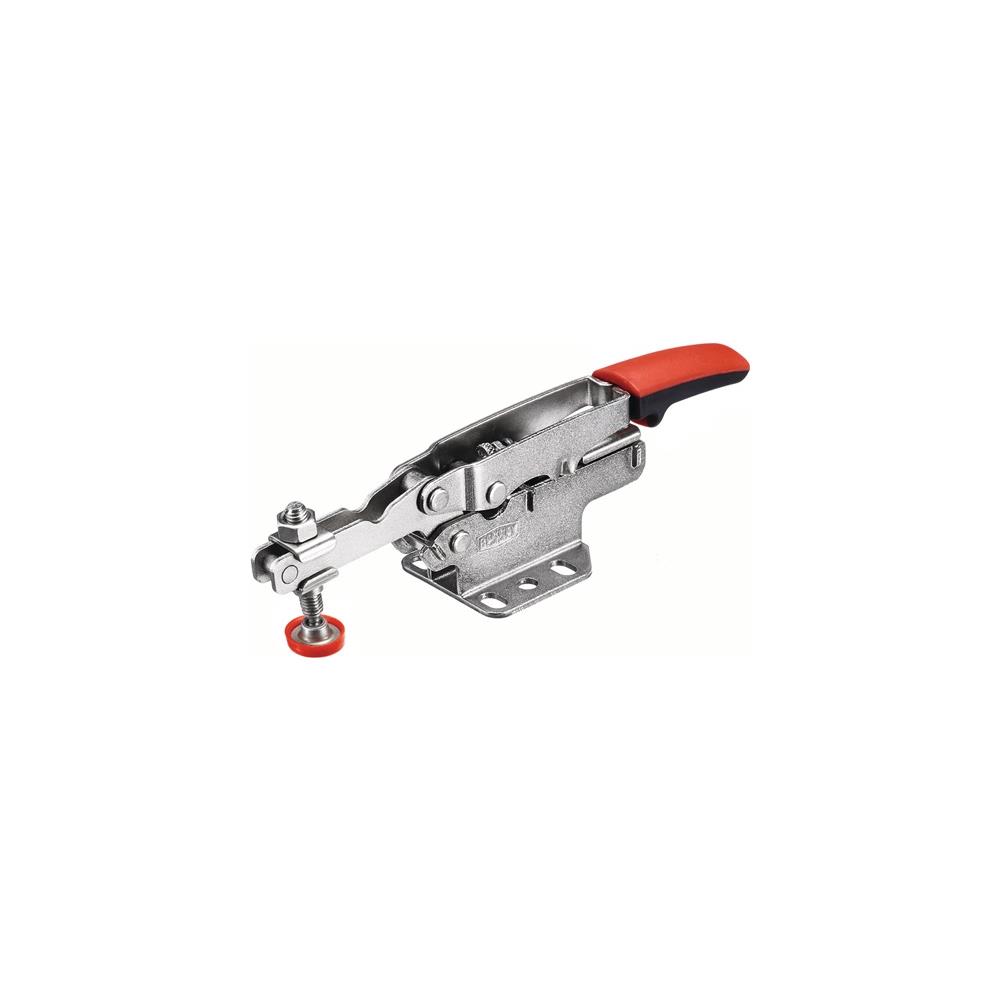

BESSEY Horizontal clamp STC-HH20 size 20 level base plate adjustment up to 20 mm

Login to see prices

SKU:4008158036212

Automatic infinitely variable adjustment of the clamping height up to 35 mm with roughly equivalent clamping force
– Adjustable clamping force by setting the adjusting screw in the joint
– Removable protective cap on the pressure plate
– Hole pattern of the base plate suitable for mm and inch

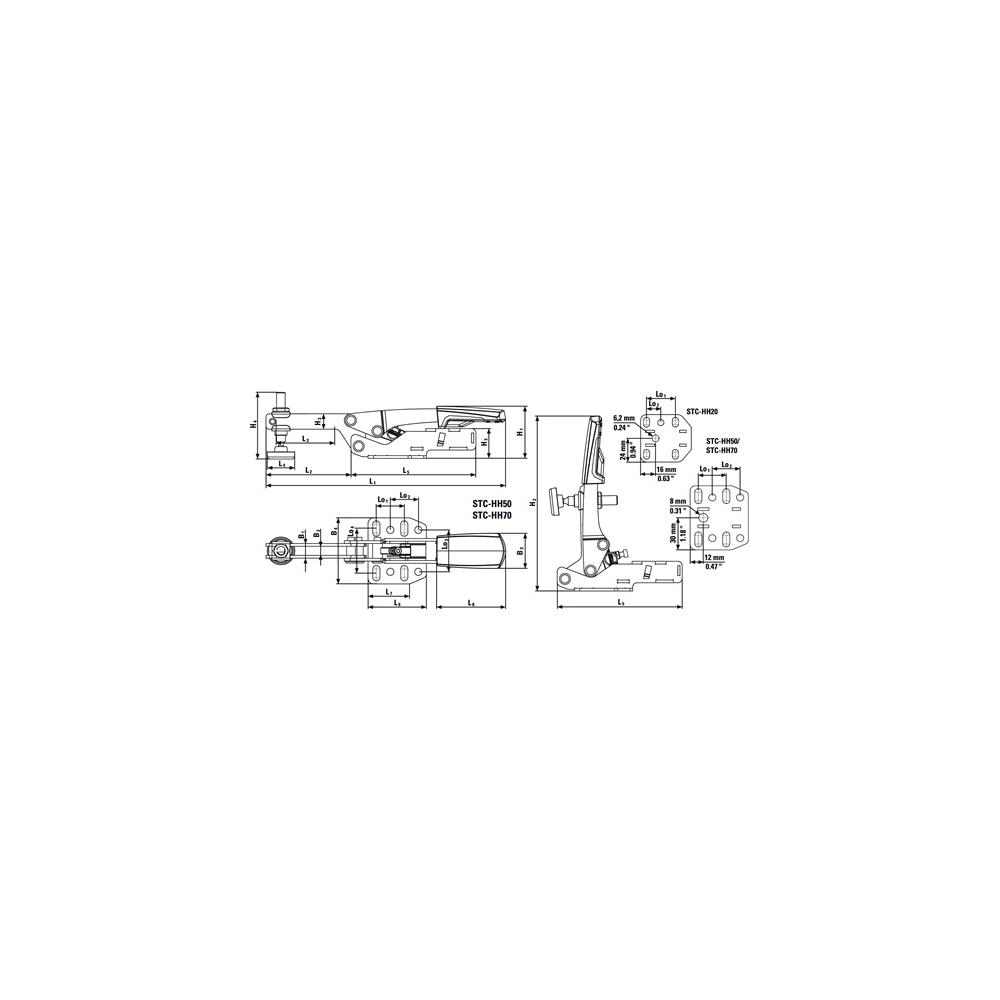

– 2-component plastic handle Further technical information:
– A: 10mm
– C: 13mm
– L1: 167mm
– H1: 25mm
– F1: 1.1kN
– Design: Horizontal base plate
– I: 10mm
– B: 45mm
– P: 45mm
– E: 20mm
– M: 26-31.75mm
– N: 42mm
