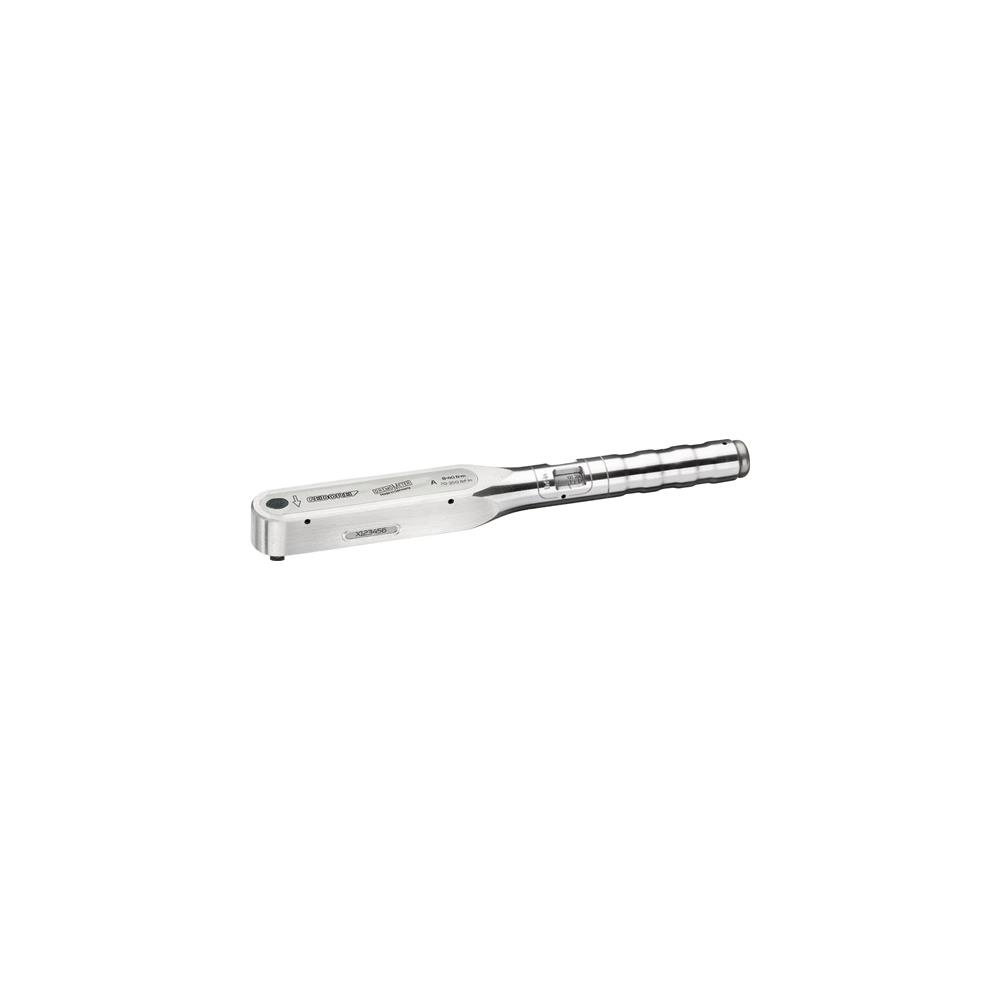

GEDORE Torque spanner 8560-01 3/8 inch 8-40 Nm
1,00 ST Torque spanner 8560-01 3/8 inch 8-40 Nm
PRODUCT DESCRIPTION
All-metal design made of high-strength aluminium alloy
– With fixed square drive
– With comfortable aluminium handle
– Clockwise ratcheting
– Combined double Nm and lbf.ft/lbf.in scale
– Lightweight metal housing
– Loaded parts made of special steel
– Audible and tactile release signal when pre-set torque reached
– Ergonomic adjusting button for fast setting
– Calibrated to a release accuracy of +/- 3 % of the tolerance of the set scale value
– No shifts in value or impact on accuracy from using both hands or using off-handle (as with conventional torque spanners since both square drive and pivot point are on a single axis for increased safety
– Extensible to reduce work load Further technical information:
– Subject to audit: Yes Includes calibration certificate in accordance with DIN EN ISO 6789-2:2017 Operating instructions Supplied in plastic box
Work area Nm: 8 - 40 Nm
Scale division: 5 Nm/50 lbf.in
Work area lbf.in lbf.ft.: 70 - 350 lbf.ft
Length: 340 mm
Square drive mm: 10.0 mm
Brand: GEDORE
Square drive: 3/8
Work area:
Scope of delivery:
1,00 ST Torque spanner 8560-01 3/8 inch 8-40 Nm
