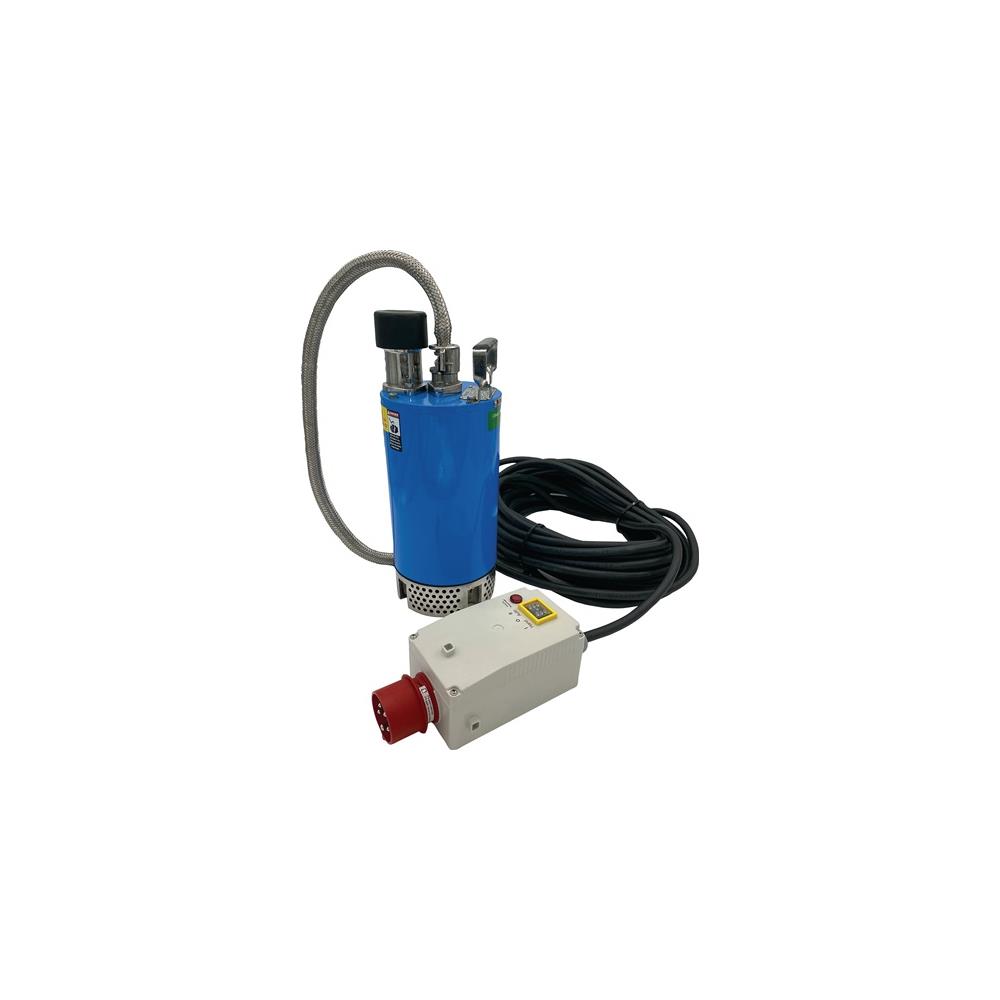

NOWAX Submersible pump BTPA 1000 24000 l/h 15.6 m 1000 W
Submersible pump BTPA 1000 24000 l/h 15.6 m 1000 W
PRODUCT DESCRIPTION
Dirty water pump for dewatering on construction sites, for use by fire brigades and for disaster control with solids up to Ø 6 mm
– Flexible metal cable protection
– Oil barrier chamber for heat dissipation in case of dry running
– Double, independent tandem mechanical seal with sand protection
– Epoxy coating for aluminium/steel components
– Thermal switch with overload protection
– Ready for connection with motor protection plug (three-phase switchgear CEE 16 A, 400 V, IP 54) of the following type: Phase sequence indicator, phase inverter and connection for float switch, manual-O-automatic switch Further technical information:
– Weight: 21kg
Delivery head: 15.6 m
Nominal input power: 1000 W
Mains voltage: 400 V / 50 Hz
Length of cable: 20 m
Connection thread: 50.8 mm (2) IT
Connector type: F
Model: BTPA 1000
Scope of delivery:
1,00 ST Submersible pump BTPA 1000 24000 l/h 15.6 m 1000 W
