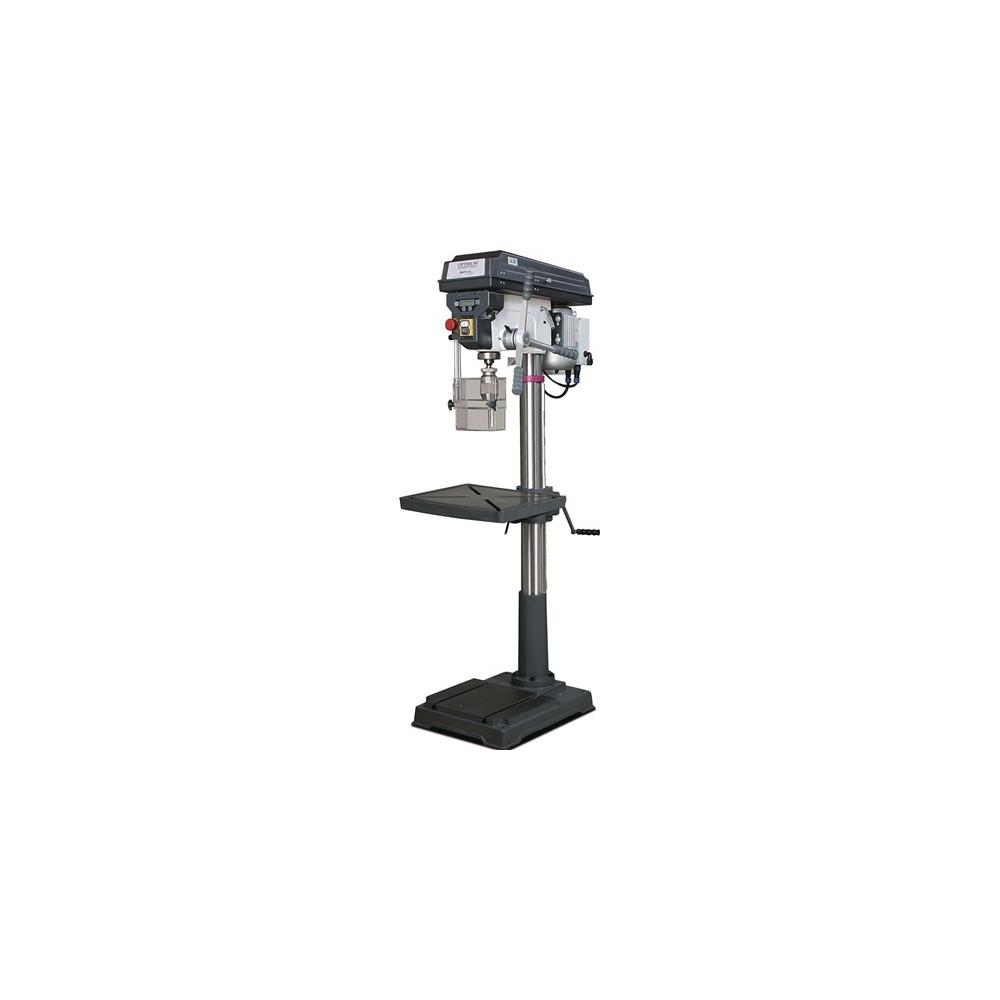

OPTI-DRILL Pillar drill D 33 Pro MK4 30 (S235JR) mm

V-belt drive via aluminium belt pulleys (cover with safety switch)
– Emergency stop shock switch
– Safety switch in accordance with IP 54
– Drill depth stop
– Drilling table +/- 45° tiltable
– Drilling table height adjustable via rack with diagonal T-slots and circumferential cooling water groove
– Precision spindle hole
– Very high concentricity
– Drill spindle with precision ball bearings
– Height-adjustable visor with safety switch
– Clockwise/anti-clockwise operation Further technical information:
– Width: 440mm
– Length: 755mm
– Radius: 254mm
– Height: 1705mm
– Engine power: 1.10kW
– Mains voltage: 400 V / 50 Hz
– Subject to audit: Yes Scope of supply: Quick-clamp drill chuck 1-16 mm, morse taper, T-sliding blocks
