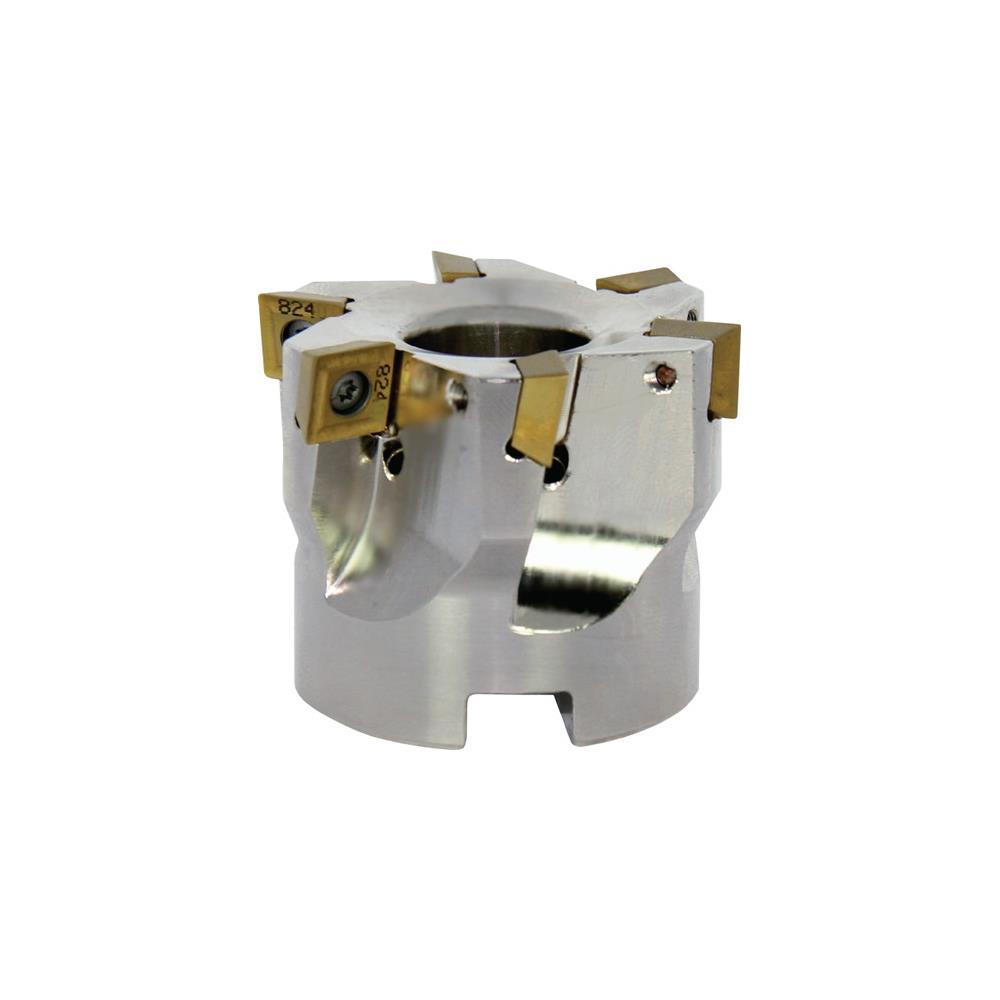

PROMAT Corner cutter 63A06R-S90SD12-C diameter 63 mm nickel-plated with inner cooling no. of cutters 6 SDMT 120508

90°
– Nickel-plated type
– With internal cooling
– For medium to heavy-duty machining
– Corner and facing cutters with plunge depths up to 10 mm possible
– For indexable insert SDMT 120508… Further technical information:
– Surface: Nickel-plated
– Indexable insert: SDMT 120508

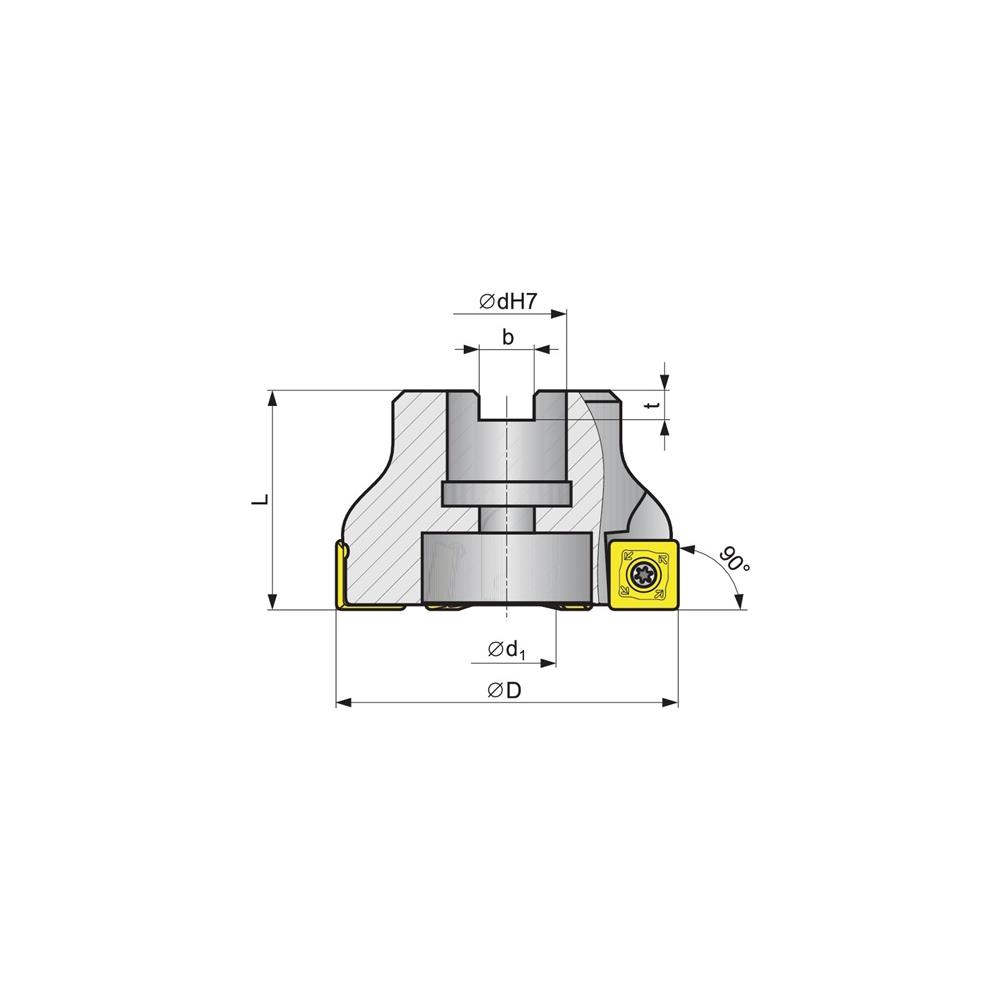

– D: 63mm
– Ø d H7: 22mm
– b: 10.4mm
– Cooling: With internal cooling
– L: 40mm
– d1: 18mm
– Type: 63A06R-S90SD12-C
– t: 6.3mm Supplied with tightening screw, clamp screw, without screwdriver (size T15)
