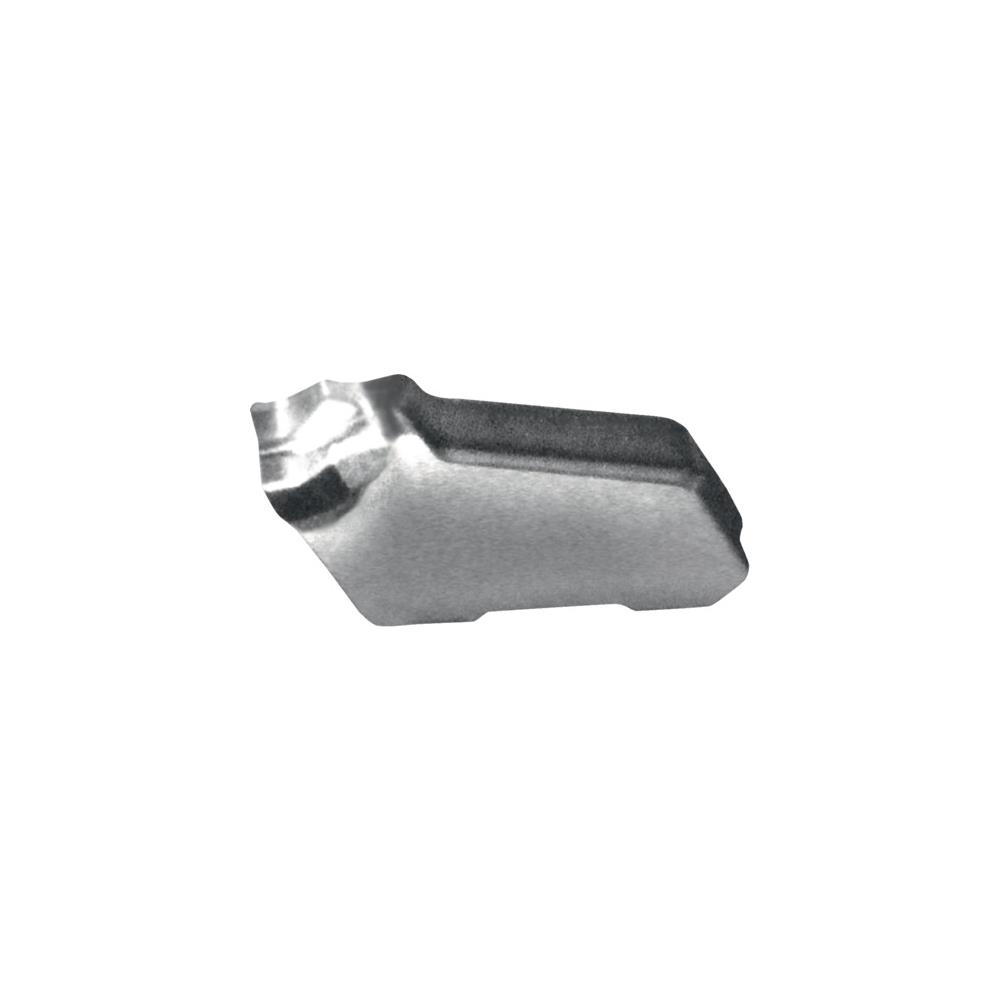

PROMAT Cutting tip GFN 3.1 ALU

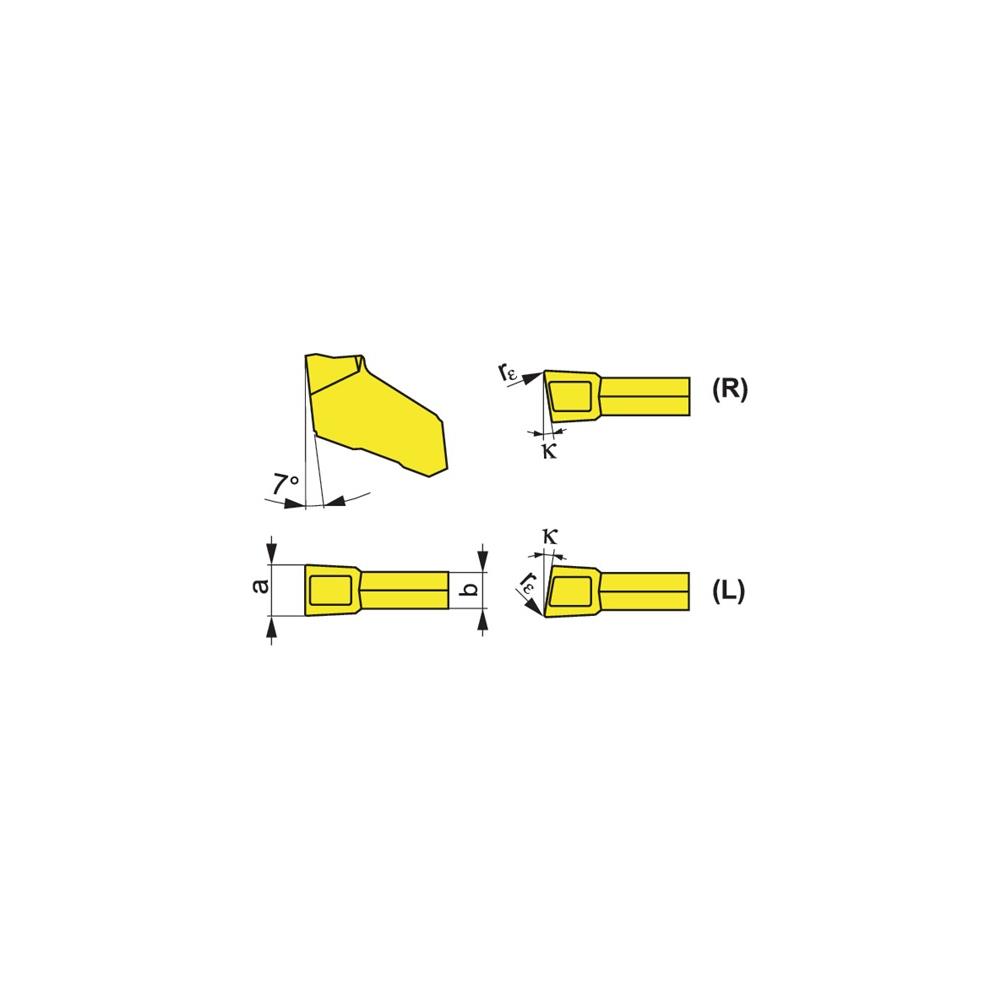

For slicing off and cutting Further technical information:
– a: 3.1mm
– tol. a +/-: 0,04mm
– b: 2.6mm
– re: 0,2mm
– Max. feed rate: – mm/rev in steel / – mm/rev in stainless steel / – mm/rev in cast / 0.2 mm/rev in NI metals / – mm/rev in superalloys / – mm/rev in hardened steels
– Vc max.: – m/min in steel / – m/min in stainless / – m/min in cast / 630 m/min in NI metals / – m/min in superalloys / – m/min in hardened steels
– Vc min.: – m/min in steel / – m/min in stainless / – m/min in cast / 140 m/min in NI metals / – m/min in superalloys / – m/min in hardened steels
– Min. cutting depth: – mm in steel / – mm in stainless / – mm in cast / – mm in NI metals / – mm in superalloys / – mm in hardened steels
– Max. cutting depth: – mm in steel / – mm in stainless / – mm in cast / – mm in NI metals / – mm in superalloys / – mm in hardened steels
– Min. feed rate: – mm/rev in steel / – mm/rev in stainless steel / – mm/rev in cast / 0.08 mm/rev in NI metals / – mm/rev in superalloys / – mm/rev in hardened steels
