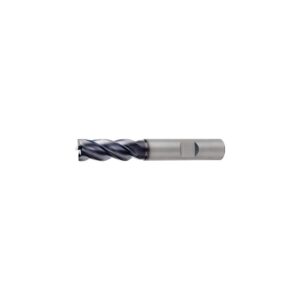

PROMAT Drill groove milling cutter DIN 327 type N nominal diameter 18 mm HSS-Co8 TiCN DIN 1835 B no. of cutters 3 short

HSS-Co8
– DIN 327
– Type N
– Three-flute cutter
– Short
– Centre cut
– Straight shank with pulling face
– Right-hand cutting
– For milling low- and medium strength materials up to approx. 800 N/mm²
– For milling feather key grooves with greater depth for face and circumferential milling Further technical information:
– Material qualification INOX stainless steel: Very suitable
– Material qualification cast: Very suitable
– Material qualification steel: Very suitable
– Material qualification of special alloys: Somewhat suitable
– Shank Ø: 16mm
– Material qualification NF metals: Somewhat suitable
– Free grinding: 15mm
