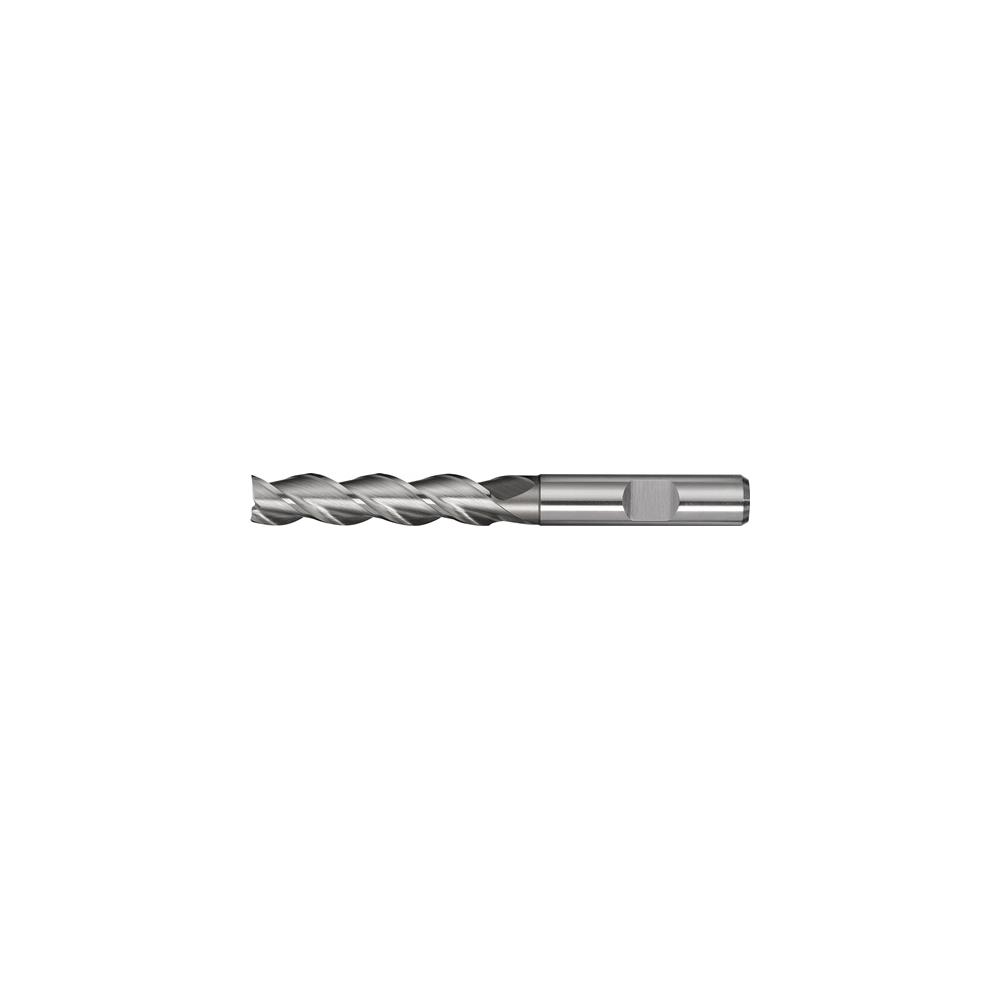

PROMAT Drill groove milling cutter DIN 844 type W nominal diameter 14 mm HSS-Co8 DIN 1835 B no. of cutters 3 long
Sale ends in:
Drill groove milling cutter DIN 844 type W nominal diameter 14 mm HSS-Co8 DIN 1835 B no. of cutters 3 long
Drill groove milling cutter DIN 844 type W
PRODUCT DESCRIPTION
HSS-Co8
– DIN 844
– Type W
– Three-flute cutter
– Long
– Centre cut
– Straight shank with pulling face
– Right-hand cutting
– 40° angle of twist
– For machining long-span aluminium and non-ferrous metals Further technical information:
– Shank Ø: 12mm
– Material qualification NF metals: Very suitable
– Free grinding: 11,5mm
Coating: Uncoated
Nominal Ø: 14 mm
Length of cutting edge: 53 mm
Overall length: 110 mm
Length of insert: 63 mm
No. of cutters: 3
Shank design: DIN 1835 B
Type: W
Standard: DIN 844
Cutting materi
Scope of delivery:
1,00 ST Drill groove milling cutter DIN 844 type W nominal diameter 14 mm HSS-Co8 DIN 1835 B no. of cutters 3 long
Nominal Ø: 14 mm
Length of cutting edge: 53 mm
Overall length: 110 mm
Length of insert: 63 mm
No. of cutters: 3
Shank design: DIN 1835 B
Type: W
Standard: DIN 844
Cutting materi
Scope of delivery:
1,00 ST Drill groove milling cutter DIN 844 type W nominal diameter 14 mm HSS-Co8 DIN 1835 B no. of cutters 3 long
