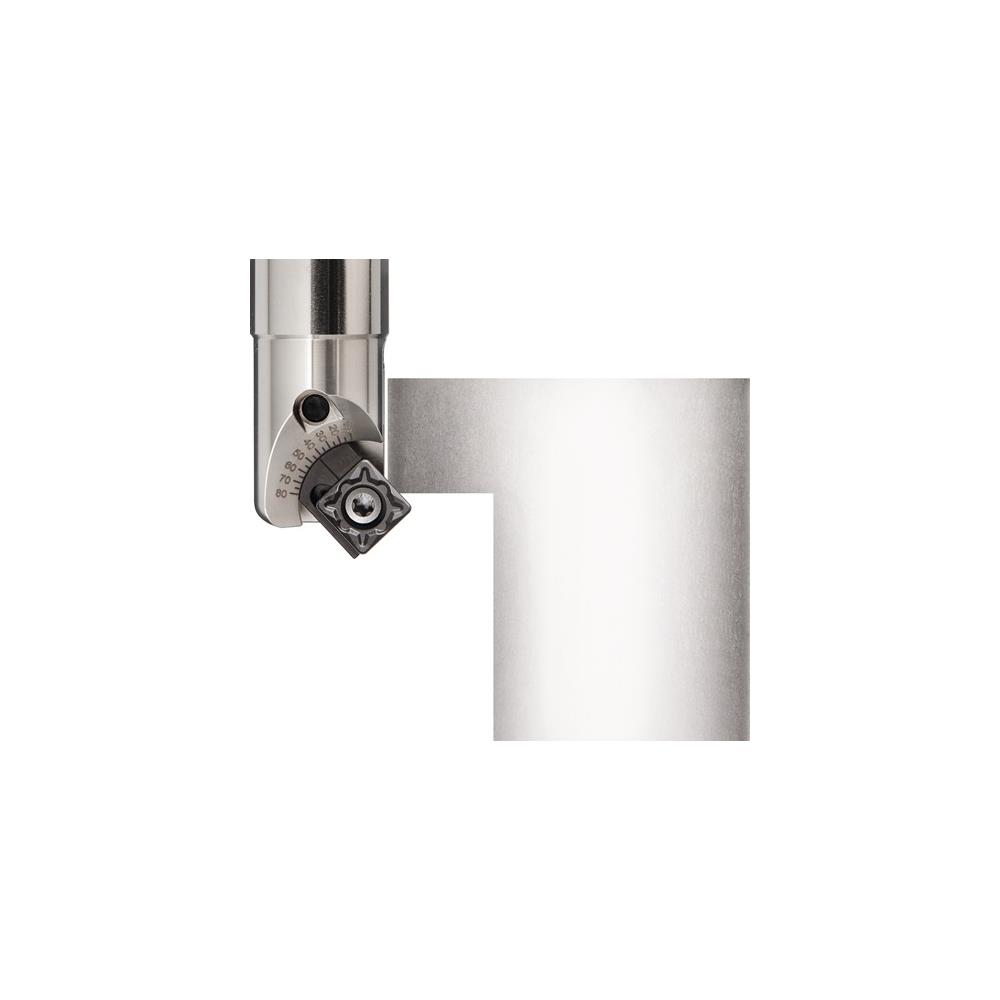

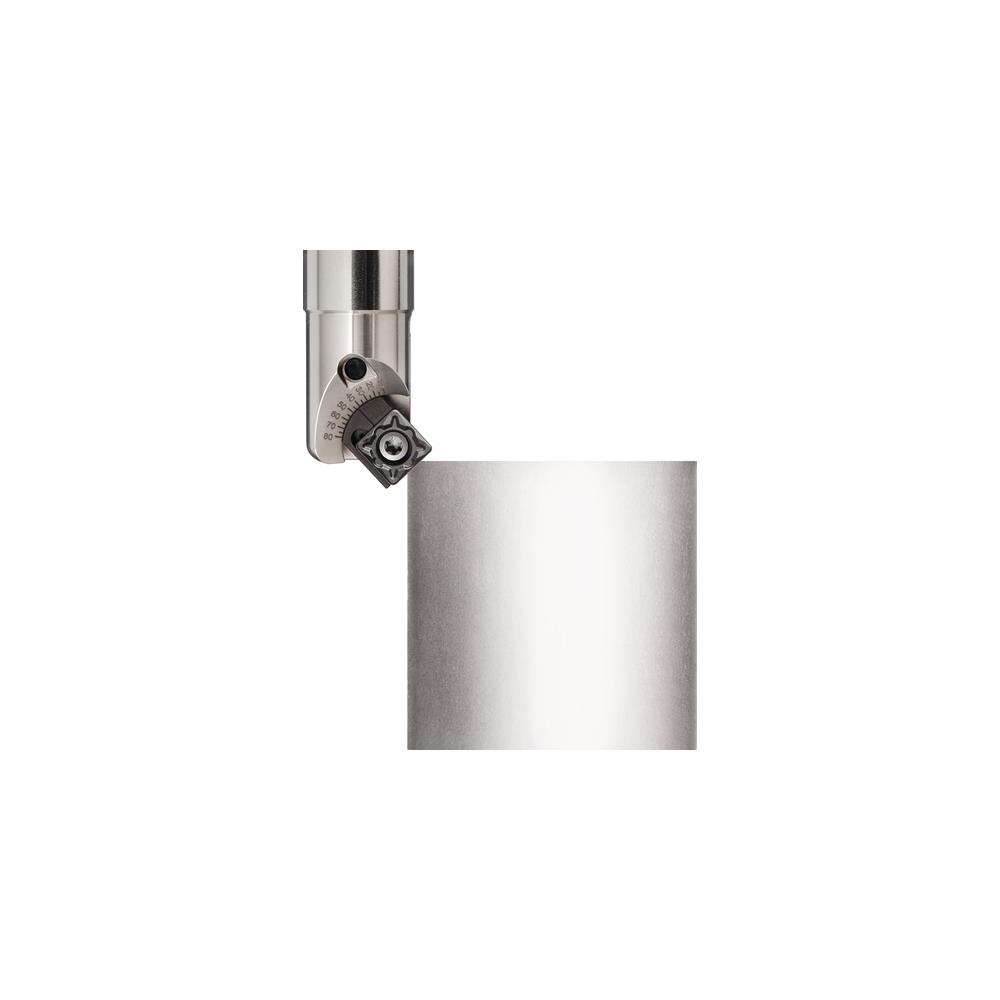

PROMAT Edging cutter nominal dm 31 mm shank dm 25 mm nickel-plated TCMT 16T3, SCMT 1204

Nickel-plated type
– With internal cooling
– Adjustable
– 10°-80°
– Universally usable indexable milling countersink for chamfering, deburring edges, round holes and slots and countersinking in rigid applications
– Silent running and stable type and construction
– Straight shank with pulling face according to DIN 1835 B
– With SCMT can also be used as reverse countersink
– Adjustment range Diam. min – diam. max 10° 5-32 20° 6-33 30° 7-34 40° 10-33 45° 11-33 50° 13-32 60° 16-31 70° 19-29 80° 23-27 Further technical information:
– Surface: Nickel-plated
– Indexable insert: TCMT 16T3, SCMT 1204
– Length of insert: 60mm
– Shank Ø g7: 25mm Supplied with 1 case each for TCMT 16… and SCMT 12…, clamp screw and key, without insert
