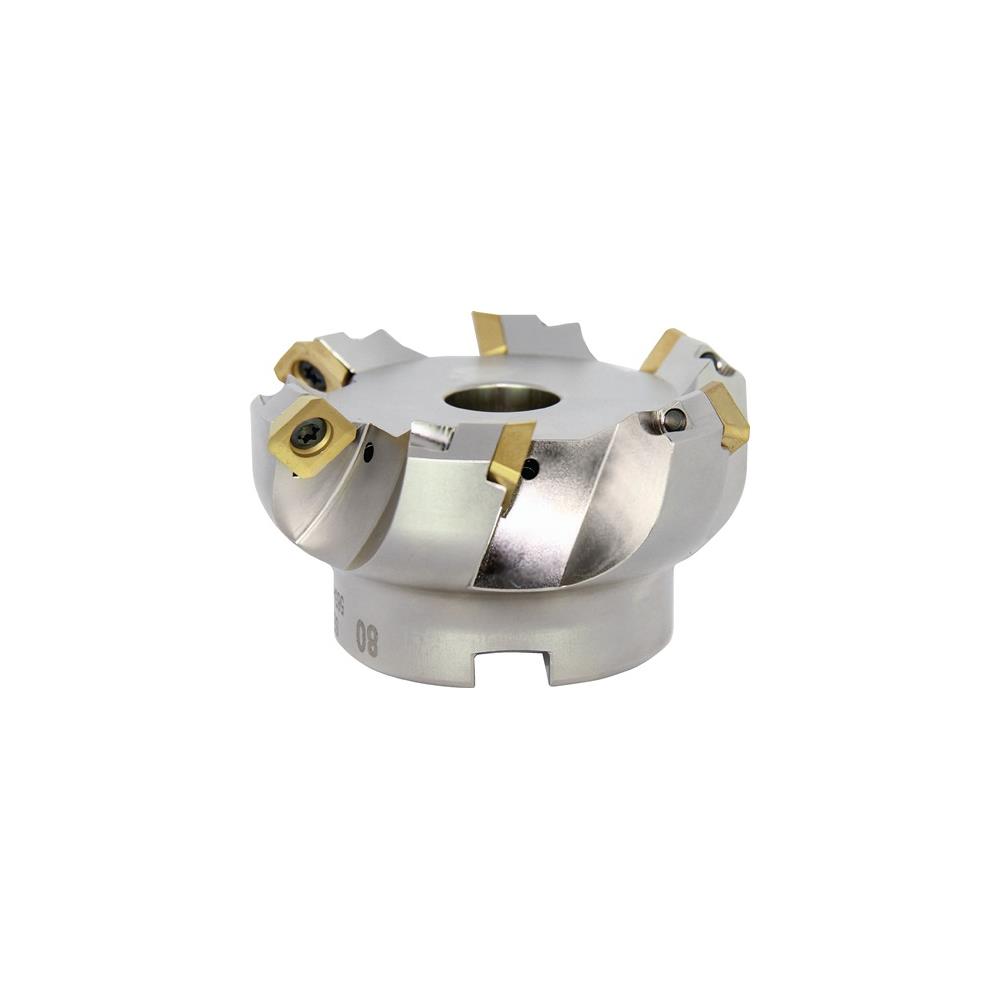

PROMAT Facing cutter nominal diameter 80 mm nickel-plated with inner cooling no. of cutters 5 SE.. 1204 AF

45°
– Nickel-plated type
– With internal cooling
– With high-positive cutting angle, usable for many purposes
– For high feed rates and cutting depths to 6 mm
– For indexable insert SE.. 1204 AF… Further technical information:

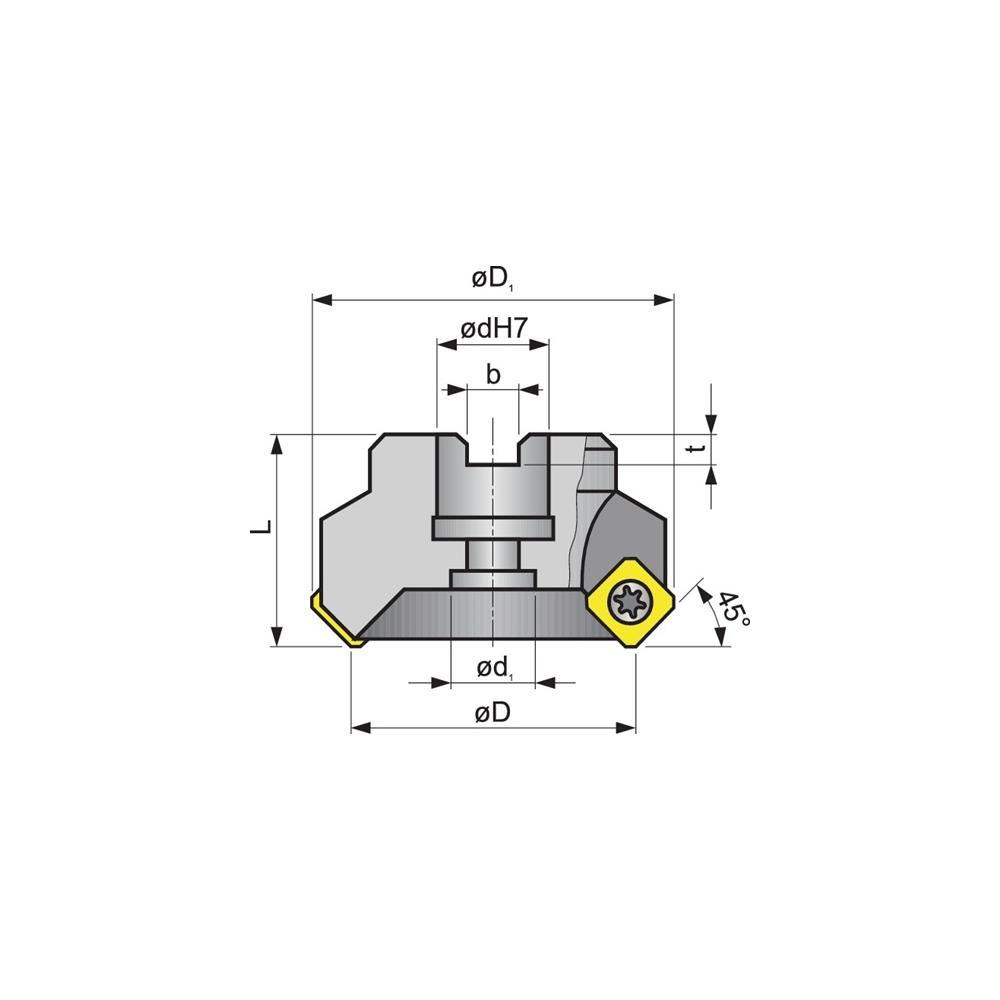

– Indexable insert: SE.. 1204 AF
– D: 80mm
– Ø d H7: 27mm
– b: 12.4mm
– L: 50mm
– d1: 38mm
– D1: 95mm
– t: 7.0mm Supplied with tightening screw, clamp screw, without screwdriver (size T20)
