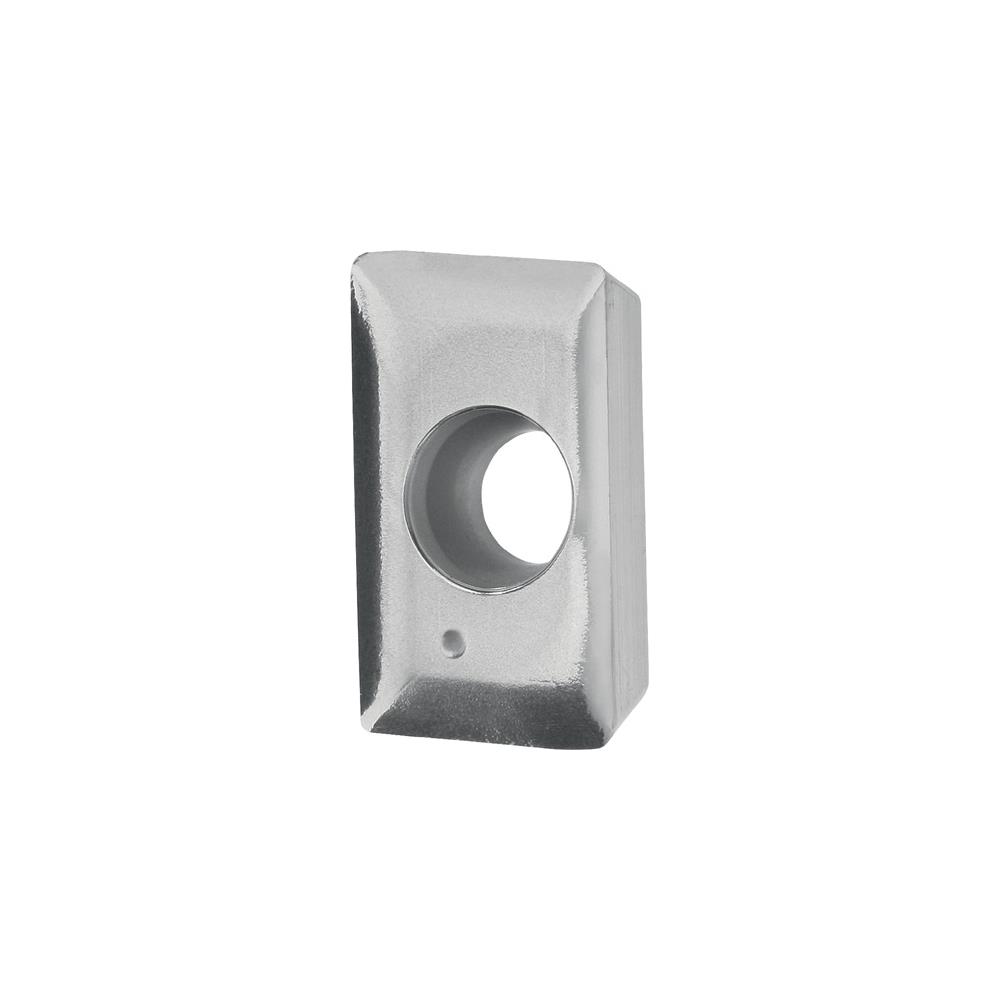

PROMAT Insert APKT160408FR-AL N20 aluminium machining

Chip breaker geometry AL = for aluminium processing Further technical information:

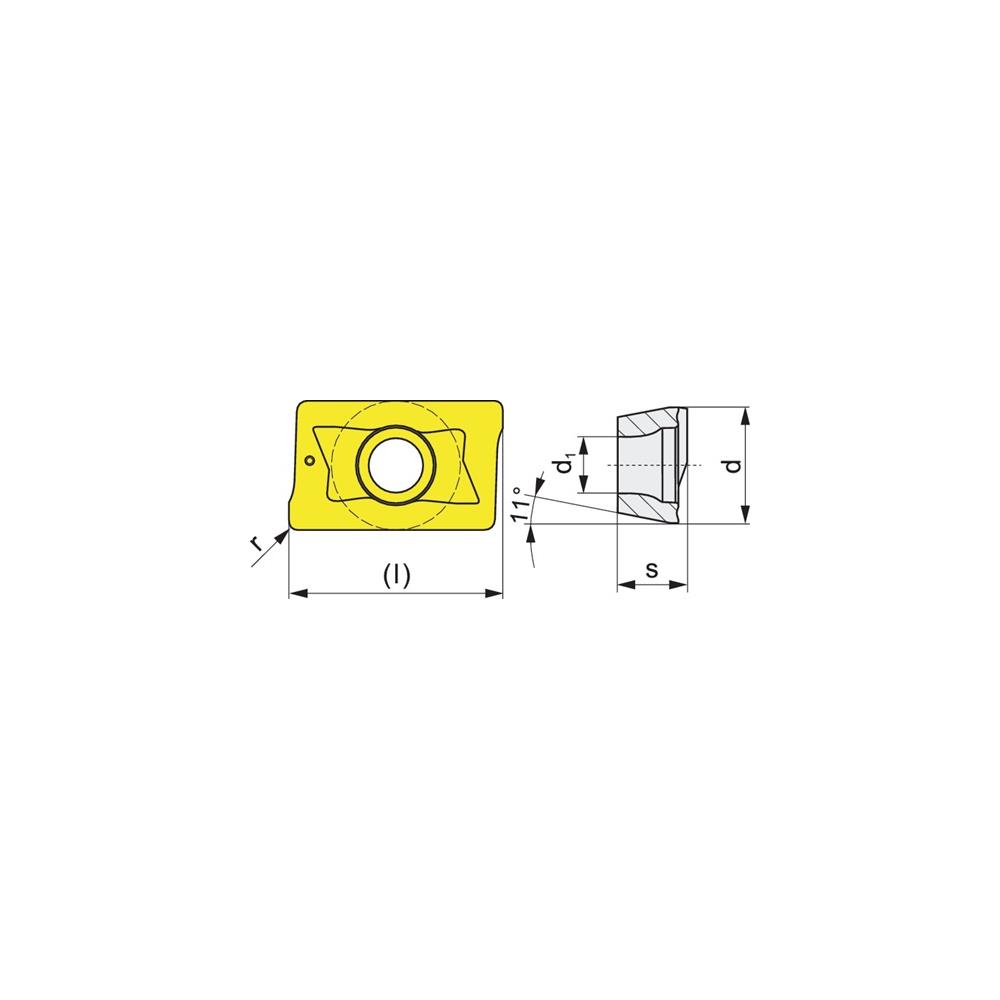

– d: 9.6mm
– Area of application: Aluminium processing
– r: 0.8mm
– d1: 4.5mm
– s: 4,76mm
– l: 17mm
– Max. feed rate: – mm/rev in steel / – mm/rev in stainless steel / – mm/rev in cast / 0.4 mm/rev in NI metals / – mm/rev in superalloys / – mm/rev in hardened steels
– Vc max.: – m/min in steel / – m/min in stainless / – m/min in cast / 525 m/min in NI metals / – m/min in superalloys / – m/min in hardened steels
– Vc min.: – m/min in steel / – m/min in stainless / – m/min in cast / 105 m/min in NI metals / – m/min in superalloys / – m/min in hardened steels
– Min. cutting depth: – mm in steel / – mm in stainless / – mm in cast / 0.8 mm in NI metals / – mm in superalloys / – mm in hardened steels
– Max. cutting depth: – mm in steel / – mm in stainless / – mm in cast / 15 mm in NI metals / – mm in superalloys / – mm in hardened steels
– Min. feed rate: – mm/rev in steel / – mm/rev in stainless steel / – mm/rev in cast / 0.05 mm/rev in NI metals / – mm/rev in superalloys / – mm/rev in hardened steels
