PROMAT Insert RDHX1003MOT PK25 copy milling cutter

For copy milling Further technical information:

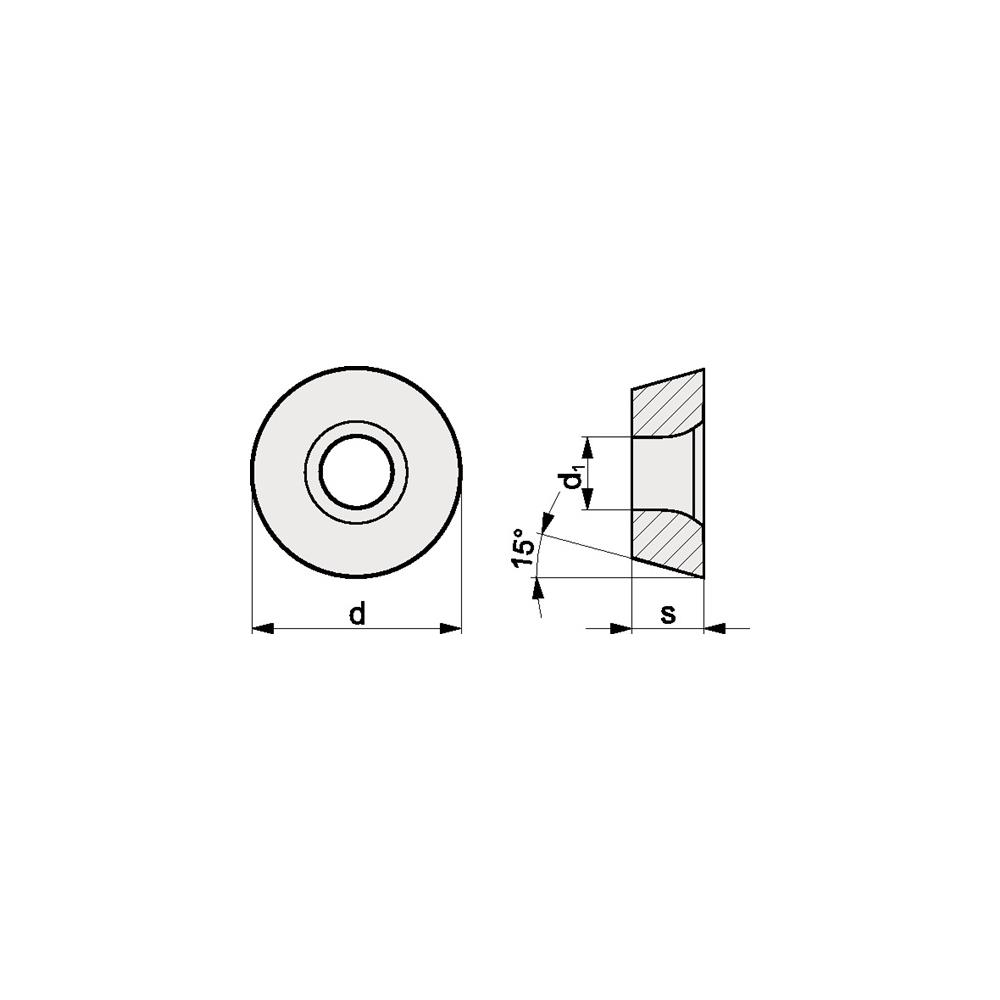

– d: 10mm
– Area of application: Copy milling
– d1: 3.9mm
– s: 3,18mm
– Max. feed rate: 0.3 mm/rev in steel / 0.23 mm/rev in stainless steel / 0.3 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / – mm/rev in hardened steels
– Vc max.: 295 m/min in steel / 175 m/min in stainless / 280 m/min in cast / – m/min in NI metals / – m/min in superalloys / – m/min in hardened steels
– Vc min.: 185 m/min in steel / 110 m/min in stainless / 175 m/min in cast / – m/min in NI metals / – m/min in superalloys / – m/min in hardened steels
– Min. cutting depth: 0.5 mm in steel / 0.5 mm in stainless / 0.5 mm in cast / – mm in NI metals / – mm in superalloys / – mm in hardened steels
– Max. cutting depth: 2.5 mm in steel / 1.9 mm in stainless / 2.5 mm in cast / – mm in NI metals / – mm in superalloys / – mm in hardened steels
– Min. feed rate: 0.1 mm/rev in steel / 0.1 mm/rev in stainless steel / 0.1 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / – mm/rev in hardened steels
