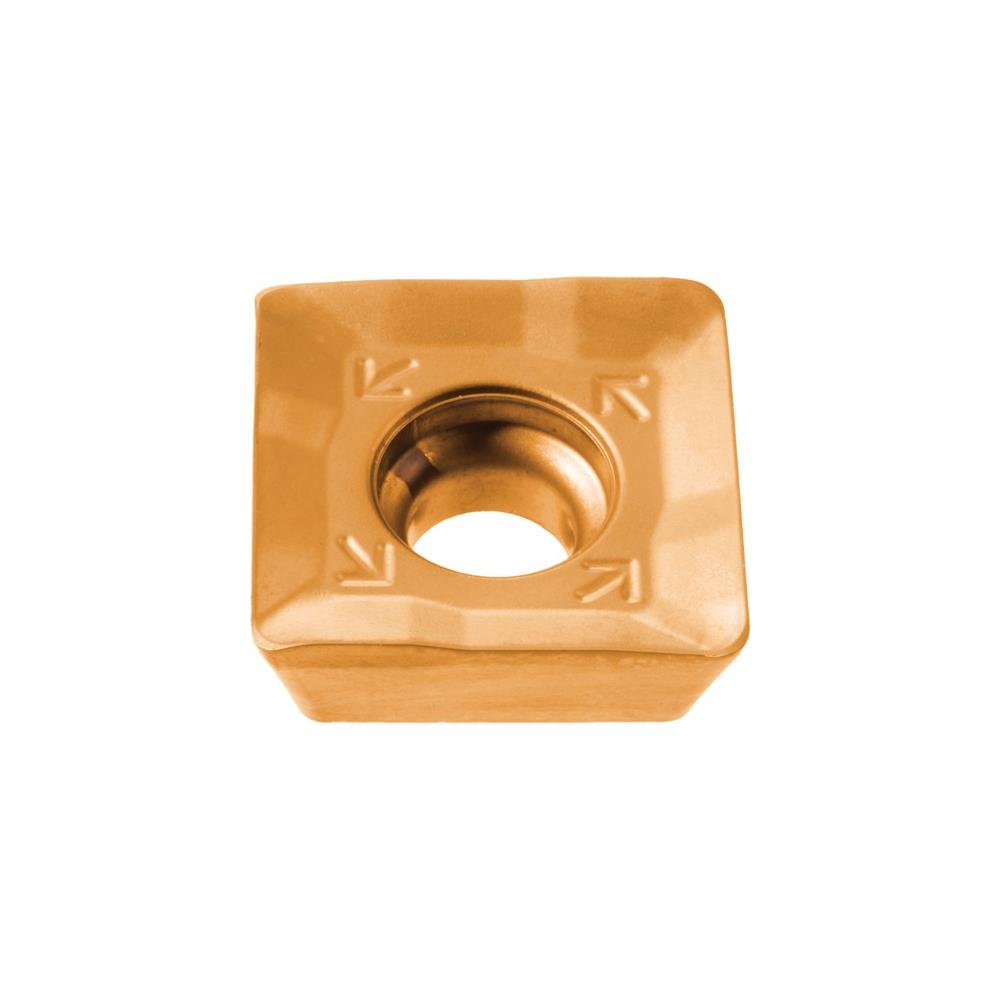

PROMAT Insert SDMT 120508SR-M PMK30 medium machining

Chip breaker geometry M = for medium processing Further technical information:

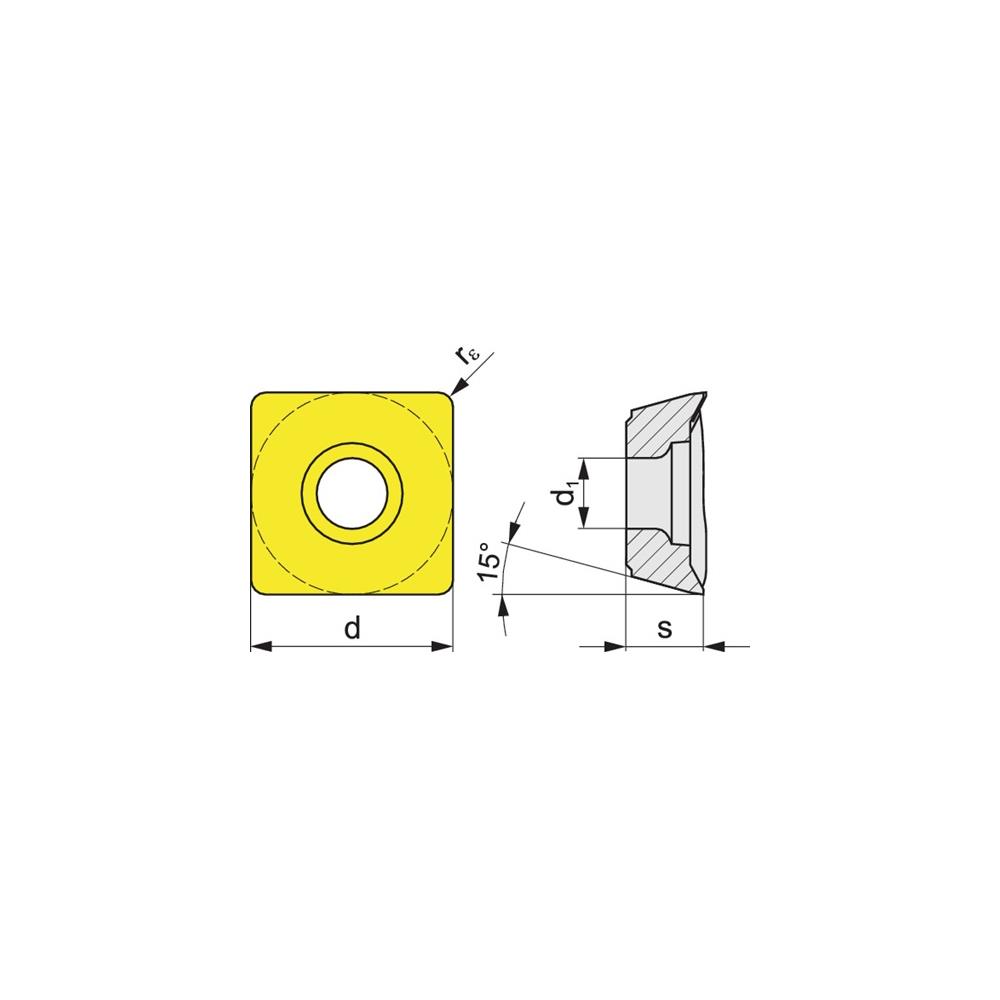

– d: 12.7mm
– Area of application: Medium processing
– r: 0.8mm
– d1: 4.4mm
– s: 5mm
– l: 12,7mm
– Max. feed rate: 0.25 mm/rev in steel / 0.25 mm/rev in stainless steel / 0.25 mm/rev in cast / 0.3 mm/rev in NI metals / 0.18 mm/rev in superalloys / – mm/rev in hardened steels
– Vc max.: 275 m/min in steel / 165 m/min in stainless / 260 m/min in cast / 960 m/min in NI metals / 80 m/min in superalloys / – m/min in hardened steels
– Vc min.: 195 m/min in steel / 115 m/min in stainless / 185 m/min in cast / 290 m/min in NI metals / 40 m/min in superalloys / – m/min in hardened steels
– Min. cutting depth: 1 mm in steel / 1 mm in stainless / 1 mm in cast / 1 mm in NI metals / 1 mm in superalloys / – mm in hardened steels
– Max. cutting depth: 10 mm in steel / 10 mm in stainless / 10 mm in cast / 10 mm in NI metals / 8 mm in superalloys / – mm in hardened steels
– Min. feed rate: 0.1 mm/rev in steel / 0.1 mm/rev in stainless steel / 0.1 mm/rev in cast / 0.1 mm/rev in NI metals / 0.1 mm/rev in superalloys / – mm/rev in hardened steels
