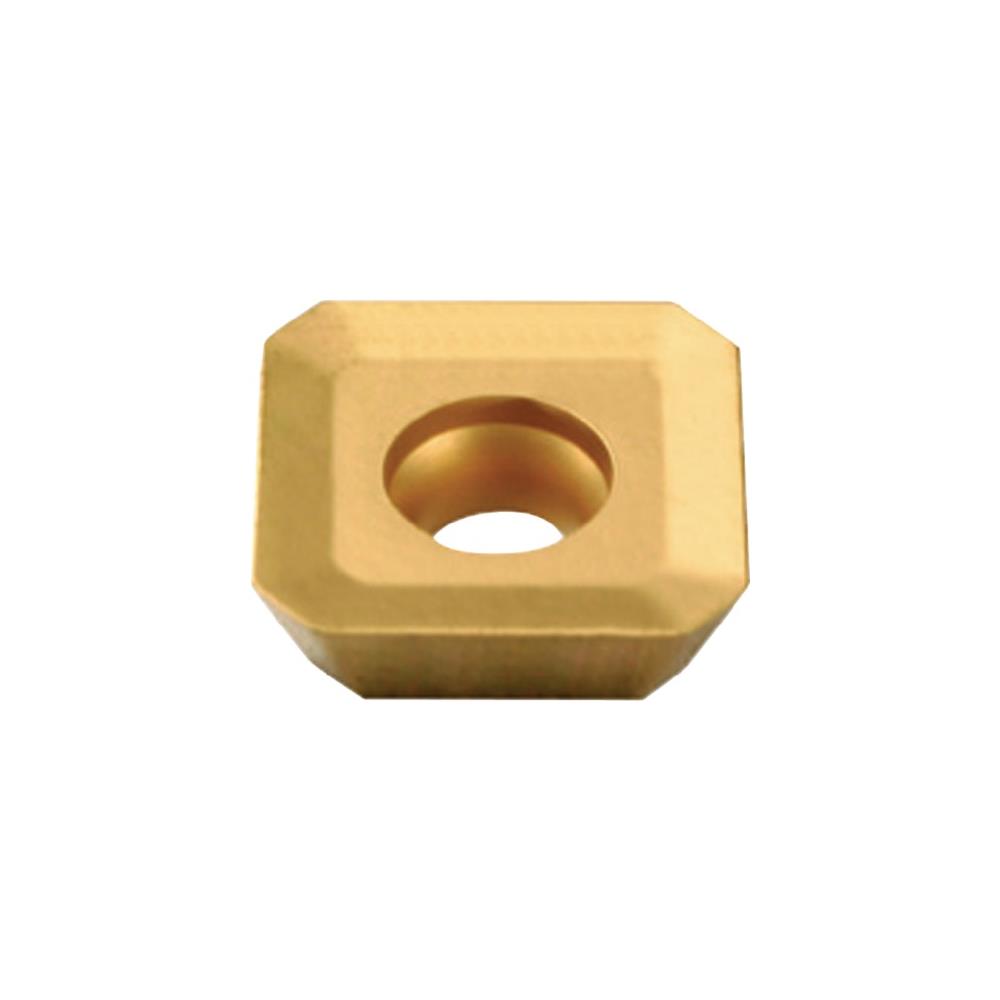

PROMAT Insert SEET1204AFSN-M PMK30 medium machining

Chip breaker geometry M = for medium processing Further technical information:

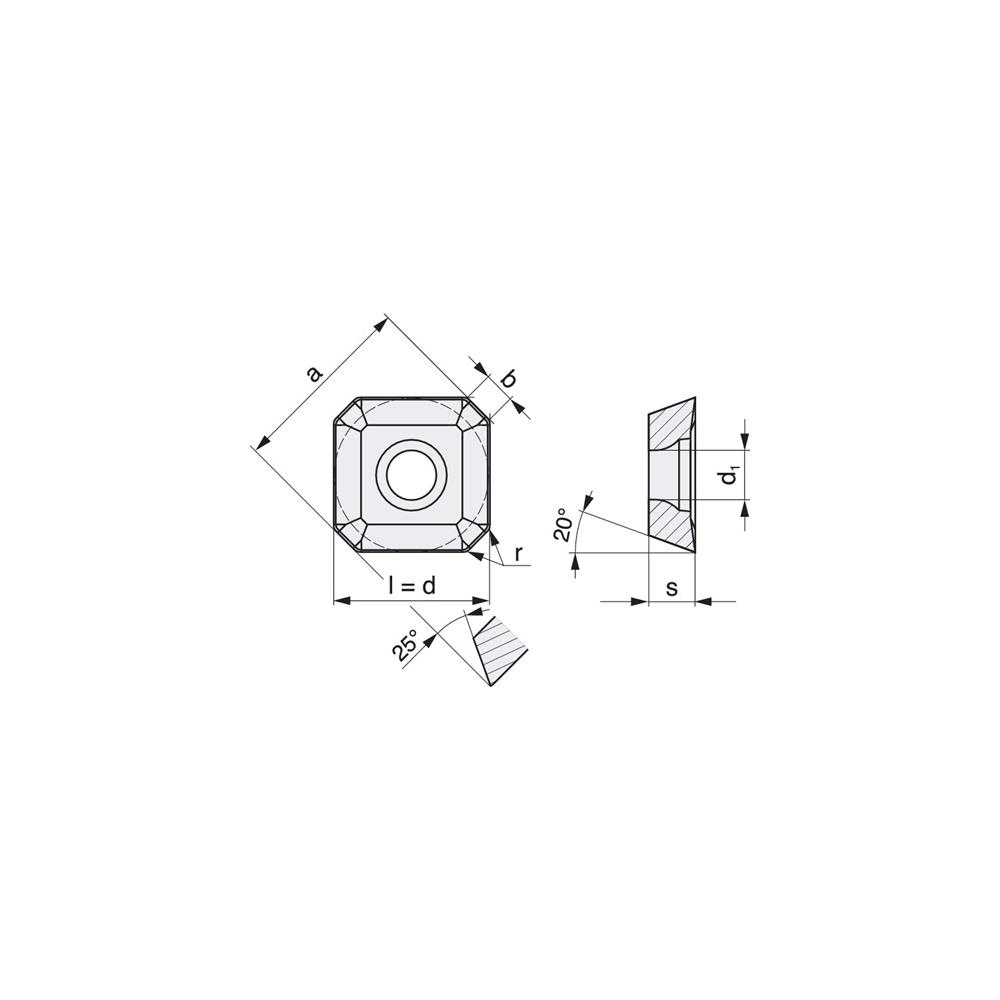

– d: 12.7mm
– Area of application: Medium processing
– d1: 5.5mm
– s: 4,76mm
– l: 12,7mm
– Max. feed rate: 0.4 mm/rev in steel / 0.4 mm/rev in stainless steel / 0.4 mm/rev in cast / – mm/rev in NI metals / 0.28 mm/rev in superalloys / 0.15 mm/rev in hardened steels
– Vc max.: 280 m/min in steel / 165 m/min in stainless / 265 m/min in cast / – m/min in NI metals / 80 m/min in superalloys / 55 m/min in hardened steels
– Vc min.: 215 m/min in steel / 125 m/min in stainless / 200 m/min in cast / – m/min in NI metals / 45 m/min in superalloys / 40 m/min in hardened steels
– Min. cutting depth: 1 mm in steel / 1 mm in stainless / 1 mm in cast / – mm in NI metals / 1 mm in superalloys / 0.1 mm in hardened steels
– Max. cutting depth: 6.5 mm in steel / 6.5 mm in stainless / 6.5 mm in cast / – mm in NI metals / 4.9 mm in superalloys / 1.5 mm in hardened steels
– Min. feed rate: 0.2 mm/rev in steel / 0.2 mm/rev in stainless steel / 0.2 mm/rev in cast / – mm/rev in NI metals / 0.2 mm/rev in superalloys / 0.05 mm/rev in hardened steels
