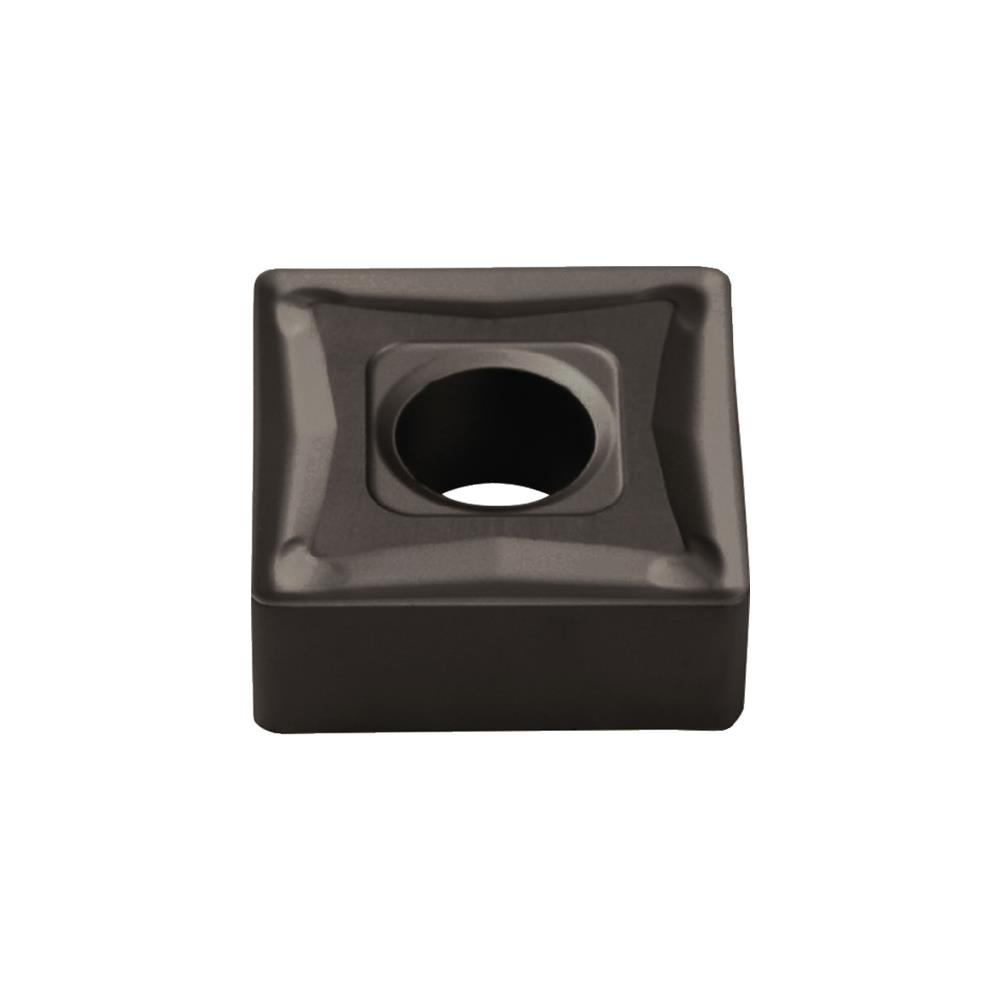

PROMAT Insert SNMG120412-M PMK10 medium machining

For medium processing = M Further technical information:
– d: 12.7mm
– Area of application: Medium processing
– r: 1.2mm
– d1: 5.16mm
– s: 4,76mm
– l: 12,7mm
– Max. feed rate: 0.8 mm/rev in steel / – mm/rev in stainless steel / 0.8 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / 0.2 mm/rev in hardened steels
– Vc max.: 350 m/min in steel / – m/min in stainless / 330 m/min in cast / – m/min in NI metals / – m/min in superalloys / 70 m/min in hardened steels
– Vc min.: 260 m/min in steel / – m/min in stainless / 245 m/min in cast / – m/min in NI metals / – m/min in superalloys / 50 m/min in hardened steels
– Min. cutting depth: 1.2 mm in steel / – mm in stainless / 1.2 mm in cast / – mm in NI metals / – mm in superalloys / 0.3 mm in hardened steels
– Max. cutting depth: 6 mm in steel / – mm in stainless / 6 mm in cast / – mm in NI metals / – mm in superalloys / 1.5 mm in hardened steels
– Min. feed rate: 0.17 mm/rev in steel / – mm/rev in stainless steel / 0.17 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / 0.1 mm/rev in hardened steels
