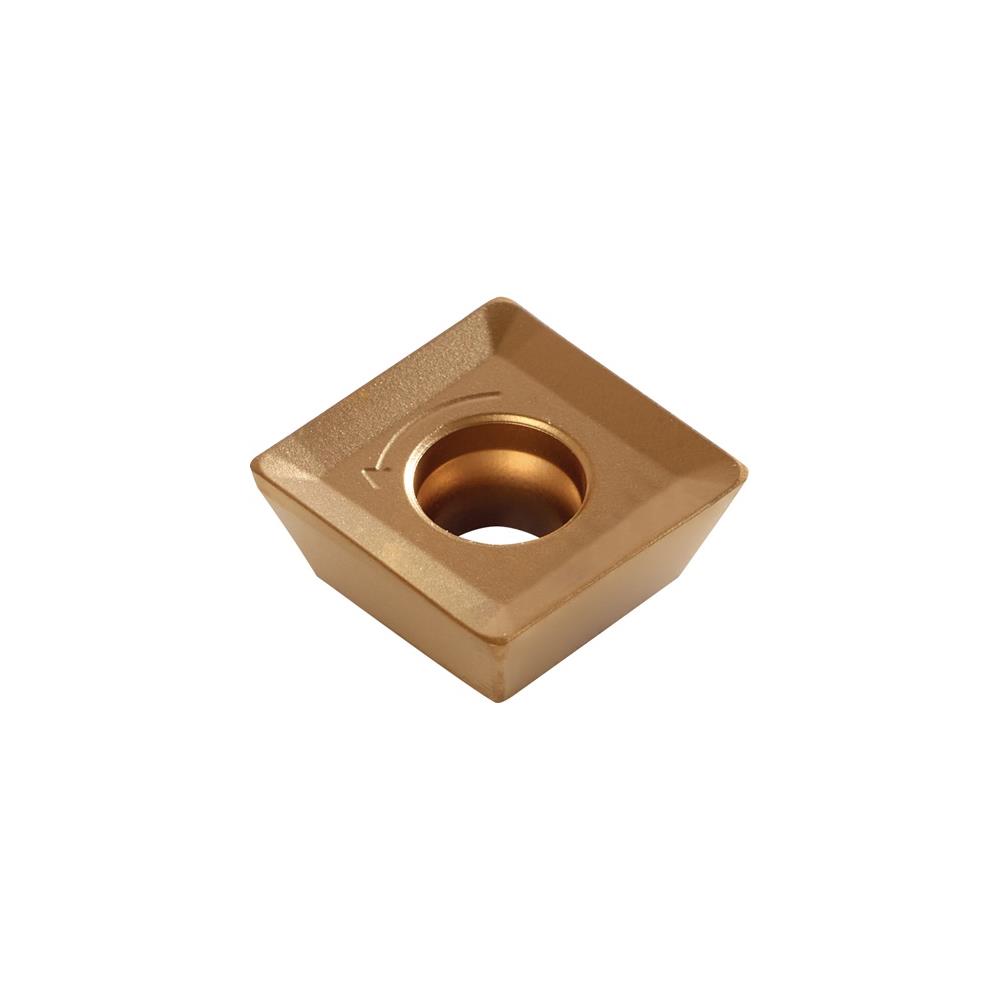

PROMAT Insert SOMT09T304-M PMK30 medium machining

Chip breaker geometry M = for medium processing Further technical information:

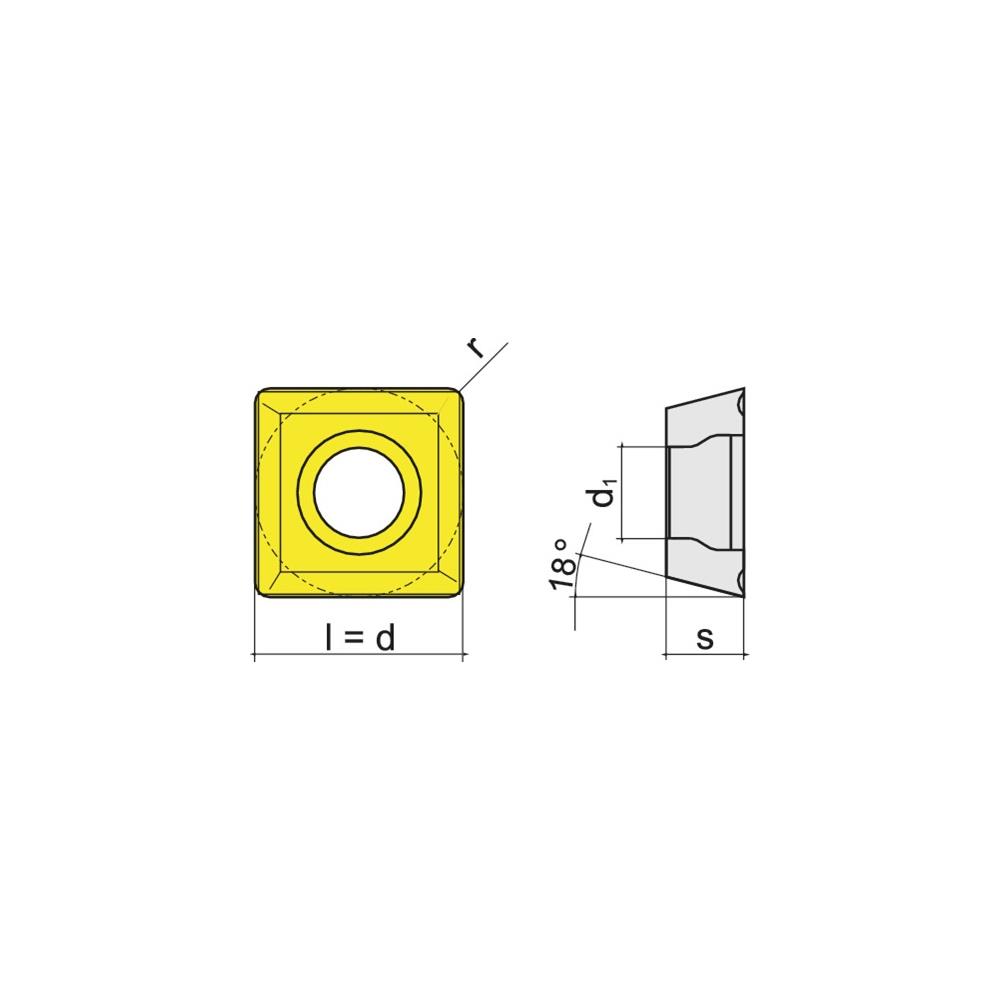

– d: 9.55mm
– Area of application: Medium processing
– r: 0.4mm
– d1: 3.5mm
– s: 3,97mm
– l: 9,55mm
– Max. feed rate: 0.35 mm/rev in steel / 0.35 mm/rev in stainless steel / 0.35 mm/rev in cast / 0.42 mm/rev in NI metals / 0.25 mm/rev in superalloys / – mm/rev in hardened steels
– Vc max.: 265 m/min in steel / 155 m/min in stainless / 250 m/min in cast / 925 m/min in NI metals / 75 m/min in superalloys / – m/min in hardened steels
– Vc min.: 165 m/min in steel / 95 m/min in stainless / 155 m/min in cast / 245 m/min in NI metals / 35 m/min in superalloys / – m/min in hardened steels
– Min. cutting depth: 0.5 mm in steel / 0.5 mm in stainless / 0.5 mm in cast / 0.5 mm in NI metals / 0.5 mm in superalloys / – mm in hardened steels
– Max. cutting depth: 8 mm in steel / 8 mm in stainless / 8 mm in cast / 8 mm in NI metals / 6 mm in superalloys / – mm in hardened steels
– Min. feed rate: 0.08 mm/rev in steel / 0.08 mm/rev in stainless steel / 0.08 mm/rev in cast / 0.08 mm/rev in NI metals / 0.08 mm/rev in superalloys / – mm/rev in hardened steels
