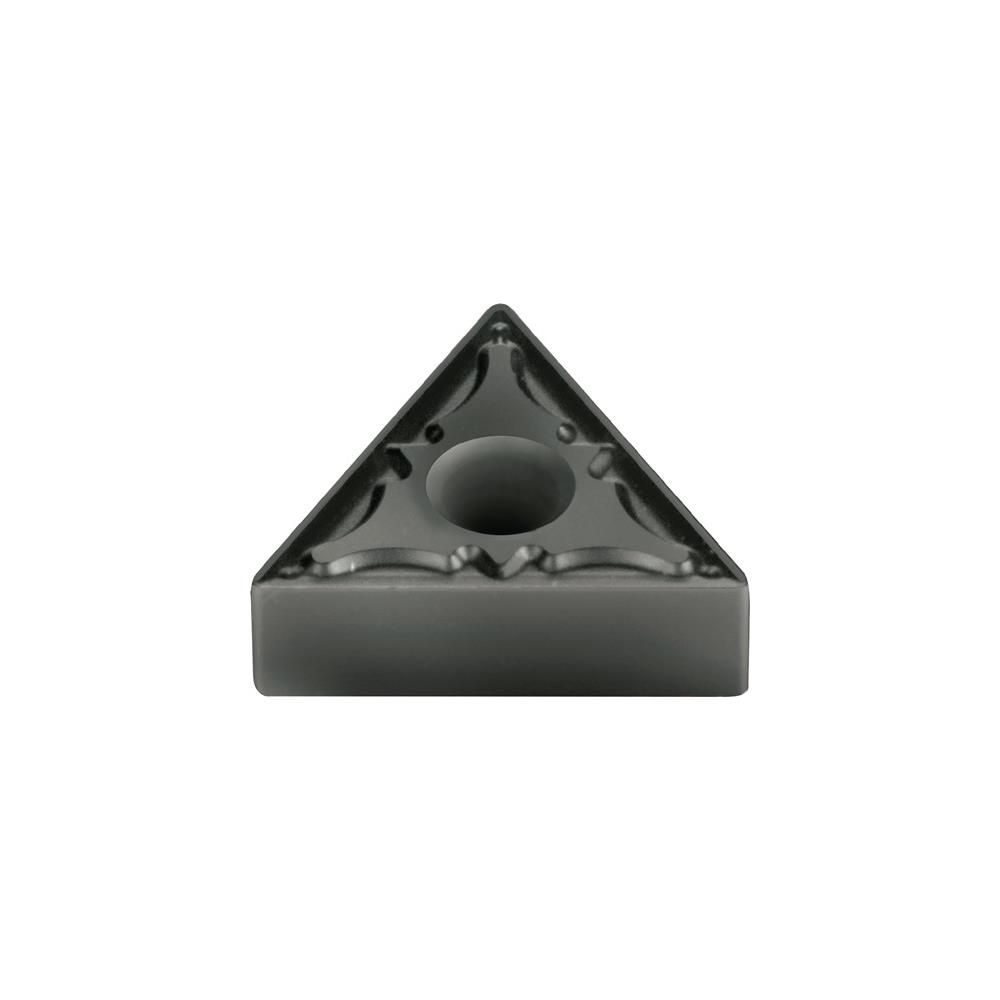

PROMAT Insert TNMG160404-M PMK10 medium machining

For medium processing = M Further technical information:

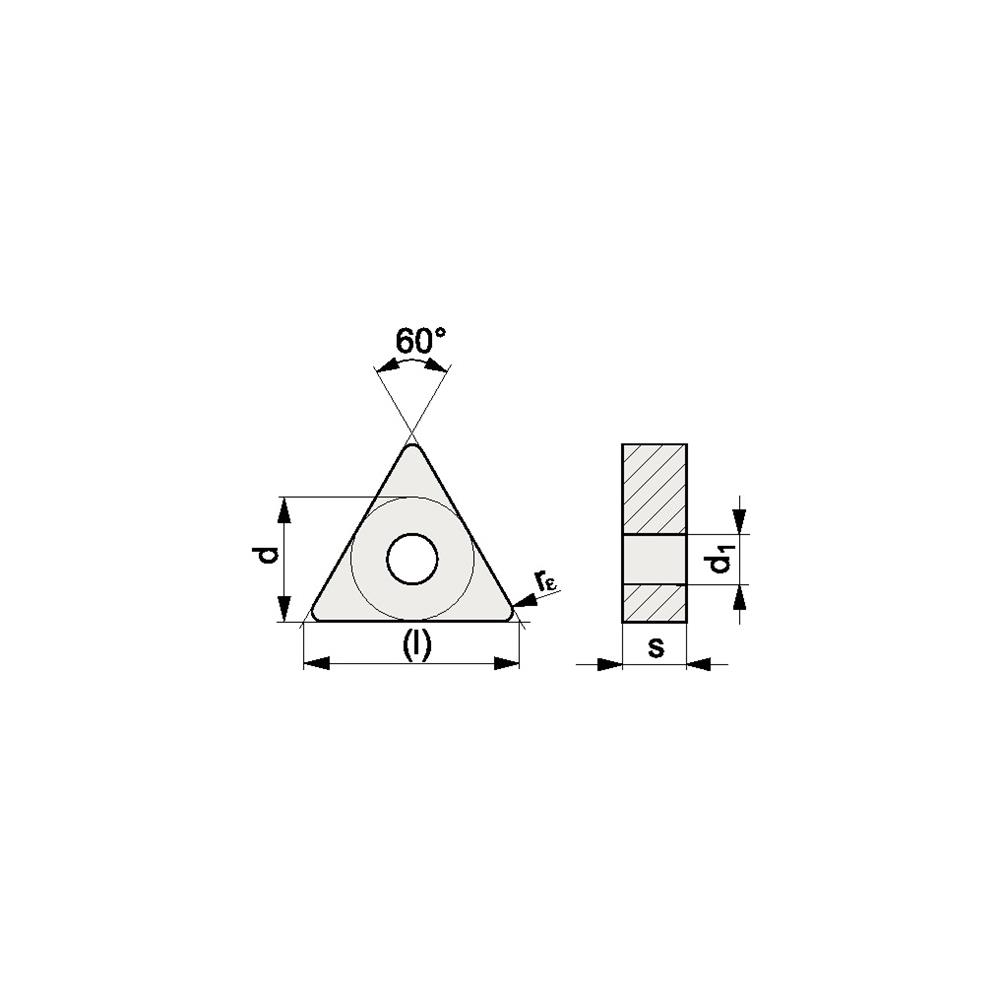

– d: 9.525mm
– Area of application: Medium processing
– r: 0.4mm
– d1: 3.81mm
– s: 4,76mm
– l: 16,5mm
– Max. feed rate: 0.24 mm/rev in steel / – mm/rev in stainless steel / 0.24 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / 0.2 mm/rev in hardened steels
– Vc max.: 235 m/min in steel / – m/min in stainless / 220 m/min in cast / – m/min in NI metals / – m/min in superalloys / 45 m/min in hardened steels
– Vc min.: 200 m/min in steel / – m/min in stainless / 190 m/min in cast / – m/min in NI metals / – m/min in superalloys / 40 m/min in hardened steels
– Min. cutting depth: 0.8 mm in steel / – mm in stainless / 0.8 mm in cast / – mm in NI metals / – mm in superalloys / 0.3 mm in hardened steels
– Max. cutting depth: 3 mm in steel / – mm in stainless / 3 mm in cast / – mm in NI metals / – mm in superalloys / 1.5 mm in hardened steels
– Min. feed rate: 0.17 mm/rev in steel / – mm/rev in stainless steel / 0.17 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / 0.1 mm/rev in hardened steels
