PROMAT Insert TNMG160408-M PMK10 medium machining

For medium processing = M Further technical information:

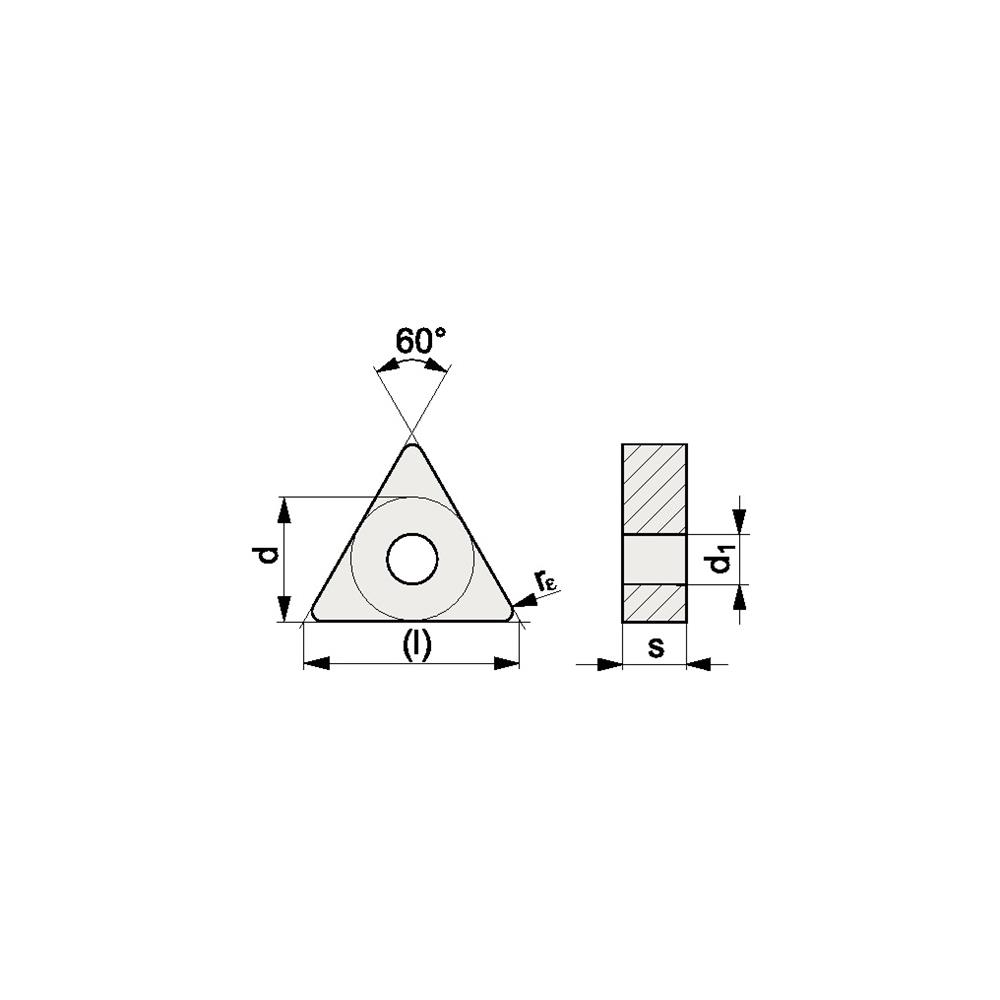

– d: 9.525mm
– Area of application: Medium processing
– r: 0.8mm
– d1: 3.81mm
– s: 4,76mm
– l: 16,5mm
– Max. feed rate: 0.48 mm/rev in steel / – mm/rev in stainless steel / 0.48 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / 0.2 mm/rev in hardened steels
– Vc max.: 285 m/min in steel / – m/min in stainless / 270 m/min in cast / – m/min in NI metals / – m/min in superalloys / 55 m/min in hardened steels
– Vc min.: 210 m/min in steel / – m/min in stainless / 195 m/min in cast / – m/min in NI metals / – m/min in superalloys / 40 m/min in hardened steels
– Min. cutting depth: 0.8 mm in steel / – mm in stainless / 0.8 mm in cast / – mm in NI metals / – mm in superalloys / 0.3 mm in hardened steels
– Max. cutting depth: 5 mm in steel / – mm in stainless / 5 mm in cast / – mm in NI metals / – mm in superalloys / 1.5 mm in hardened steels
– Min. feed rate: 0.15 mm/rev in steel / – mm/rev in stainless steel / 0.15 mm/rev in cast / – mm/rev in NI metals / – mm/rev in superalloys / 0.1 mm/rev in hardened steels
