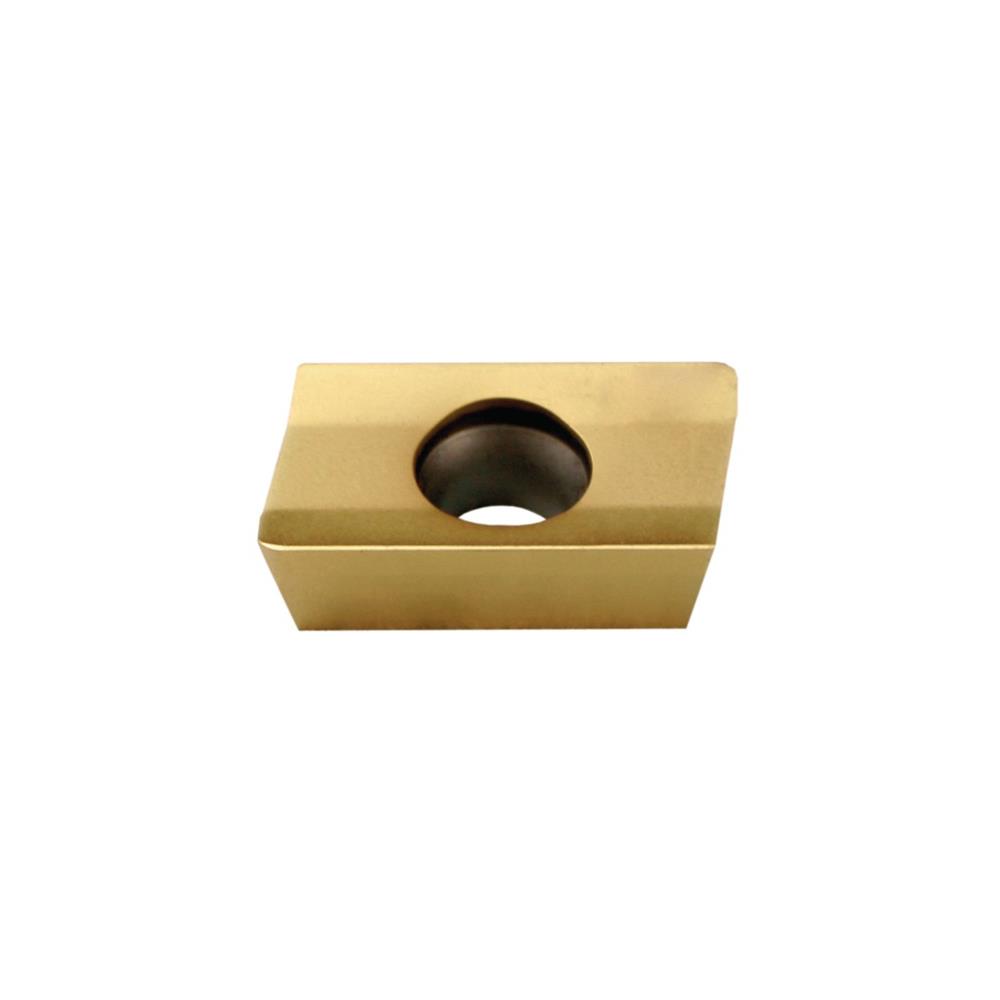

PROMAT Insert XPHT160412S-M PMK30 medium machining

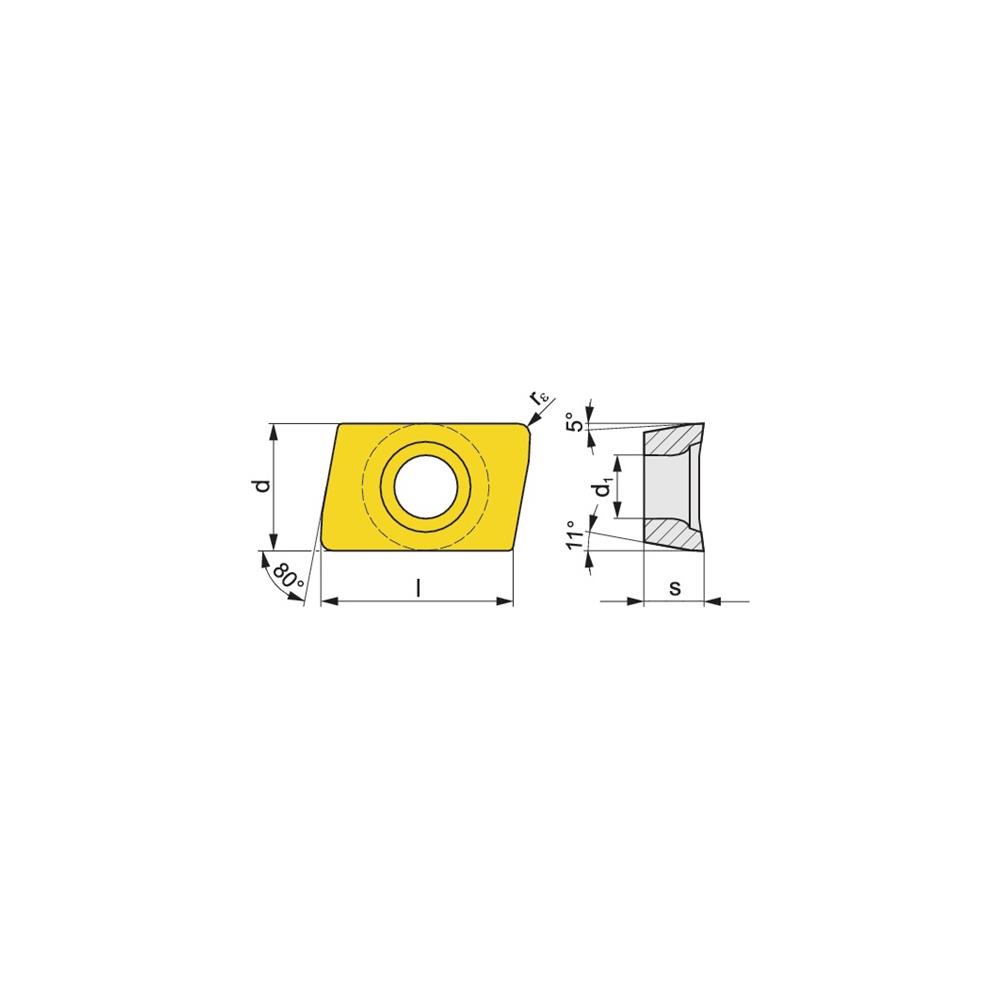

Chip breaker geometry M = for medium processing Further technical information:
– d: 9.525mm
– Area of application: Medium processing
– d1: 4.4mm
– s: 4,76mm
– l: 15,88mm
– Max. feed rate: 0.3 mm/rev in steel / 0.3 mm/rev in stainless steel / 0.3 mm/rev in cast / – mm/rev in NI metals / 0.21 mm/rev in superalloys / – mm/rev in hardened steels
– Vc max.: 255 m/min in steel / 150 m/min in stainless / 240 m/min in cast / – m/min in NI metals / 75 m/min in superalloys / – m/min in hardened steels
– Vc min.: 170 m/min in steel / 100 m/min in stainless / 160 m/min in cast / – m/min in NI metals / 35 m/min in superalloys / – m/min in hardened steels
– Min. cutting depth: 1.2 mm in steel / 1.2 mm in stainless / 1.2 mm in cast / – mm in NI metals / 1.2 mm in superalloys / – mm in hardened steels
– Max. cutting depth: 15 mm in steel / 15 mm in stainless / 15 mm in cast / – mm in NI metals / 12 mm in superalloys / – mm in hardened steels
– Min. feed rate: 0.1 mm/rev in steel / 0.1 mm/rev in stainless steel / 0.1 mm/rev in cast / – mm/rev in NI metals / 0.1 mm/rev in superalloys / – mm/rev in hardened steels
