PROMAT Machine tap DIN 371C AL M3 x 0.5 mm HSS-Co 6H
Sale ends in:
Machine tap DIN 371C AL M3 x 0.5 mm HSS-Co 6H
Machine tap DIN 371C AL M3 x 0.5
PRODUCT DESCRIPTION
HSS-Co

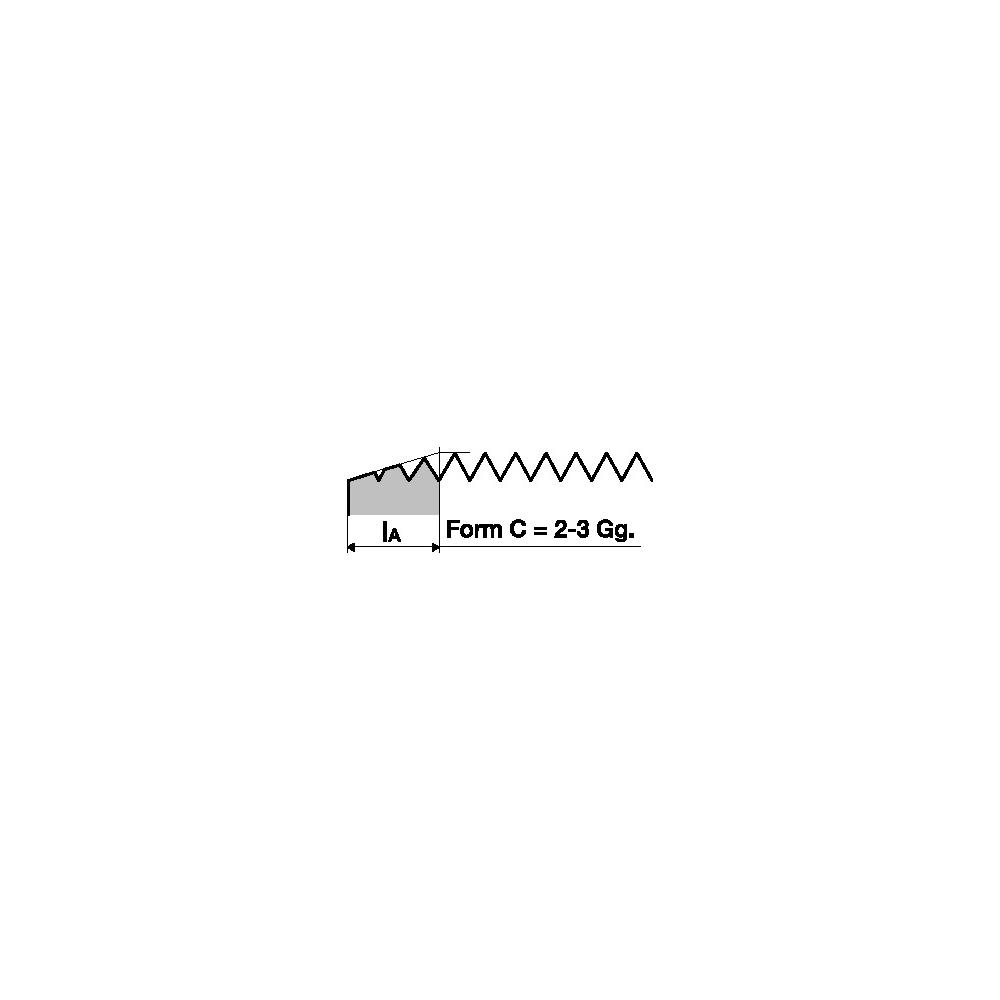

– Shape C
– Type AL
– Yellow ring
– With 45° right twist
– Flanks relief-ground
– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range ISO2 (6H)
– For blind hole threads
– For long-chipping, soft materials Further technical information:
– Shank Ø: 3.5mm
Standard: DIN 371
Nominal thread Ø: M3
Pitch: 0,5 mm
Overall length: 56 mm
Thread length: 10 mm
Square: 2.7 mm
Core hole Ø: 2,5 mm
Type: AL
Shape: C
Tolerance range: 6H
Cutting material: HSS-Co
Scope of delivery:
1,00 ST Machine tap DIN 371C AL M3 x 0.5 mm HSS-Co 6H
Nominal thread Ø: M3
Pitch: 0,5 mm
Overall length: 56 mm
Thread length: 10 mm
Square: 2.7 mm
Core hole Ø: 2,5 mm
Type: AL
Shape: C
Tolerance range: 6H
Cutting material: HSS-Co
Scope of delivery:
1,00 ST Machine tap DIN 371C AL M3 x 0.5 mm HSS-Co 6H
