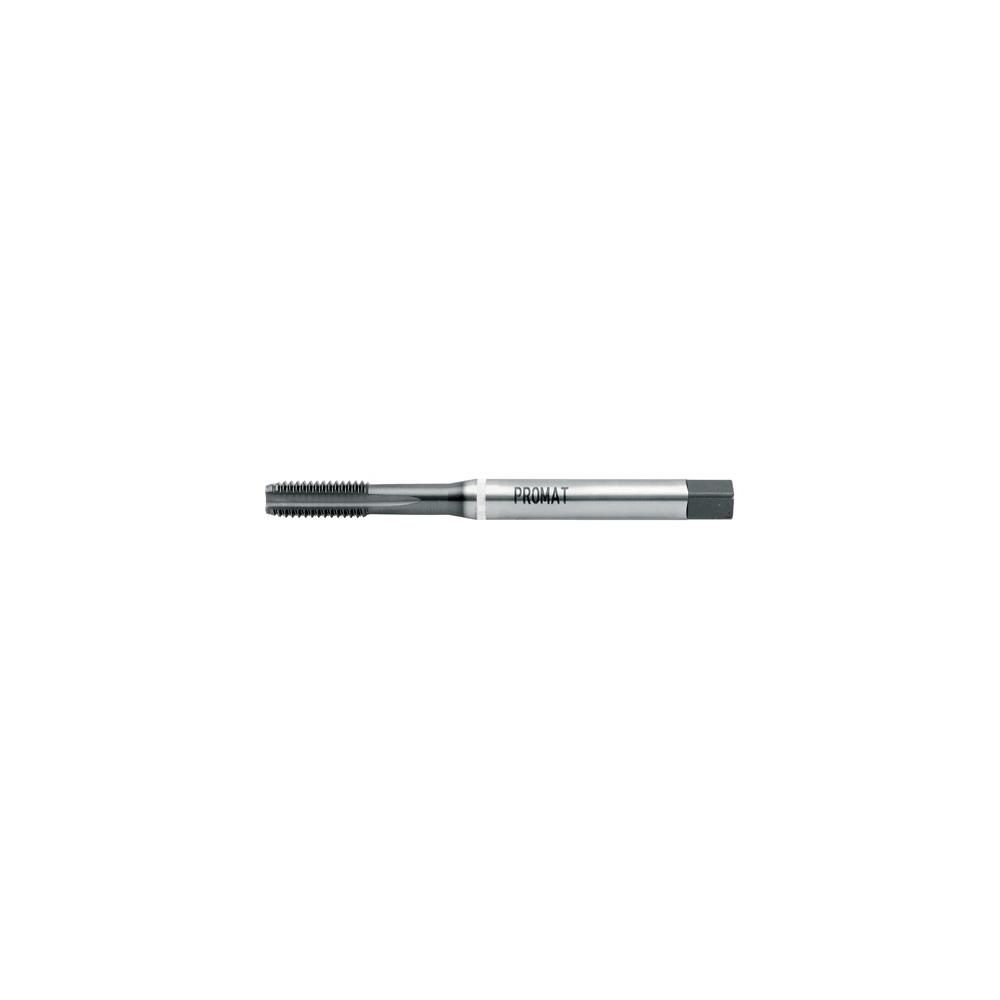

PROMAT Machine tap DIN 371C GG M10 x 1.5 mm HSS-Co TiCN 6HX
Sale ends in:
Machine tap DIN 371C GG M10 x 1.5 mm HSS-Co TiCN 6HX
Machine tap DIN 371C GG M10 x 1.5
PRODUCT DESCRIPTION
HSS-Co

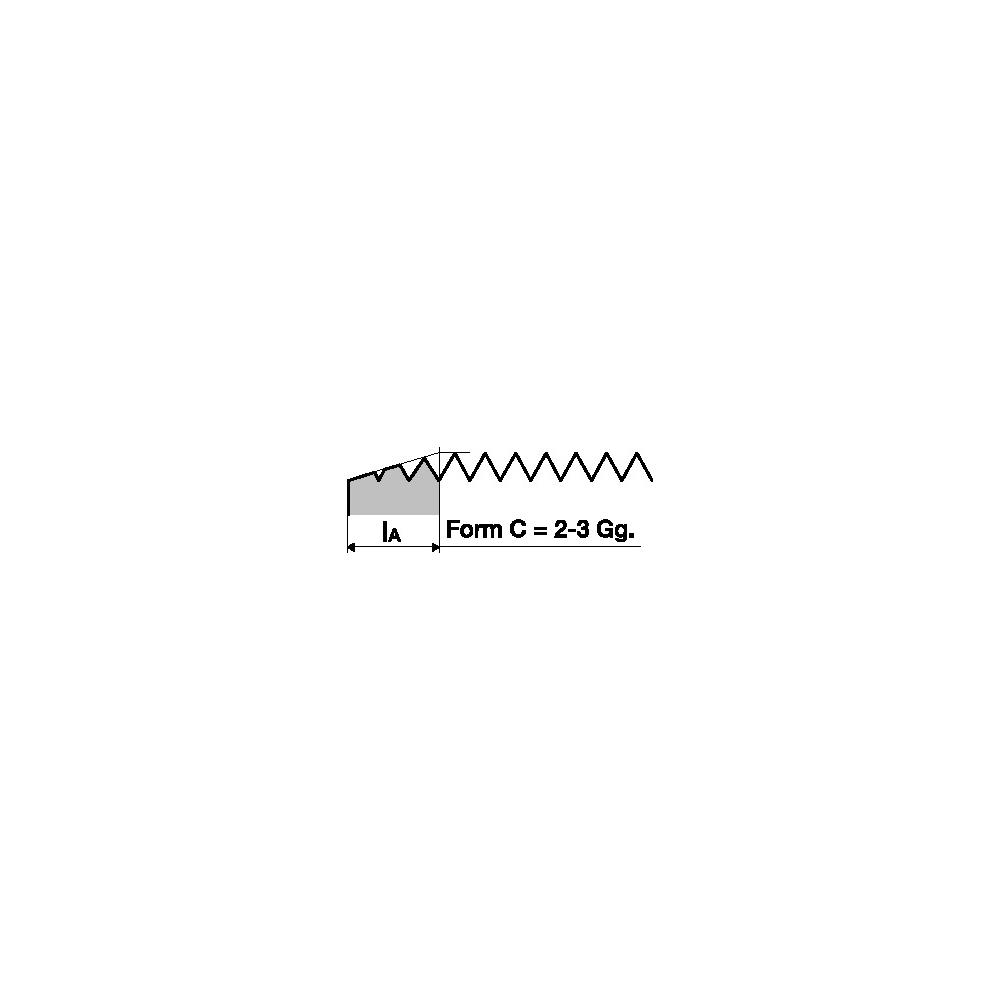

– Shape C
– Type GG
– TiCN-coated
– White ring
– Straight-fluted
– Flanks relief-ground
– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range 6HX
– For through-hole and blind-hole threads
– For grey cast iron, graphite castings, malleable cast iron Further technical information:
– Shank Ø: 10mm
Standard: DIN 371
Nominal thread Ø: M10
Pitch: 1,5 mm
Overall length: 100 mm
Thread length: 15 mm
Square: 8 mm
Core hole Ø: 8,5 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
Cut
Scope of delivery:
1,00 ST Machine tap DIN 371C GG M10 x 1.5 mm HSS-Co TiCN 6HX
Nominal thread Ø: M10
Pitch: 1,5 mm
Overall length: 100 mm
Thread length: 15 mm
Square: 8 mm
Core hole Ø: 8,5 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
Cut
Scope of delivery:
1,00 ST Machine tap DIN 371C GG M10 x 1.5 mm HSS-Co TiCN 6HX
