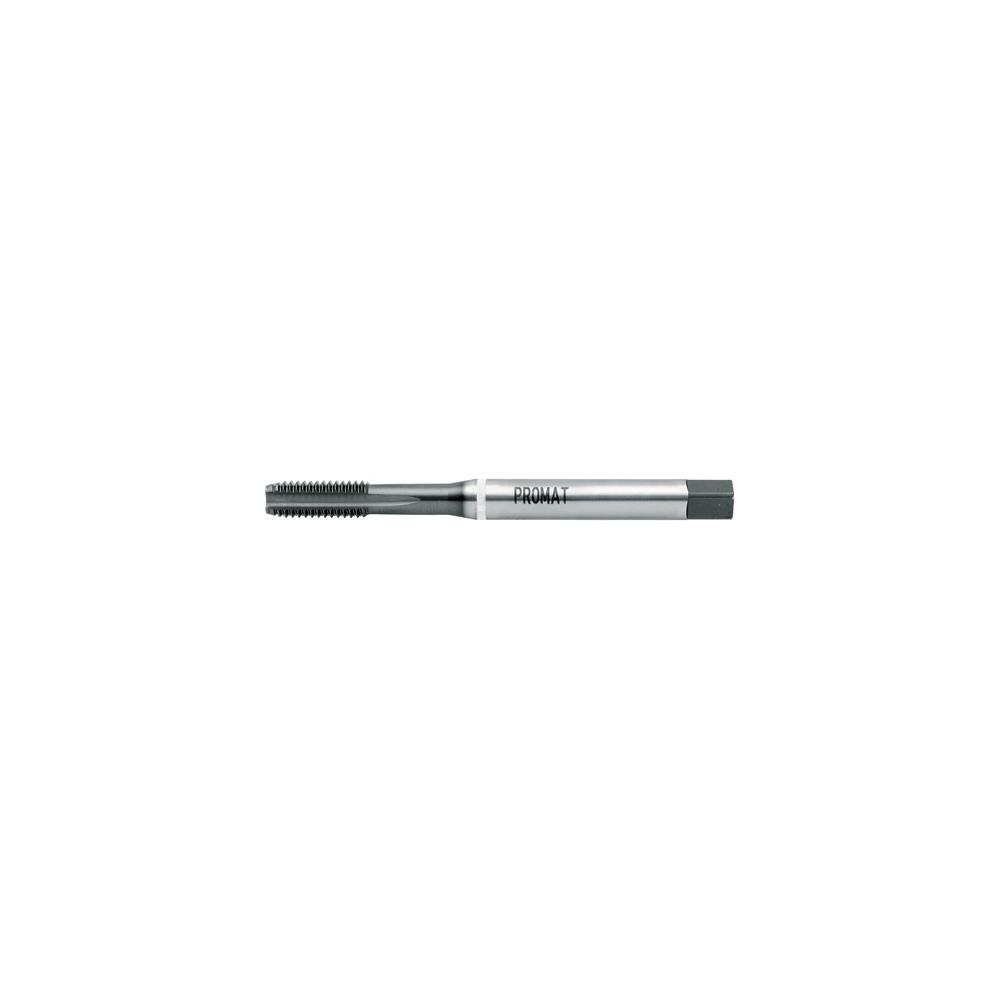

PROMAT Machine tap DIN 371C GG M3 x 0.5 mm HSS-Co TiCN 6HX
Sale ends in:
Machine tap DIN 371C GG M3 x 0.5 mm HSS-Co TiCN 6HX
Machine tap DIN 371C GG M3 x 0.5
PRODUCT DESCRIPTION
HSS-Co
– Shape C
– Type GG
– TiCN-coated
– White ring
– Straight-fluted
– Flanks relief-ground

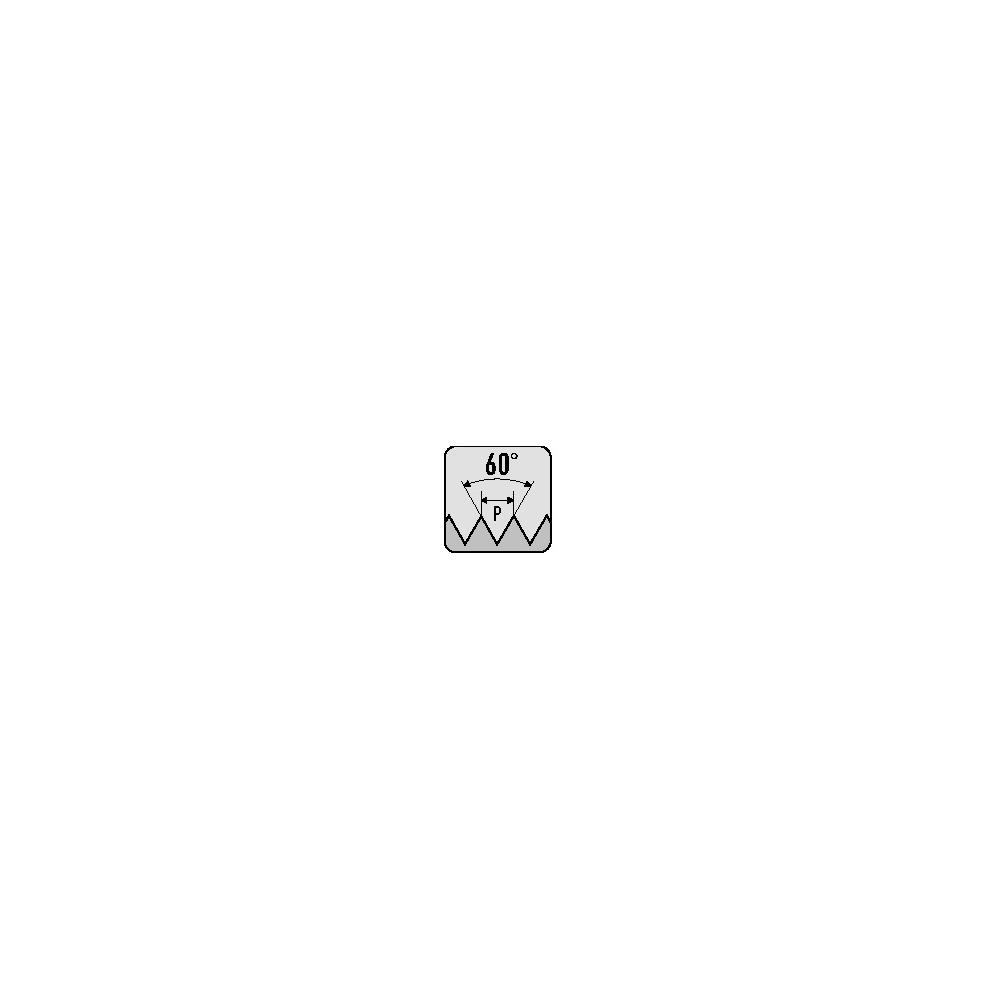

– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range 6HX
– For through-hole and blind-hole threads
– For grey cast iron, graphite castings, malleable cast iron Further technical information:
– Shank Ø: 3.5mm
Standard: DIN 371
Nominal thread Ø: M3
Pitch: 0,5 mm
Overall length: 56 mm
Thread length: 5 mm
Square: 2.7 mm
Core hole Ø: 2,5 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
Cutt
Scope of delivery:
1,00 ST Machine tap DIN 371C GG M3 x 0.5 mm HSS-Co TiCN 6HX
Nominal thread Ø: M3
Pitch: 0,5 mm
Overall length: 56 mm
Thread length: 5 mm
Square: 2.7 mm
Core hole Ø: 2,5 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
Cutt
Scope of delivery:
1,00 ST Machine tap DIN 371C GG M3 x 0.5 mm HSS-Co TiCN 6HX
