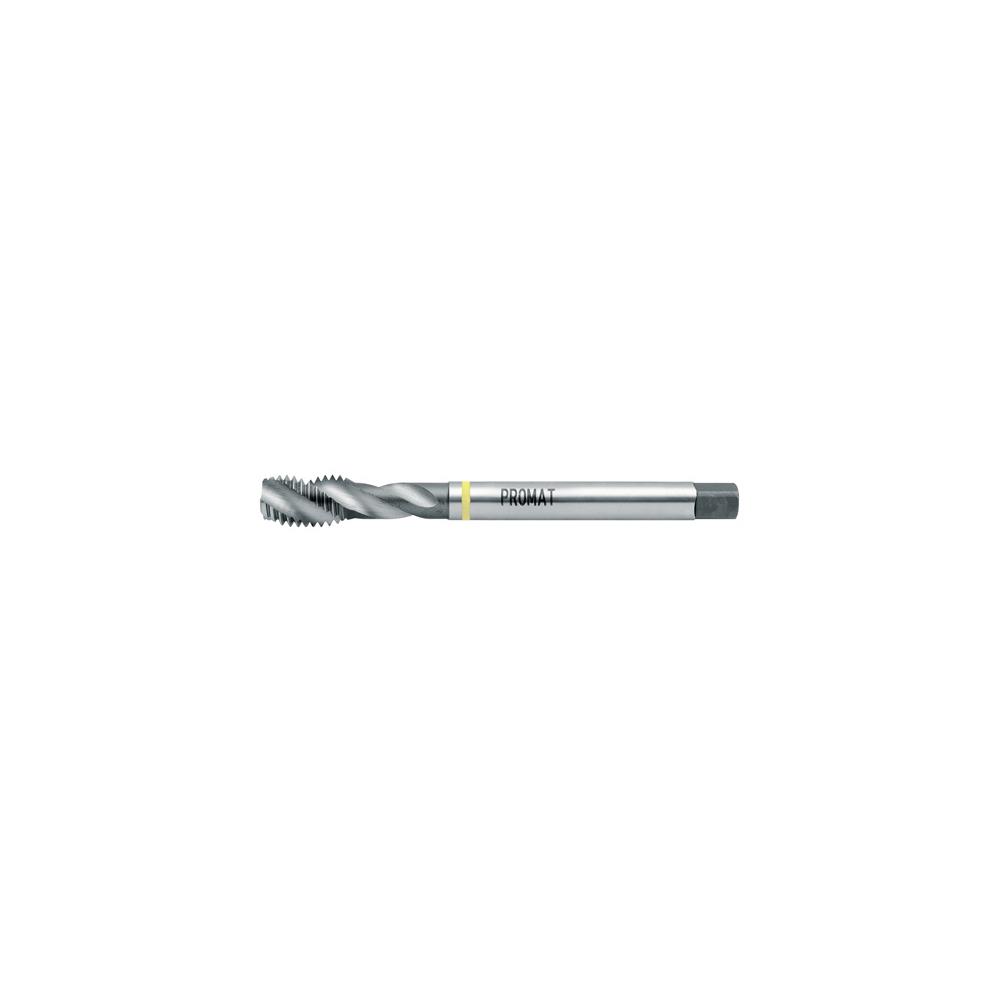

PROMAT Machine tap DIN 376C AL M18 x 2.5 mm HSS-Co 6H
Sale ends in:
Machine tap DIN 376C AL M18 x 2.5 mm HSS-Co 6H
Machine tap DIN 376C AL M18 x 2.5
PRODUCT DESCRIPTION
HSS-Co

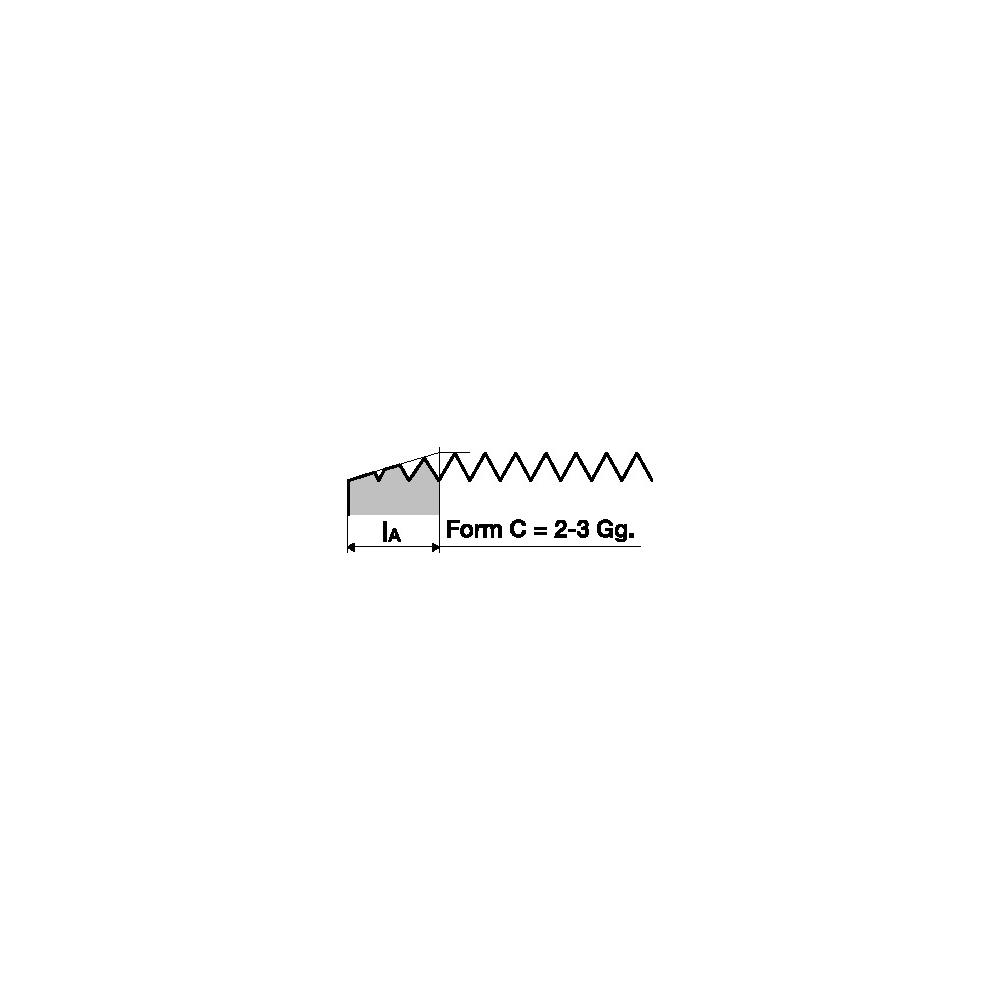

– Shape C
– Type AL
– Yellow ring
– With 45° right twist
– Flanks relief-ground

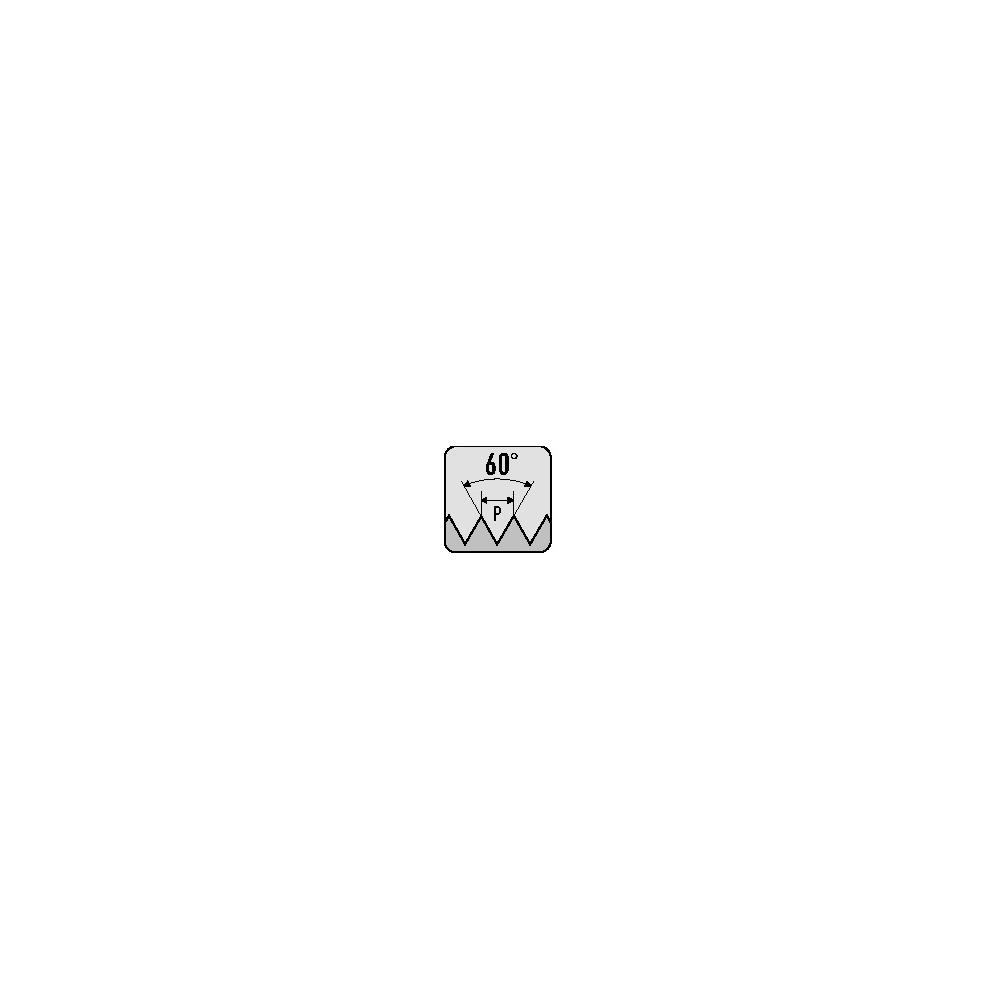

– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range ISO2 (6H)
– For blind hole threads
– For long-chipping, soft materials Further technical information:
– Shank Ø: 14mm
Standard: DIN 376
Nominal thread Ø: M18
Pitch: 2,5 mm
Overall length: 125 mm
Thread length: 30 mm
Square: 11 mm
Core hole Ø: 15,5 mm
Type: AL
Shape: C
Tolerance range: 6H
Cutting material: HSS-Co
Scope of delivery:
1,00 ST Machine tap DIN 376C AL M18 x 2.5 mm HSS-Co 6H
Nominal thread Ø: M18
Pitch: 2,5 mm
Overall length: 125 mm
Thread length: 30 mm
Square: 11 mm
Core hole Ø: 15,5 mm
Type: AL
Shape: C
Tolerance range: 6H
Cutting material: HSS-Co
Scope of delivery:
1,00 ST Machine tap DIN 376C AL M18 x 2.5 mm HSS-Co 6H
