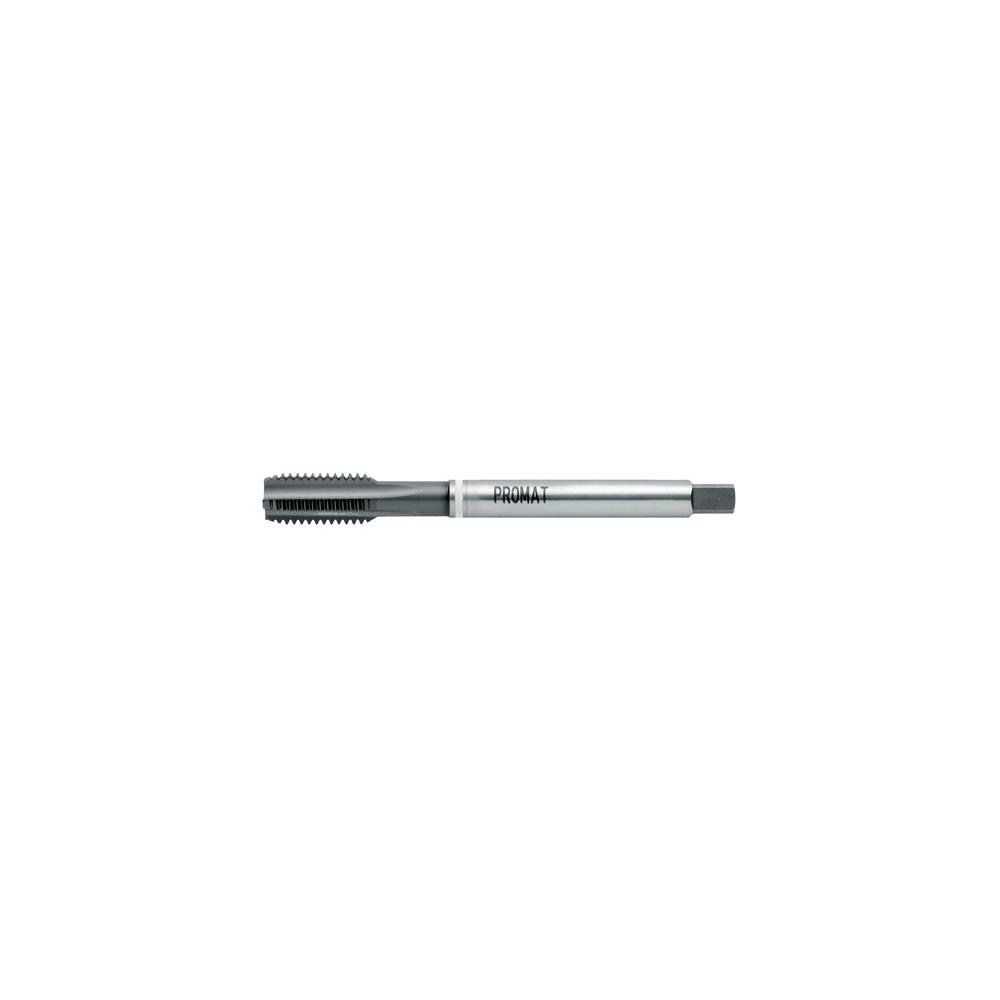

PROMAT Machine tap DIN 376C GG M12 x 1.75 mm HSS-Co TiCN 6HX
Sale ends in:
Machine tap DIN 376C GG M12 x 1.75 mm HSS-Co TiCN 6HX
Machine tap DIN 376C GG M12 x 1.75
PRODUCT DESCRIPTION
HSS-Co
– Shape C
– Type GG
– TiCN-coated
– White ring
– Straight-fluted
– Flanks relief-ground
– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range 6HX

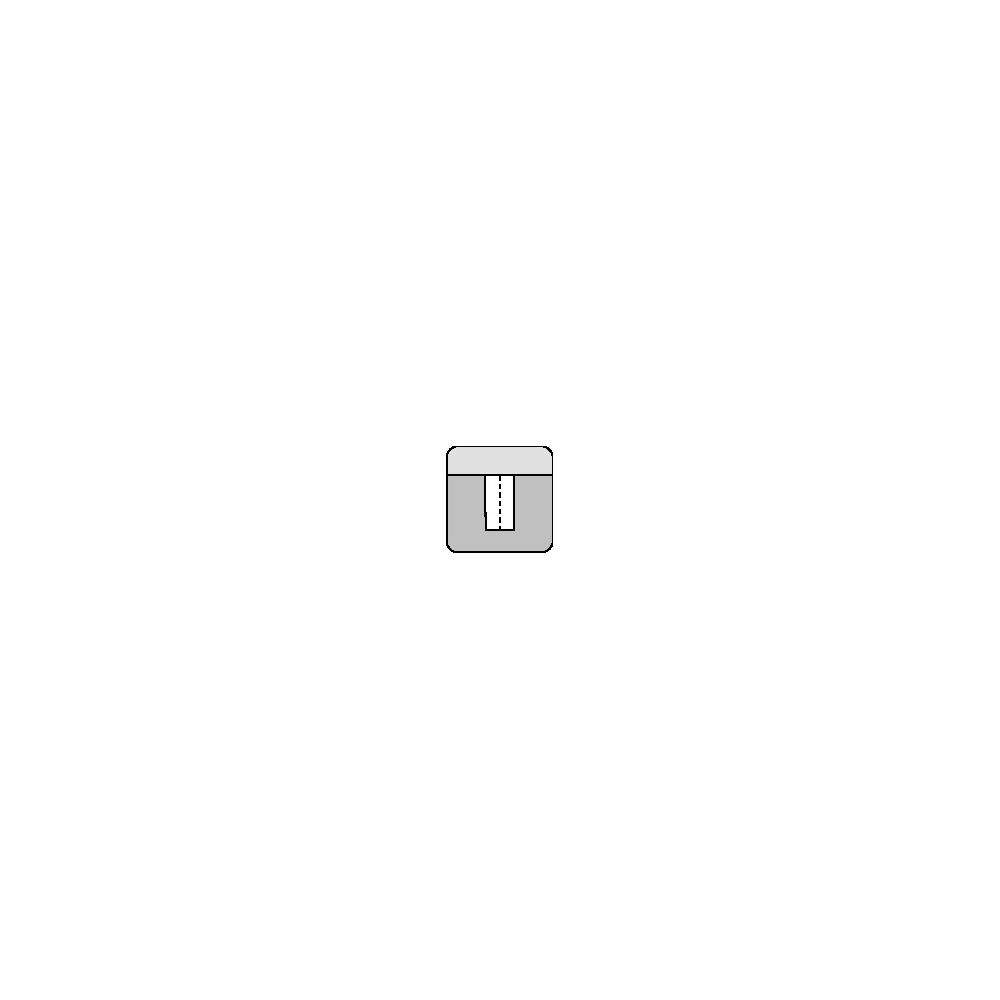

– For through-hole and blind-hole threads
– For grey cast iron, graphite castings, malleable cast iron Further technical information:
– Shank Ø: 9mm
Standard: DIN 376
Nominal thread Ø: M12
Pitch: 1,75 mm
Overall length: 110 mm
Thread length: 28 mm
Square: 7 mm
Core hole Ø: 10,2 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
C
Scope of delivery:
1,00 ST Machine tap DIN 376C GG M12 x 1.75 mm HSS-Co TiCN 6HX
Nominal thread Ø: M12
Pitch: 1,75 mm
Overall length: 110 mm
Thread length: 28 mm
Square: 7 mm
Core hole Ø: 10,2 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
C
Scope of delivery:
1,00 ST Machine tap DIN 376C GG M12 x 1.75 mm HSS-Co TiCN 6HX
