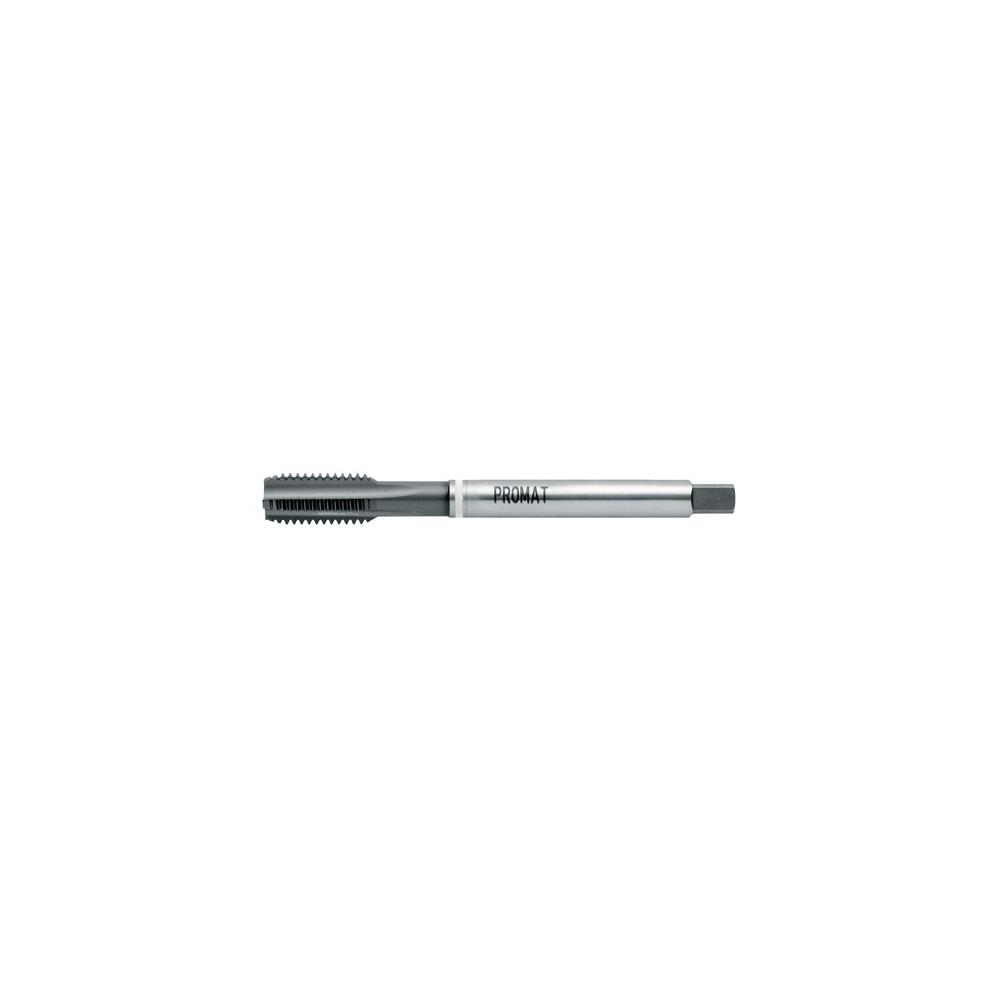

Machine tap DIN 376C GG M14 x 2 mm HSS-Co TiCN 6HX
Machine tap DIN 376C GG M14 x 2
PRODUCT DESCRIPTION
HSS-Co
– Shape C
– Type GG
– TiCN-coated
– White ring
– Straight-fluted
– Flanks relief-ground
– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range 6HX
– For through-hole and blind-hole threads
– For grey cast iron, graphite castings, malleable cast iron Further technical information:
– Shank Ø: 11mm
Standard: DIN 376
Nominal thread Ø: M14
Pitch: 2 mm
Overall length: 110 mm
Thread length: 30 mm
Square: 9 mm
Core hole Ø: 12 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
Cuttin
Scope of delivery:
1,00 ST Machine tap DIN 376C GG M14 x 2 mm HSS-Co TiCN 6HX
Nominal thread Ø: M14
Pitch: 2 mm
Overall length: 110 mm
Thread length: 30 mm
Square: 9 mm
Core hole Ø: 12 mm
Type: GG
Coating: TiCN-coated
Shape: C
Tolerance range: 6HX
Cuttin
Scope of delivery:
1,00 ST Machine tap DIN 376C GG M14 x 2 mm HSS-Co TiCN 6HX
