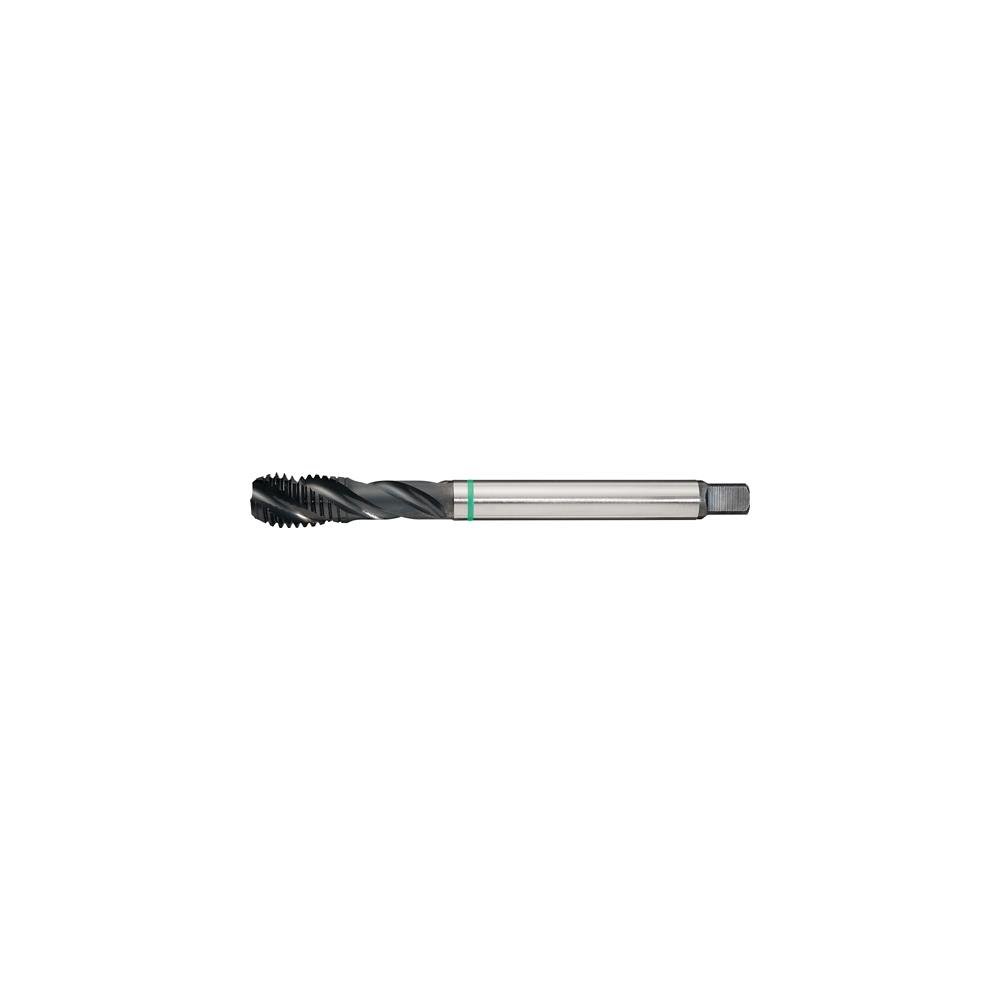

PROMAT Machine tap DIN 5156C UNIVERSAL G 1 inch x 11 HSS-Co vap. ISO 228
Sale ends in:
Machine tap DIN 5156C UNIVERSAL G 1 inch x 11 HSS-Co vap. ISO 228
Machine tap DIN 5156C UNIVERSAL G 1 inch
PRODUCT DESCRIPTION
HSS-Co

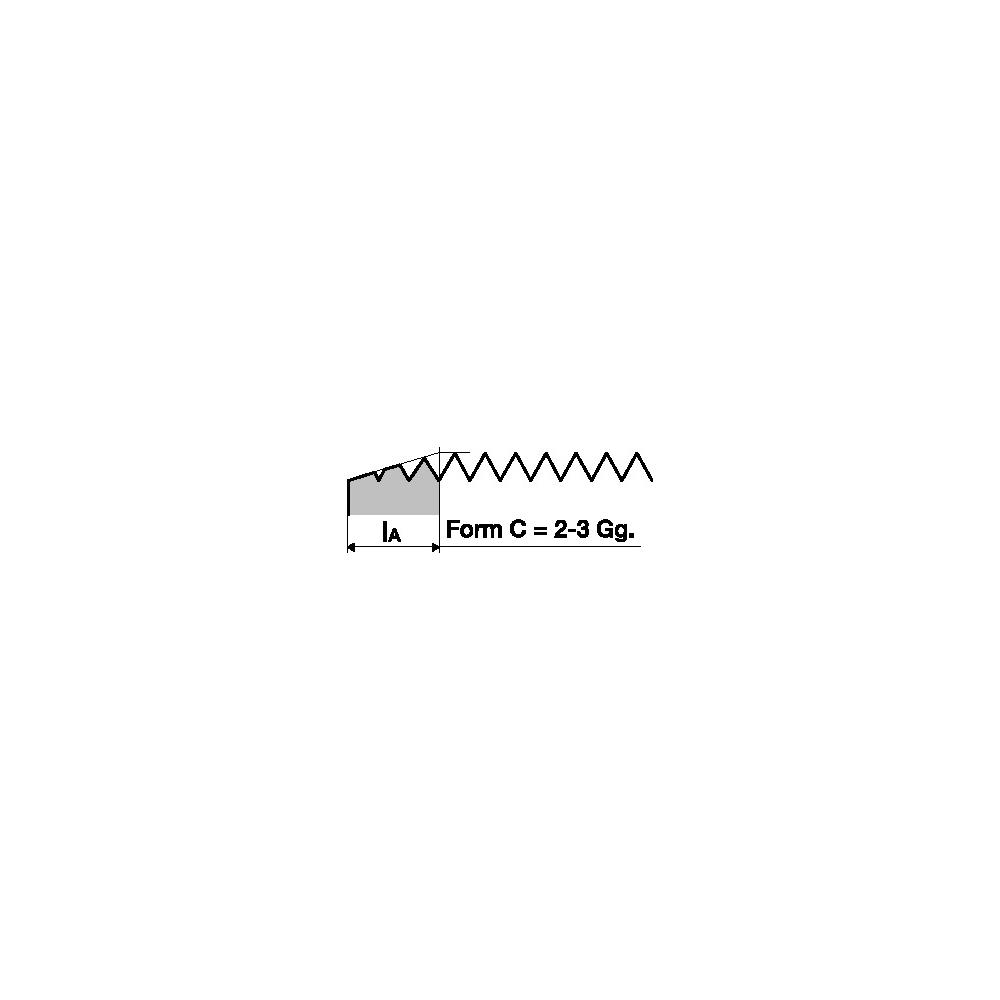

– Shape C
– Type UNIVERSAL
– Steam-tempered
– Green ring
– With 40° right twist
– Flanks relief-ground

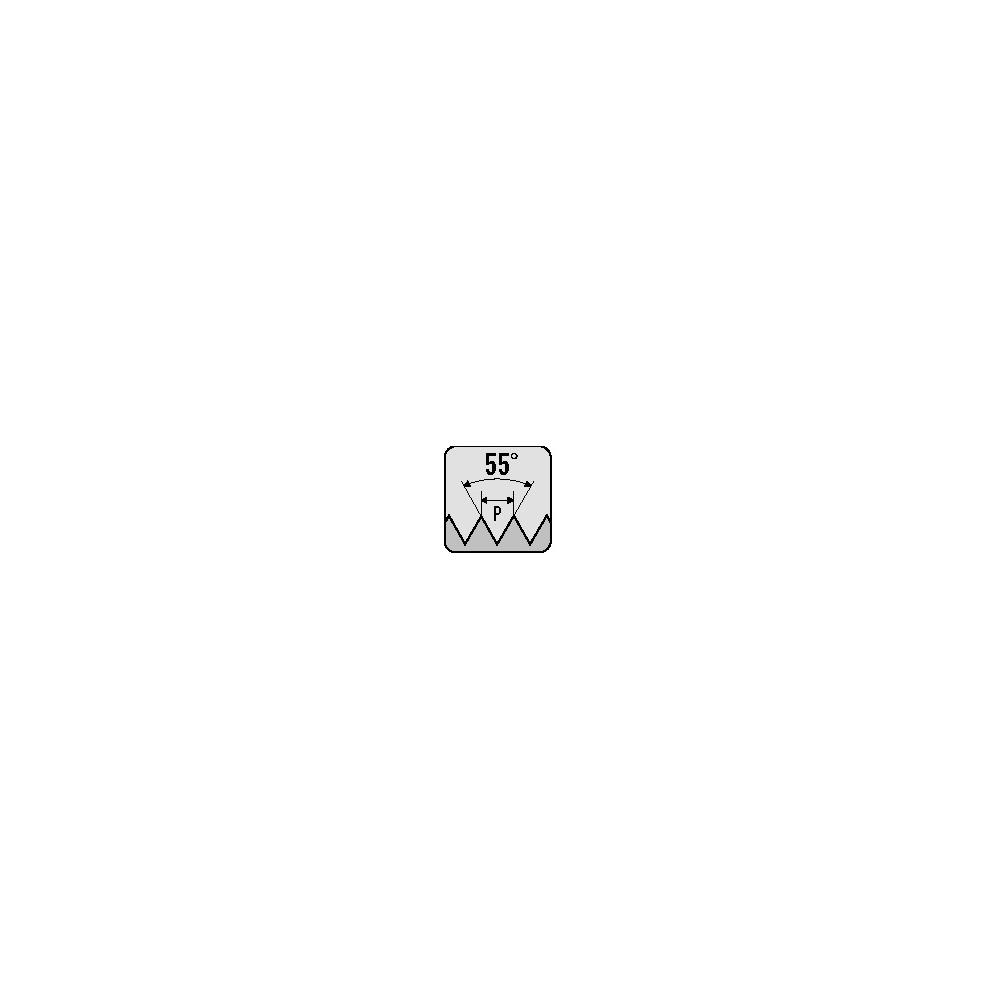

– Whitworth pipe thread G
– In accordance with DIN ISO 228

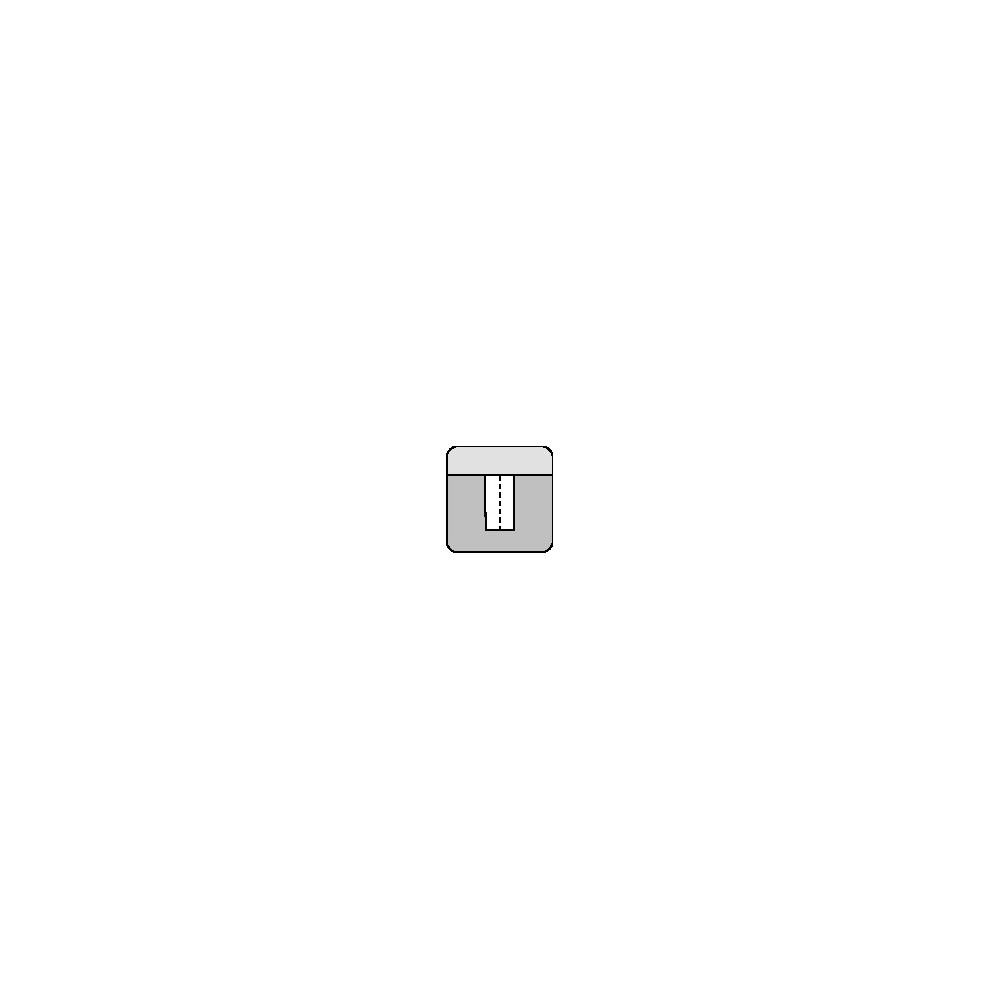

– For blind hole threads
– For steel, rust-free steel, spheroidal cast iron and non-ferrous metals Further technical information:
– Gg/1: 11
– Shank Ø: 25mm
Standard: DIN 5156
Nominal thread Ø: G 1
Overall length: 160 mm
Thread length: 30 mm
Square: 20 mm
Core hole Ø: 28,25 mm
Type: UNIVERSAL
Coating: Steam-tempered
Shape: C
Tolerance range: ISO 228
Scope of delivery:
1,00 ST Machine tap DIN 5156C UNIVERSAL G 1 inch x 11 HSS-Co vap. ISO 228
Nominal thread Ø: G 1
Overall length: 160 mm
Thread length: 30 mm
Square: 20 mm
Core hole Ø: 28,25 mm
Type: UNIVERSAL
Coating: Steam-tempered
Shape: C
Tolerance range: ISO 228
Scope of delivery:
1,00 ST Machine tap DIN 5156C UNIVERSAL G 1 inch x 11 HSS-Co vap. ISO 228
