PROMAT Short machine tap DIN 352 shape B M12 x 1.75 mm HSS-Co ISO2 (6H)
Sale ends in:

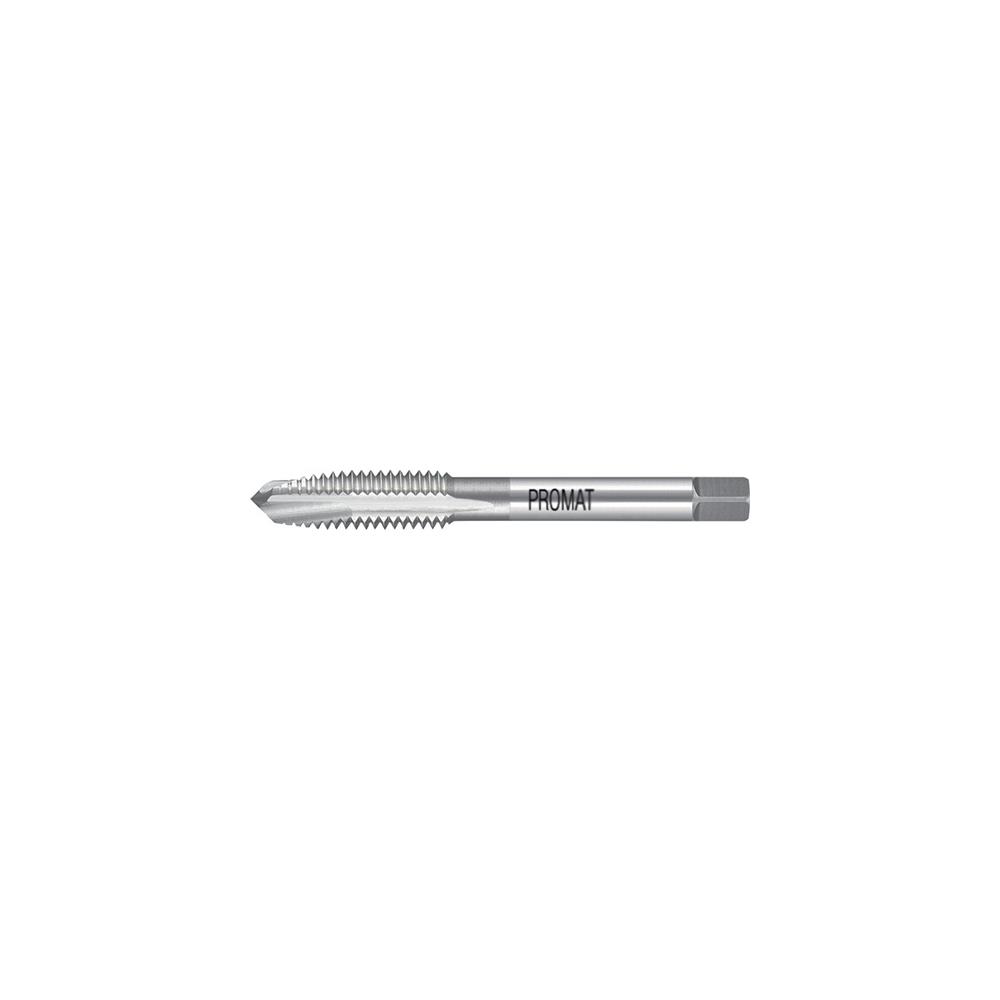

Short machine tap DIN 352 shape B M12 x 1.75 mm HSS-Co ISO2 (6H)
Short machine tap DIN 352 shape B M12
PRODUCT DESCRIPTION
HSS-Co

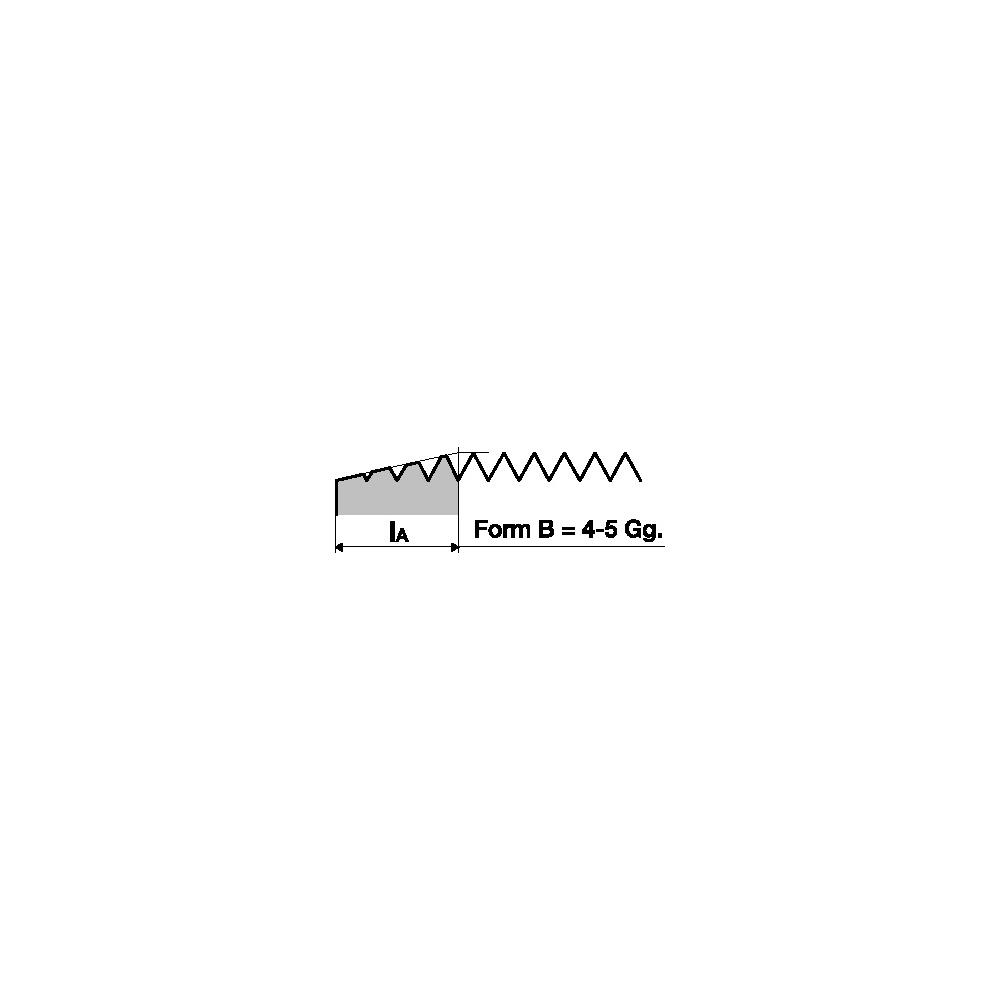

– Shape B
– Straight-fluted
– Flanks relief-ground

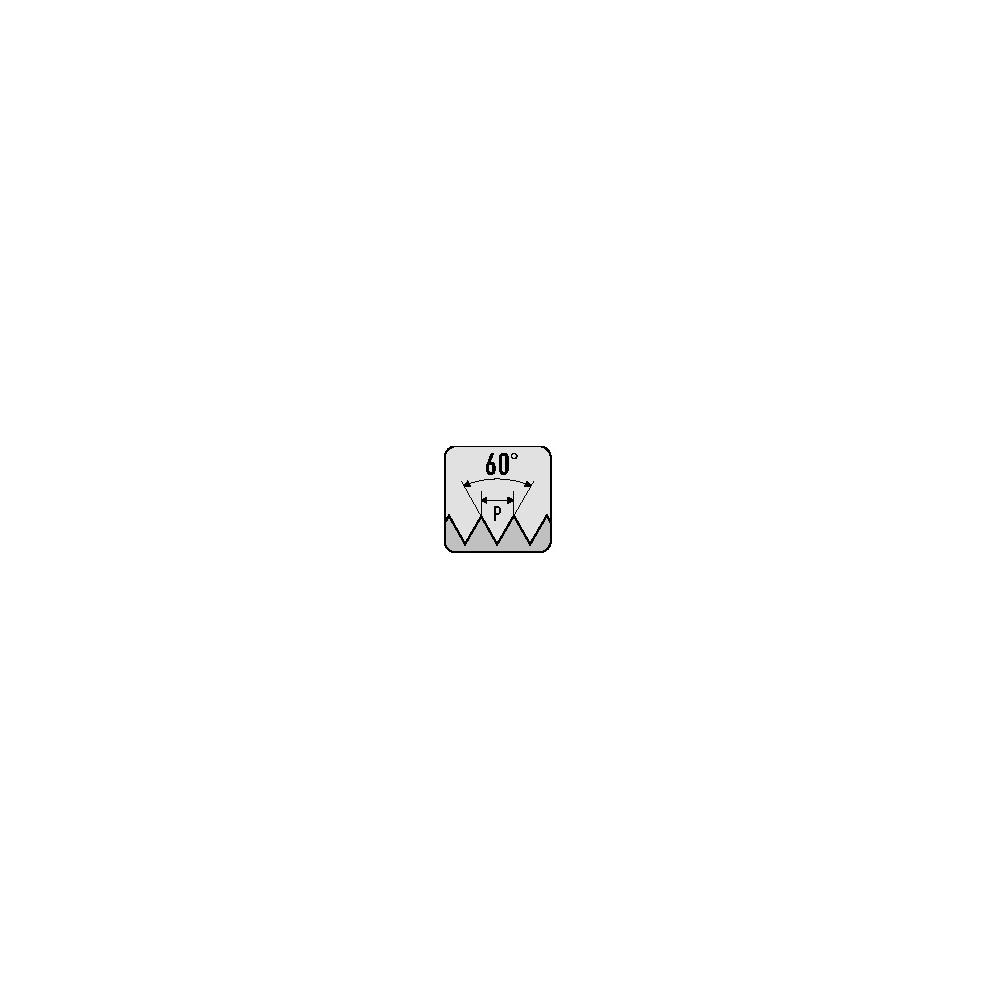

– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range ISO2 (6H)

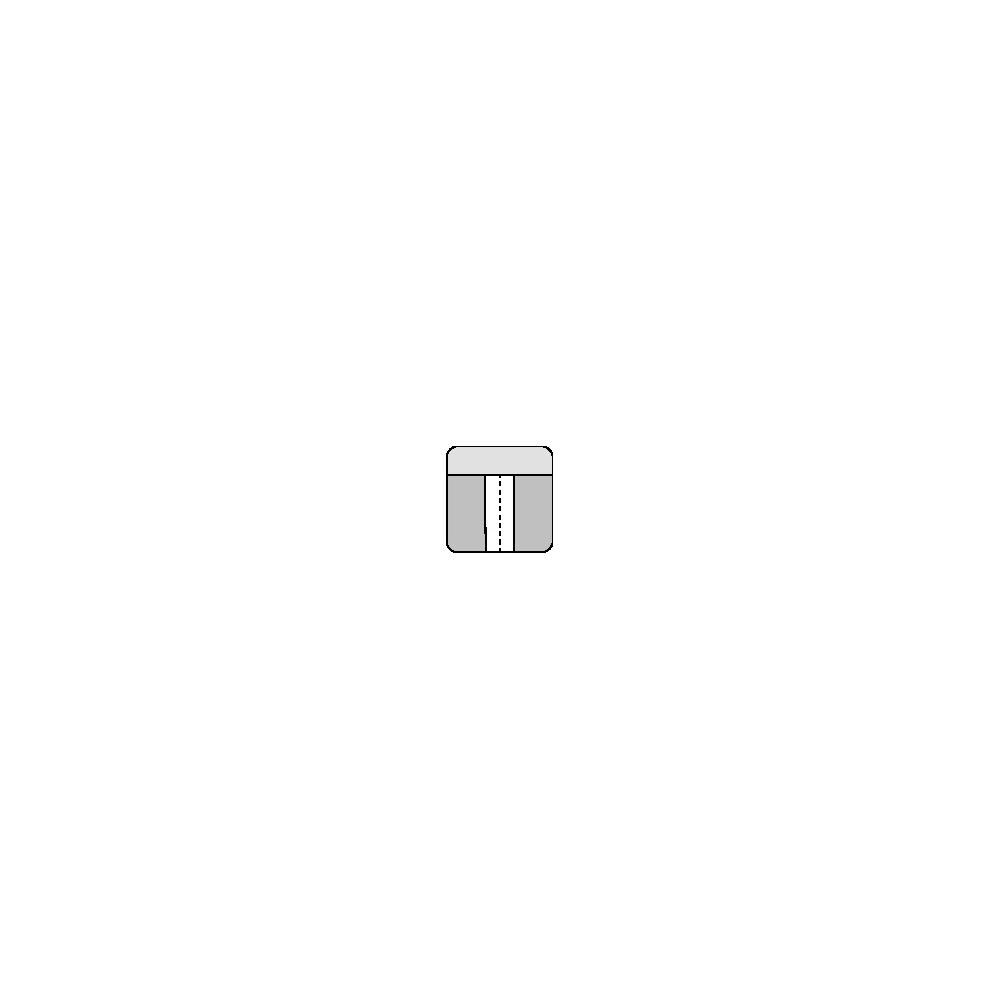

– With spiral point for through-hole threads
– For steels up to approx. 900 N/mm² in strength Further technical information:
– Coating: Uncoated
– Shape: B

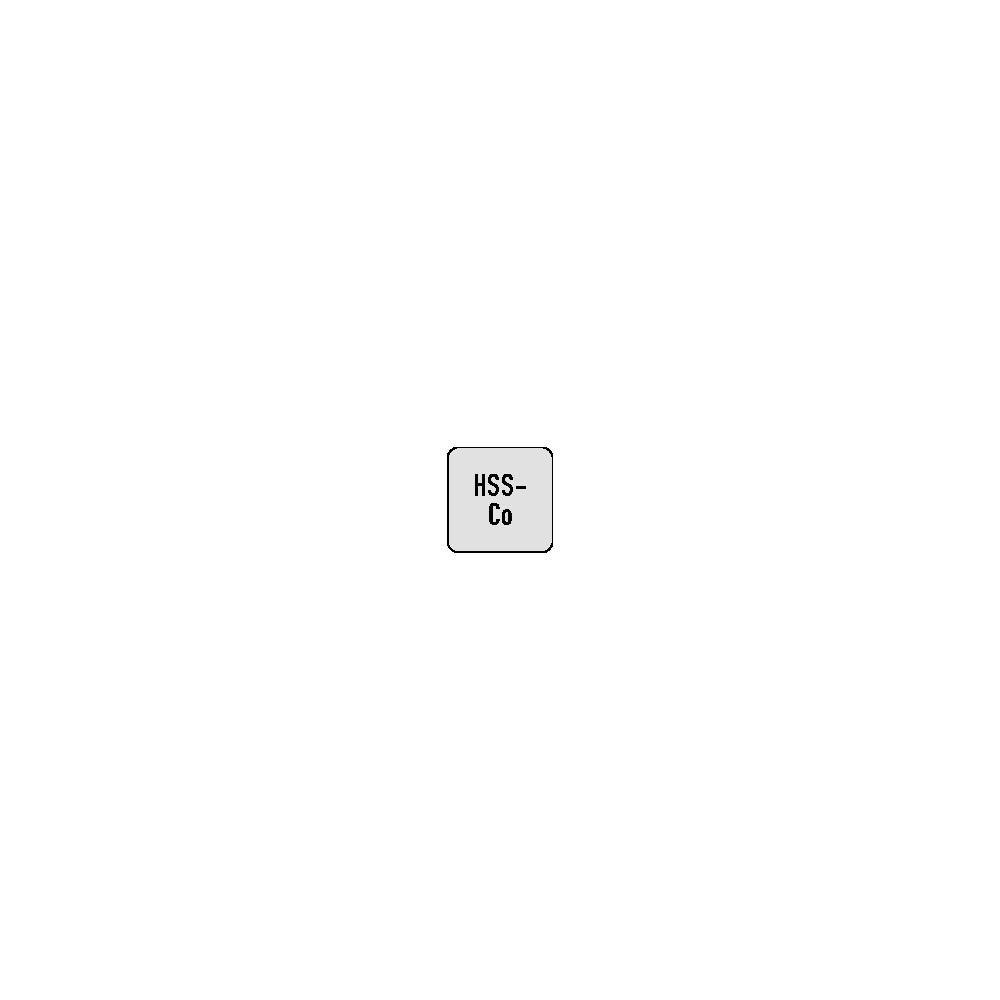

– Cutting material: HSS-Co
Standard: DIN 352
Nominal thread Ø: M12
Pitch: 1,75 mm
Overall length: 75 mm
Thread length: 29 mm
Shank Ø: 9 mm
Square: 7 mm
Core hole Ø: 10,2 mm
Tolerance range: ISO2 (6H)
Type of thread: M
Marke
Scope of delivery:
1,00 ST Short machine tap DIN 352 shape B M12 x 1.75 mm HSS-Co ISO2 (6H)
Nominal thread Ø: M12
Pitch: 1,75 mm
Overall length: 75 mm
Thread length: 29 mm
Shank Ø: 9 mm
Square: 7 mm
Core hole Ø: 10,2 mm
Tolerance range: ISO2 (6H)
Type of thread: M
Marke
Scope of delivery:
1,00 ST Short machine tap DIN 352 shape B M12 x 1.75 mm HSS-Co ISO2 (6H)
