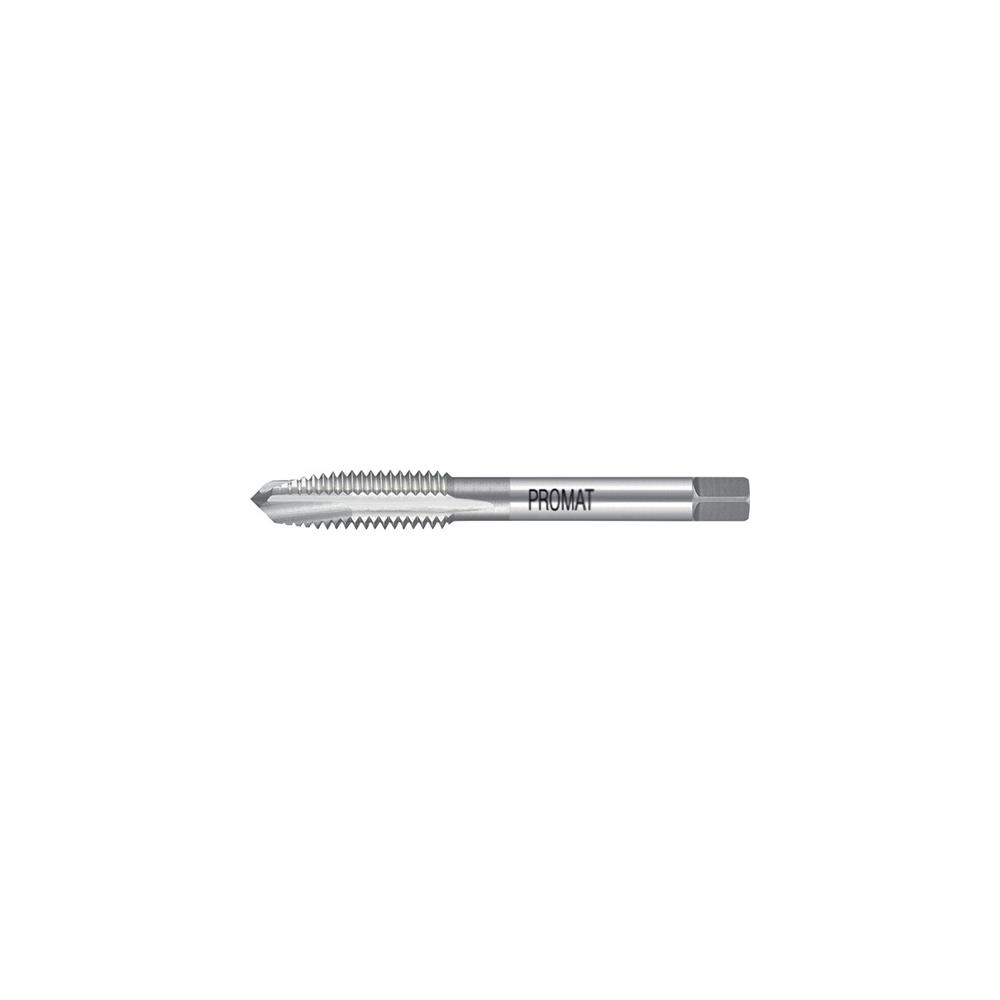

PROMAT Short machine tap DIN 352 shape B M4 x 0.7 mm HSS-Co ISO2 (6H)
Sale ends in:
Short machine tap DIN 352 shape B M4 x 0.7 mm HSS-Co ISO2 (6H)
Short machine tap DIN 352 shape B M4
PRODUCT DESCRIPTION
HSS-Co
– Shape B
– Straight-fluted
– Flanks relief-ground
– Metric ISO thread
– DIN 13 Sheet 1
– Tolerance range ISO2 (6H)
– With spiral point for through-hole threads
– For steels up to approx. 900 N/mm² in strength Further technical information:
– Coating: Uncoated
– Shape: B
– Cutting material: HSS-Co
Standard: DIN 352
Nominal thread Ø: M4
Pitch: 0,7 mm
Overall length: 45 mm
Thread length: 13 mm
Shank Ø: 4.5 mm
Square: 3.4 mm
Core hole Ø: 3,3 mm
Tolerance range: ISO2 (6H)
Type of thread: M
Mark
Scope of delivery:
1,00 ST Short machine tap DIN 352 shape B M4 x 0.7 mm HSS-Co ISO2 (6H)
Nominal thread Ø: M4
Pitch: 0,7 mm
Overall length: 45 mm
Thread length: 13 mm
Shank Ø: 4.5 mm
Square: 3.4 mm
Core hole Ø: 3,3 mm
Tolerance range: ISO2 (6H)
Type of thread: M
Mark
Scope of delivery:
1,00 ST Short machine tap DIN 352 shape B M4 x 0.7 mm HSS-Co ISO2 (6H)
