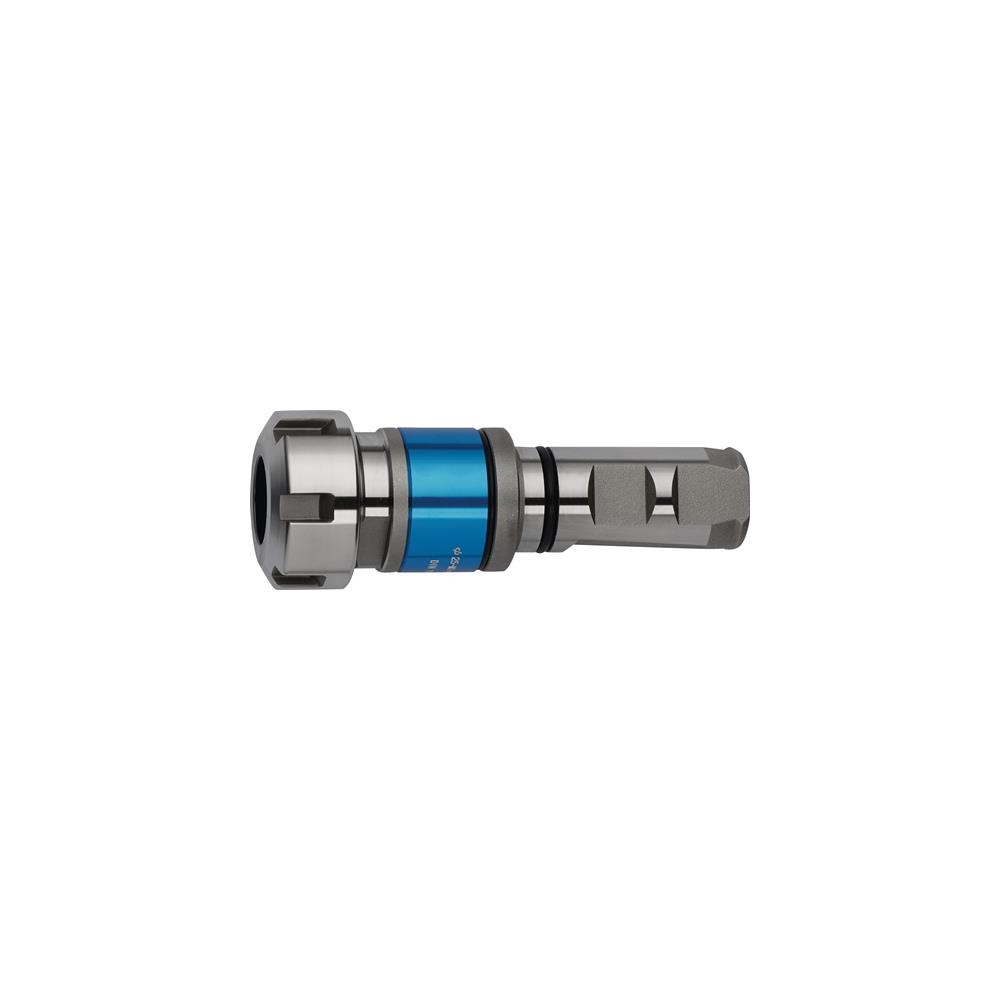

PROMAT Thread cutting chuck synchron. DIN 1835 B+E M4-M27 shank dm 25 mm projecting L 69 mm

With Weldon shank DIN 1835 B+E
– With coolant supply
– For compensating pitch differences of the threading tool and the synchronous spindle
– For use on CNC machines with synchronous thread cutting mechanism
– The chuck can compensate synchronisation errors for pressure and tension (+/- 0.5 mm)
– Use for right- and left-hand thread
– High concentricity
– High clamping force due to the voltage in the tap chucks with integrated square Further technical information:

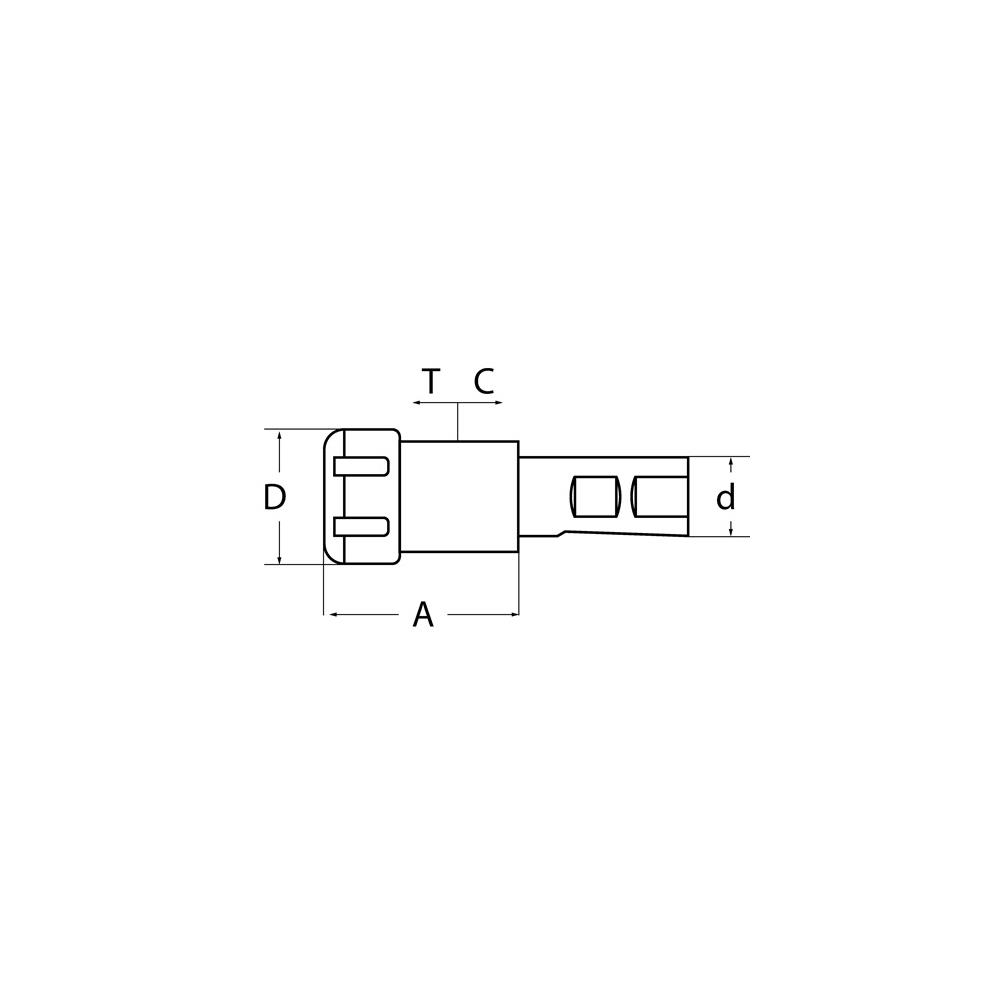

– A: 69mm
– D: 50mm
– Length compensation – / +: 0.5 / 0.5mm
– For thread: For left/right thread
– Standard: DIN 1835 B+E
– External Ø: 50 mm Supplied with clamping nut
