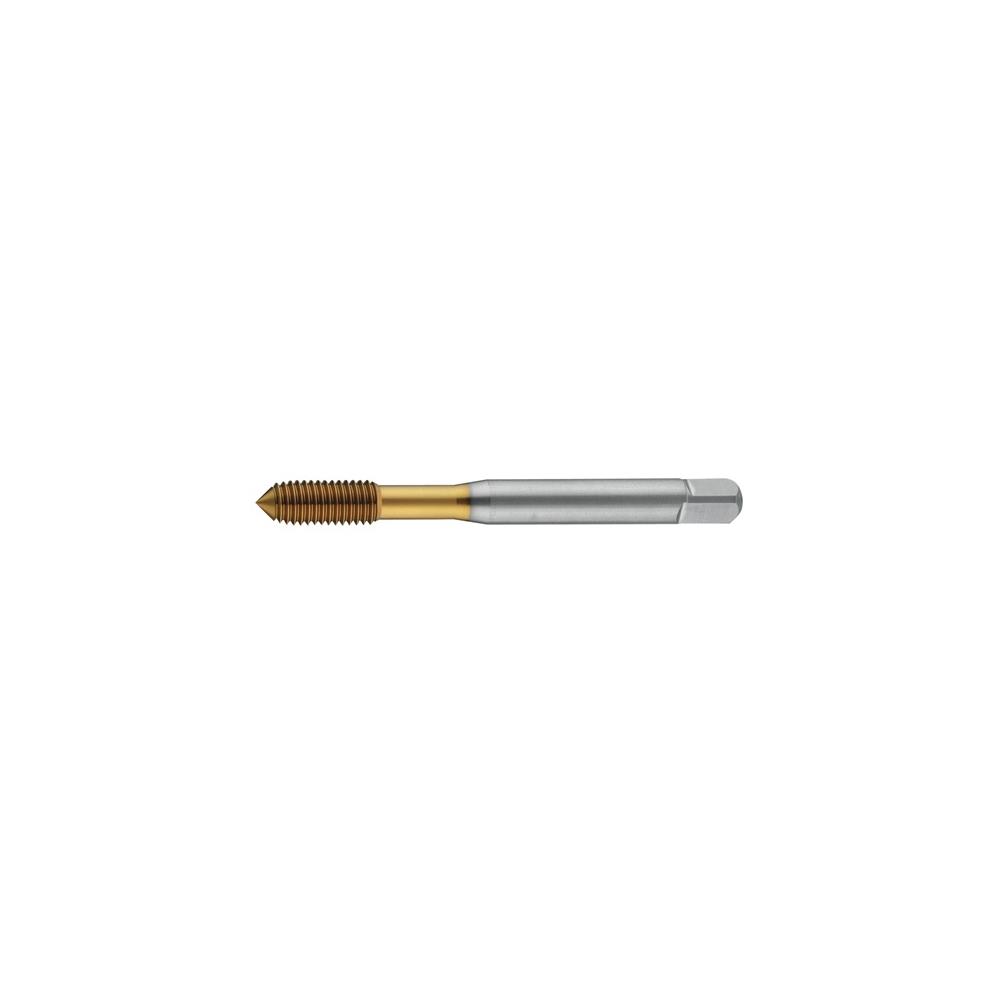

Thread former DIN 2174 (DIN 371) M4 shape C HSS-Co TiN 6HX w/o lubrication grooves
Thread former DIN 2174 (DIN 371) M4 shape
PRODUCT DESCRIPTION
HSS-Co

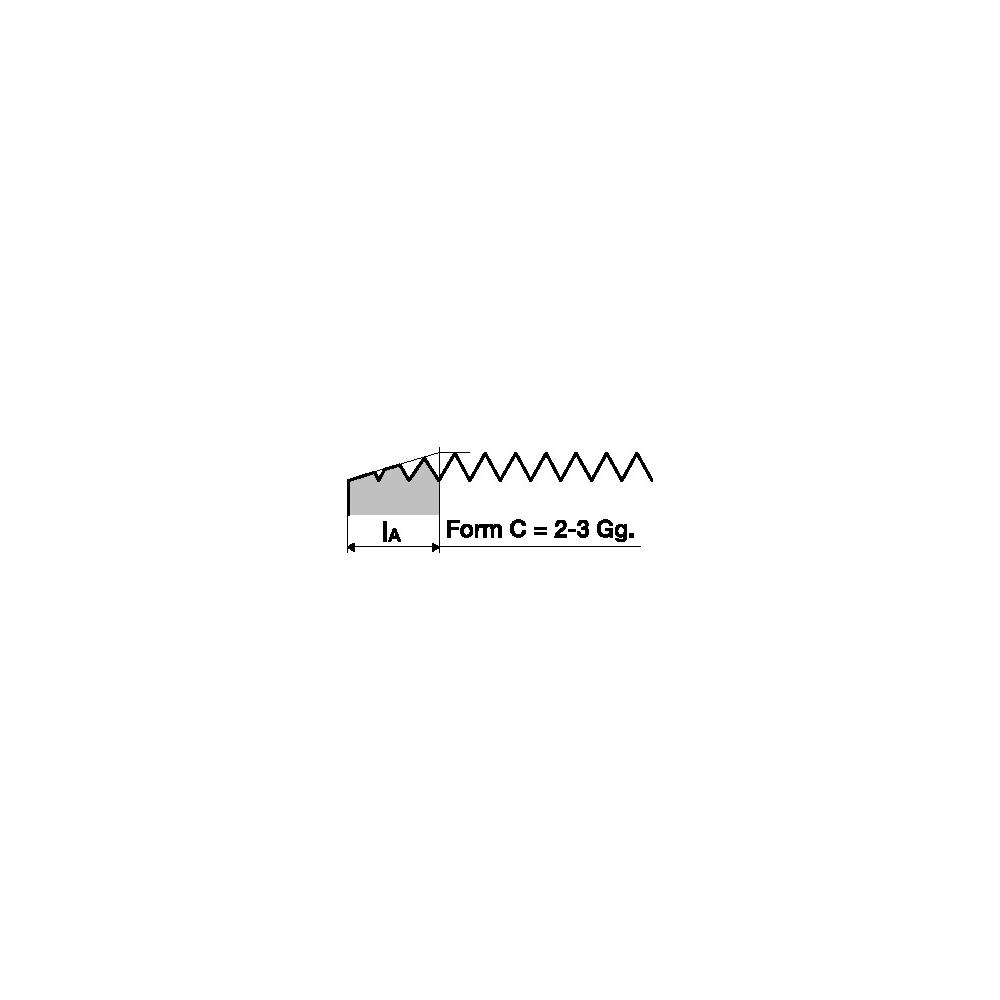

– Shape C
– TiN-coated
– Straight-fluted
– Flanks relief-ground

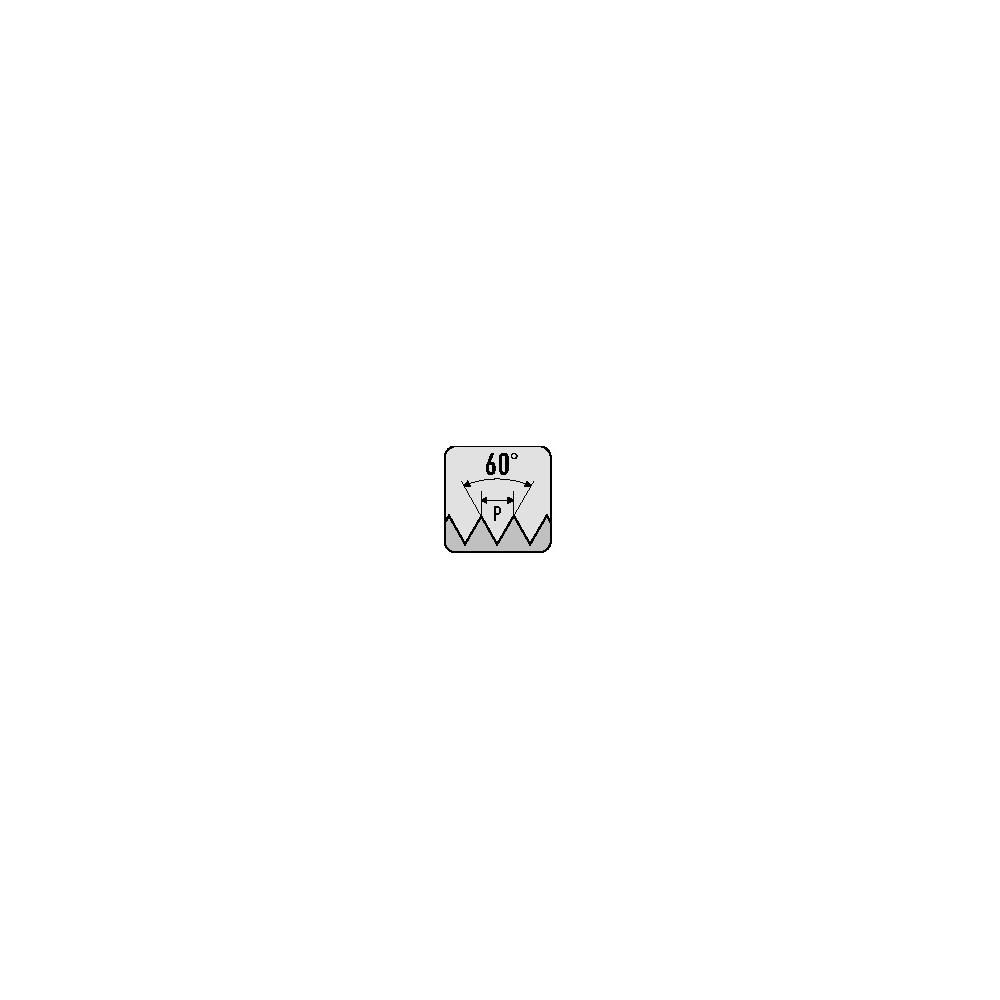

– Metric ISO medium thread
– Tolerance range 6HX

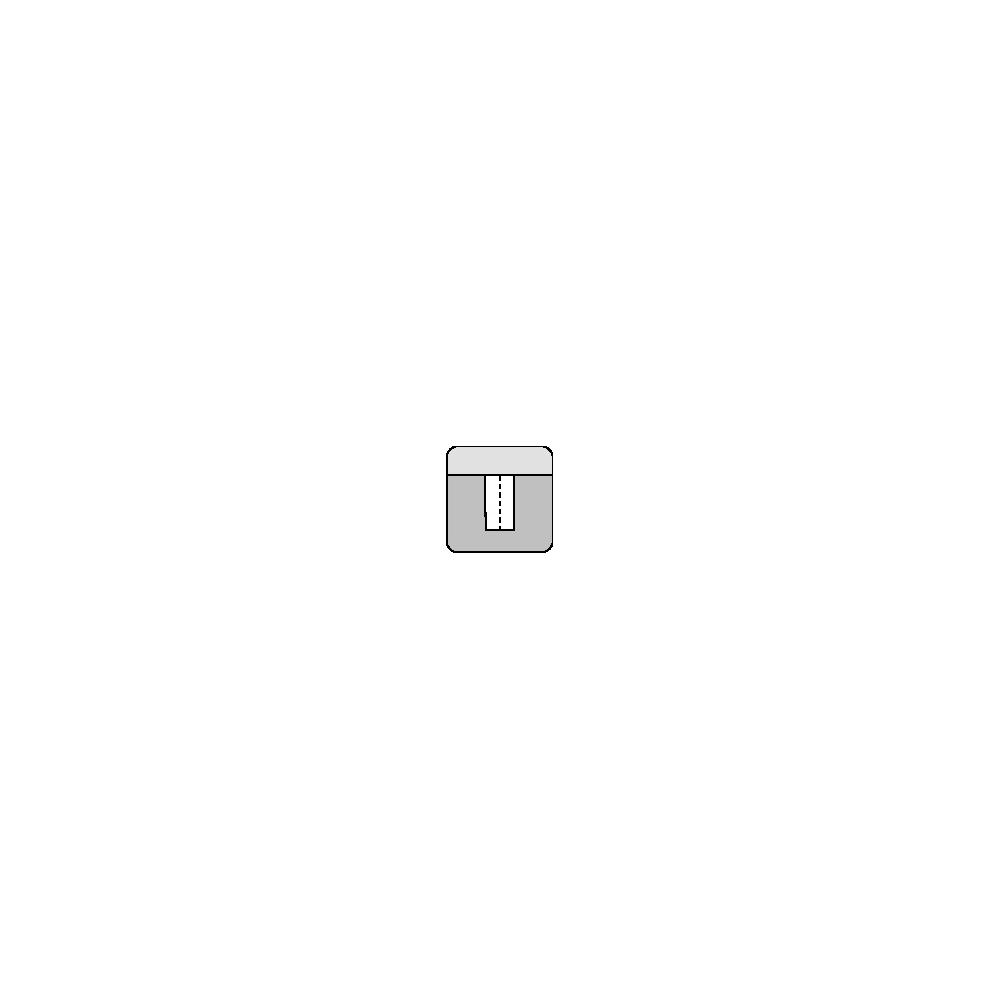

– For through-hole and blind-hole threads
– In materials such as non-ferrous metals and steels with at least 10 % breaking strain Further technical information:
– Thread length: 13mm
– Shank Ø: 4.5mm
Standard: DIN 2174 (DIN 371)
Nominal thread Ø: M4
Pitch: 0,7 mm
Overall length: 63 mm
Square: 3.4 mm
Core hole Ø: 3,7 mm
Coating: TiN-coated
Lubrication grooves: No lubrication grooves
Shape: C
T
Scope of delivery:
1,00 ST Thread former DIN 2174 (DIN 371) M4 shape C HSS-Co TiN 6HX w/o lubrication grooves
Nominal thread Ø: M4
Pitch: 0,7 mm
Overall length: 63 mm
Square: 3.4 mm
Core hole Ø: 3,7 mm
Coating: TiN-coated
Lubrication grooves: No lubrication grooves
Shape: C
T
Scope of delivery:
1,00 ST Thread former DIN 2174 (DIN 371) M4 shape C HSS-Co TiN 6HX w/o lubrication grooves
